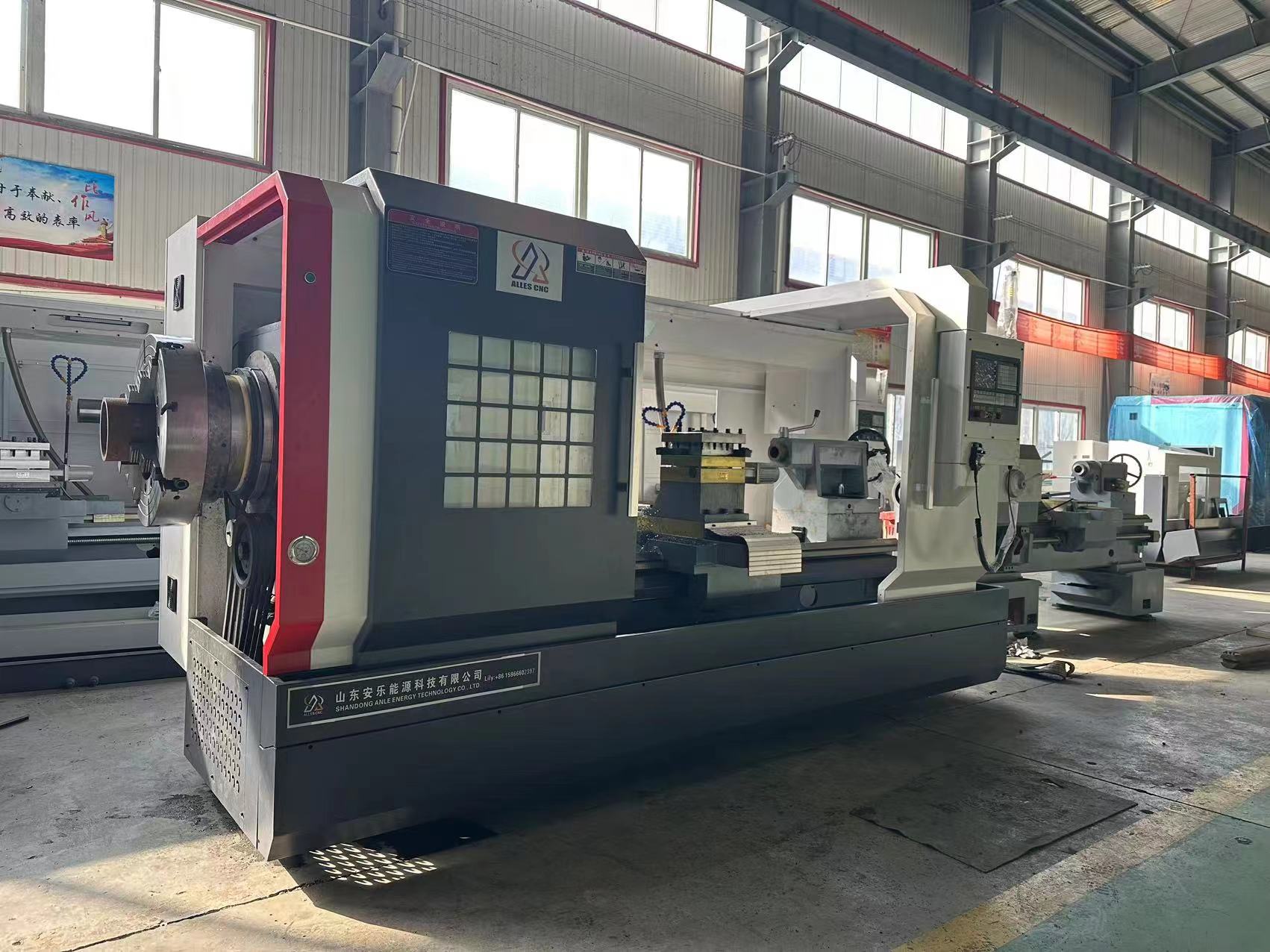

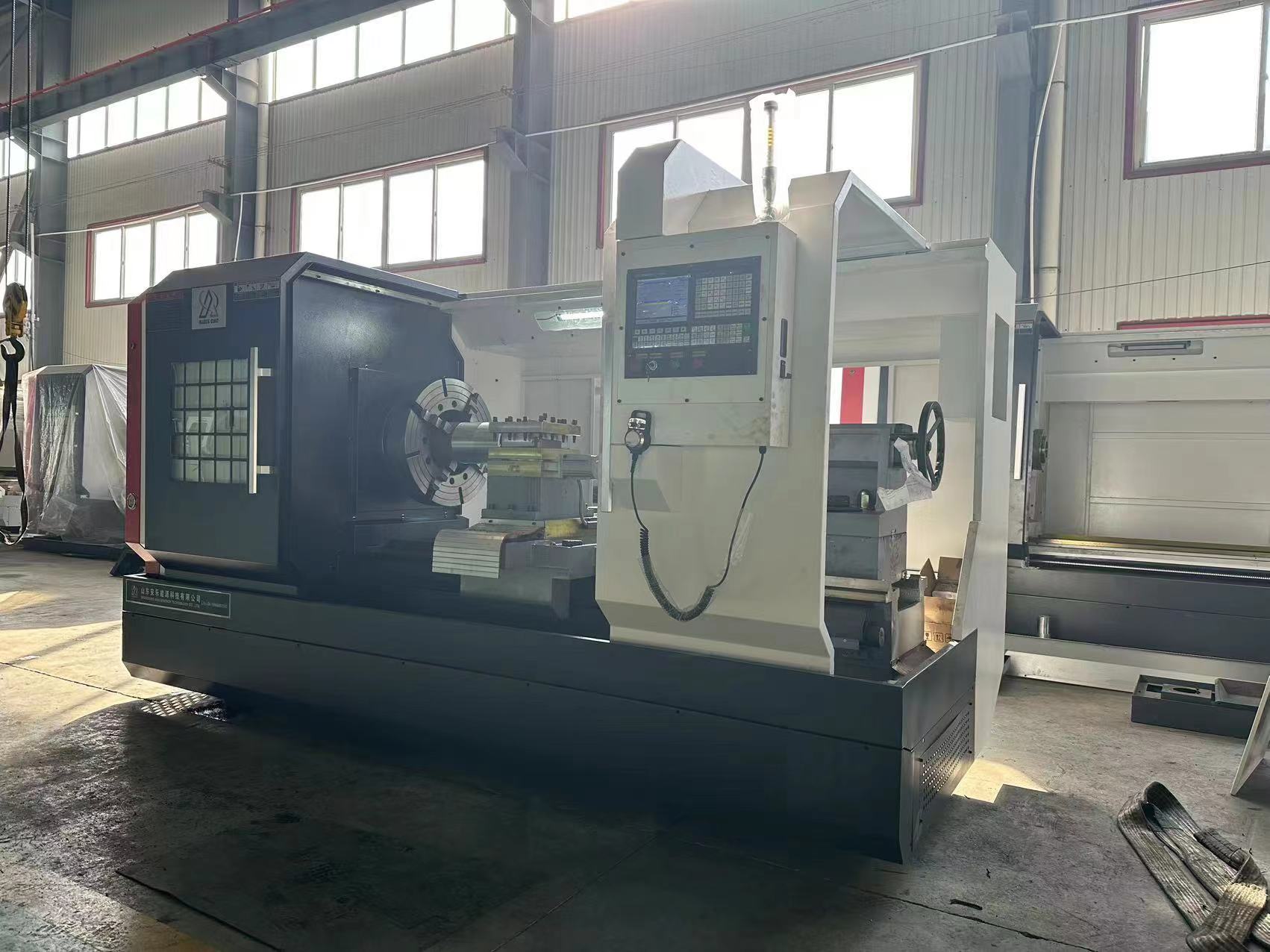

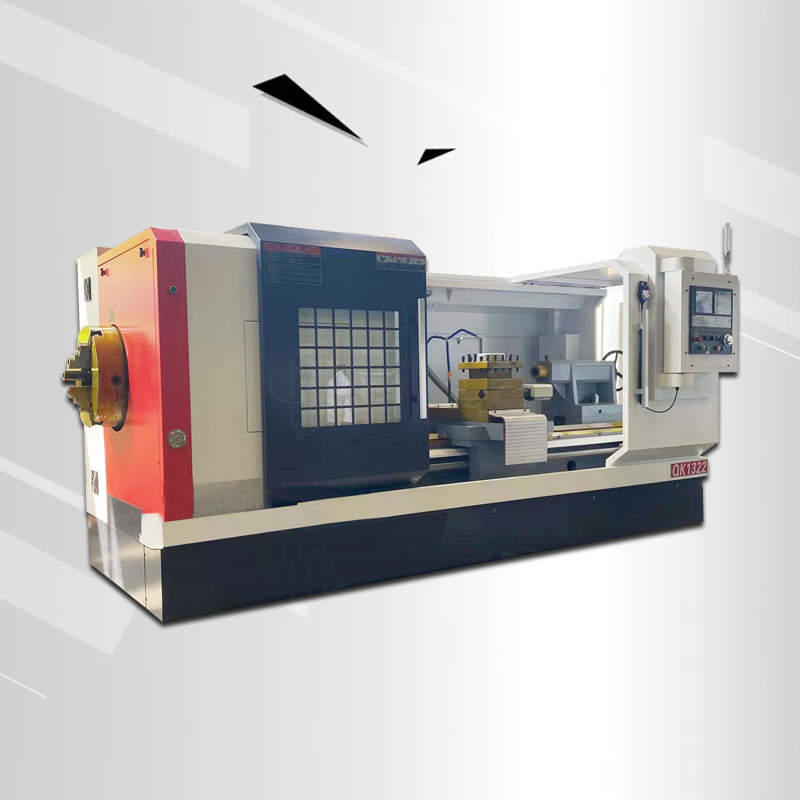

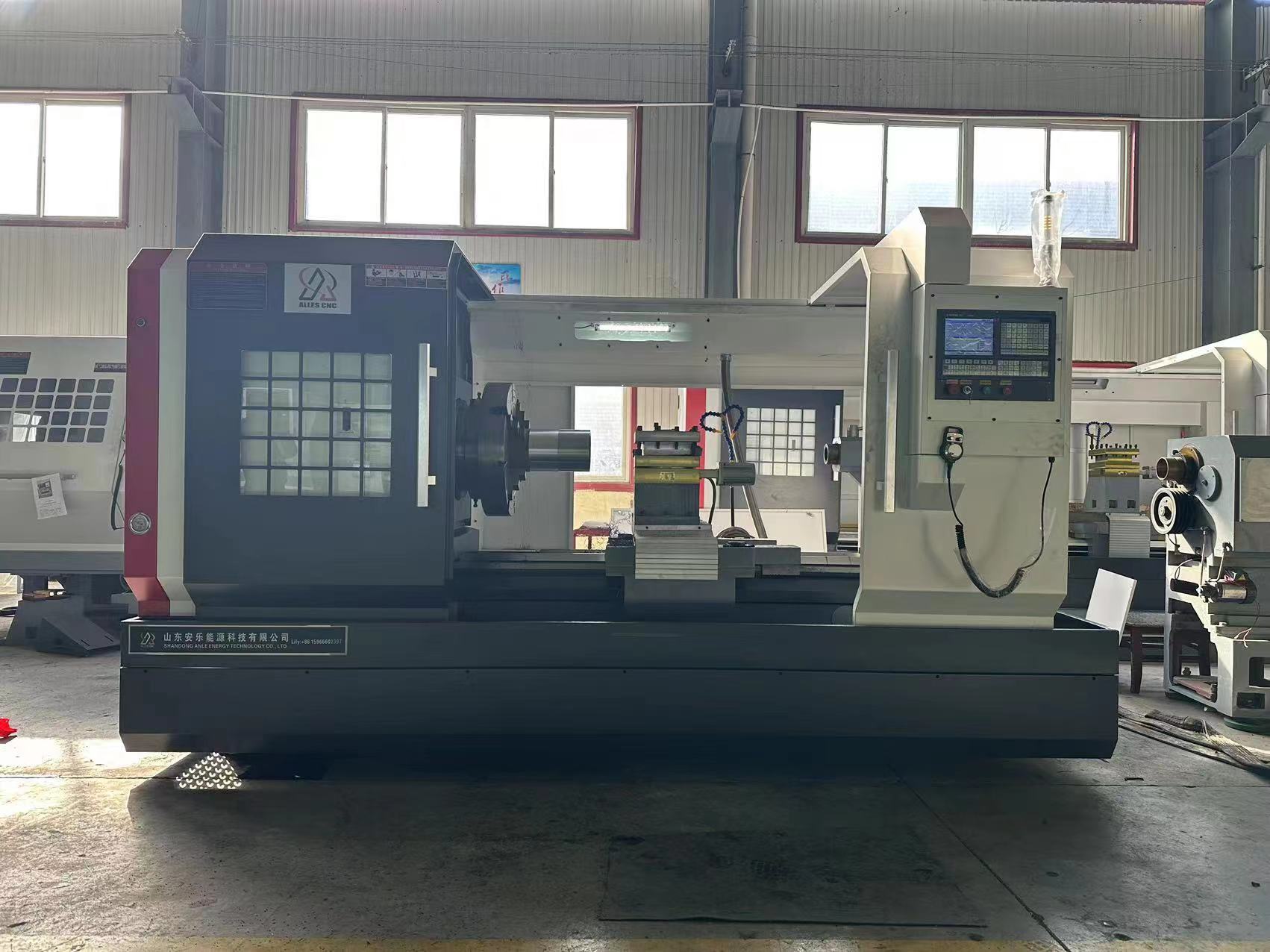

CNC Pipe Threading Lathe QK1322 Series CNC Lathe Tools
CNC Pipe Threading Lathe QK1322 Series CNC Lathe Tools:
Maximum turning diameter of bed: 630mm
Maximum processing length: 1500mm
X/Z axis travel: 350/1500mm
QK1322 CNC pipe thread lathe is widely used in the oil industry to manufacture oil drilling tools, oil pipelines and oil equipment. The CNC lathe can accurately process various threads and pipe joints, including API standard threads, joints, pipes, casings, etc. In the petroleum industry, these pipes and drilling tools are widely used to extract, transport, store and process oil and gas.
The use of QK1322 CNC pipe thread lathe can improve processing efficiency and processing accuracy, reduce manual errors and production costs. In addition, it can adapt to workpieces of different sizes and types, enabling efficient and flexible production.
In general, the QK1322 CNC pipe thread lathe is an important processing equipment in the petroleum industry, providing support for the development and production of the petroleum industry.
Product Specifications:
| Project | Content | Unit | QK1322x1500 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | mm | Φ330 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ330 | |
| Spindle | Chuck | / | Front and rear 500 four claws |
| Spindle head form | / | D11 | |
| Spindle through hole diameter | mm | Φ220 | |
| feed | X/Z axis travel | mm | 350/1500 |
| X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
| X/Z rapid traverse speed | m/min | 4/6 | |
| Tool | Tool holder form | / | tool holder |
| Number of stations | / | 4 | |
| Tool Specifications: Turning/Boring | mm | 32/40 | |
| tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Sleeve inner hole taper | / | MT6 | |
| motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Others | Battery capacity | KVA | 15 |
| Machine weight | kg | 4200 | |
| Machine tool dimensions: length × width × height | mm | 3750/1830/1900 |
CNC pipe thread lathe is an advanced CNC machine tool with the advantages of high precision, high efficiency and high automation.
It can be applied to the processing of various materials and is one of the indispensable and important equipment in modern manufacturing industry.
