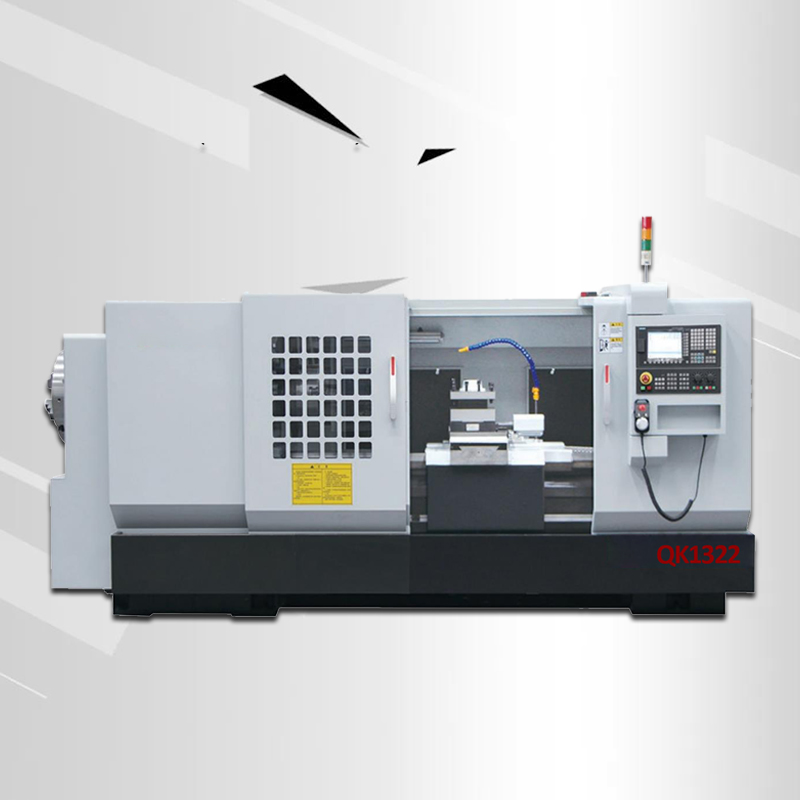

Flat bed Automatic QK1322 Pipe Thread CNC Pipe threading lathe
Flat bed Automatic QK1322 Pipe Thread CNC Pipe threading lathe:
Maximum processing length: 1500mm
Maximum machining diameter: Φ630mm
Maximum bar diameter: Φ330mm
Machine tool dimensions: length × width × height: 3750x1830x1900mm
The QK1322 machine is a full-featured CNC normal precision lathe designed and engineered using foreign advanced technology.
The design and controls are developed taking into account the requirements of ergonomics: it is convenient and easy to operate, easy to repair.
Product Advantage:
This QK1322 pipe thread lathe machine is designed to perform turning operations with large allowance removal, including roughing of cast iron castings. Its main purpose is roughing and semi-finishing turning of large parts. The machine can process both short workpieces and long workpieces up to 1500 mm. depending on the chosen RMC. Axial movements take place on high-precision sliding guides, hardened by HDTV and coated with Turicite B. They have high rigidity and allow turning with the removal of large allowances. With the appropriate software (CAD / CAM systems) - the key to the effective operation of CNC machines - reconfiguring the machine by a process engineer takes minimal time. You just need to change the program, which reduces the complexity of changeover by 80-90% compared to the complexity of this operation on manual machines and ensures the individuality of any complex part.
Product Specifications:
| Project | Content | Unit | QK1322 |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | mm | Φ330 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ330 | |
| Spindle | Chuck | / | Front and rear 500 four claws |
| Spindle head form | / | D11 | |
| Spindle through hole diameter | mm | Φ220 | |
| Spindle bore taper | / | 1:20 | |
| Spindle series | / | Manual second gear | |
| Spindle speed range | r/min | 25-89/108-382 | |
| feed | X/Z axis travel | mm | 350/1500 |
| X/Z rapid traverse speed | m/min | 4/6 | |
| Tool | Tool holder form | / | Tool holder |
| Number of stations | / | 4 | |
| Tool Specifications: Turning/Boring | mm | 32/40 | |
| tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Sleeve inner hole taper | / | MT6 | |
| Sleeve drive form | / | manual | |
| Tailstock body movement form | / | manual | |
| motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Others | Machine weight | kg | 4200 |
| Machine tool dimensions: length × width × height | mm | 3750/1830/1900 |
