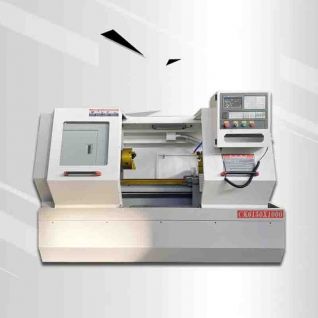

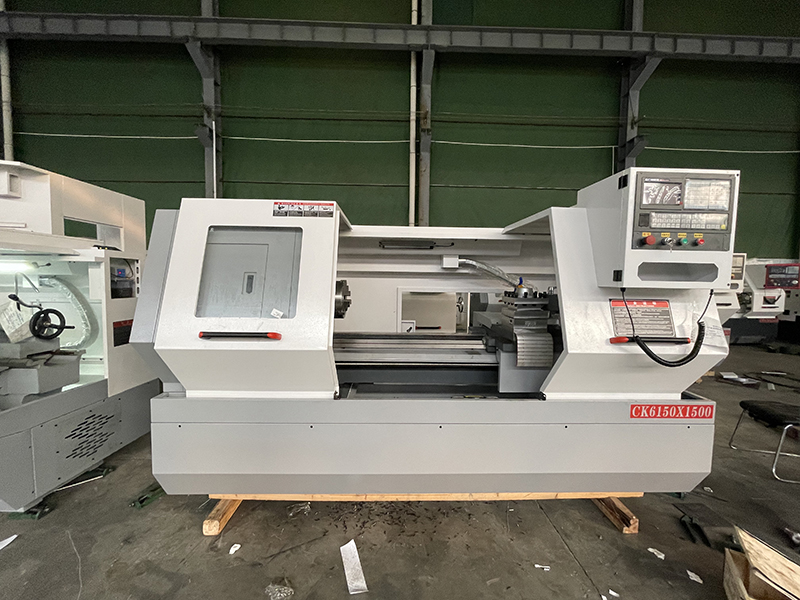

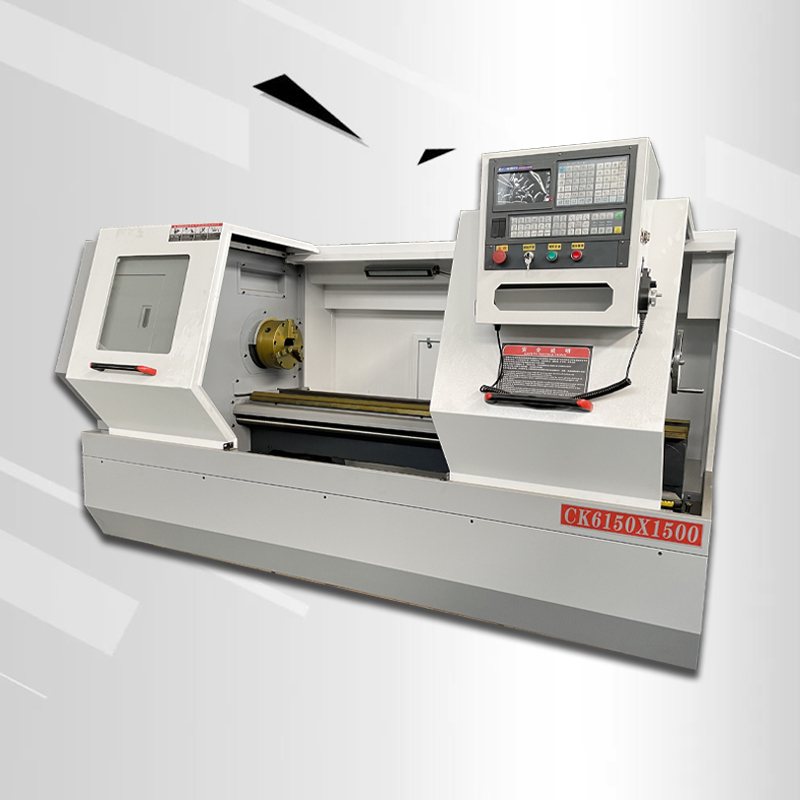

CNC lathe CK6150X1500
Efficient lathe for a wide range of applications for series and small series production. The machine has the functions of turning external surfaces, internal, spherical surfaces and threading. Used in canned cycle control for conventional and cross turning, taper turning and threading.
One-piece cast bed (without bolted connections), provides maximum rigidity.
The distance between the guides is 400 mm, unlike most analogues.
Power of the servomotor of the engine is 11/15 kW, unlike the majority of analogs.
Direct drive of the ball screw from the engine through the clutch (lack of belt drive).
The accuracy of workpiece processing complies with the official standards adopted for the processing of Grade IT6 IT7 materials. The roughness during finishing the surface of workpieces on the machine is Ra0.8. The maximum workpiece weight between two centers should not exceed 150 kg, and the spindle speed should not exceed 45 rpm.
Product Specifications:
| Item | Unit | CK6150x1500 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1500 |
| X/Z axis maximum stroke | mm | 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | F82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
Product Advantages:
1.ALHAAS CNC CK6150F CNC lathe, It has the characteristics of high precision, high speed and high rigidity. It is convenient and easy to operate, and the built-in protection keeps the environment clean.
2. The ALHAAS CNC flat bed is molded from resin sand in one piece. The specially expanded guide rail has gone through several heat treatment processes such as aging and high frequency hardening, which can maintain the best mechanical and processing accuracy for a long time.
3. The ALHAAS CNC CNC turning center adopts high-precision ball screw shaft, and the bearing adopts high-quality specific angular contact ball bearing, which is connected to the servo motor through an elastic coupling, and has the advantages of high transmission accuracy and long service life.
4. The CNC lathe machine is equipped with a servo-spindle motor, which can realize stepless speed change and meet different workpiece processing speed requirements to optimize processing performance and cutting performance.
