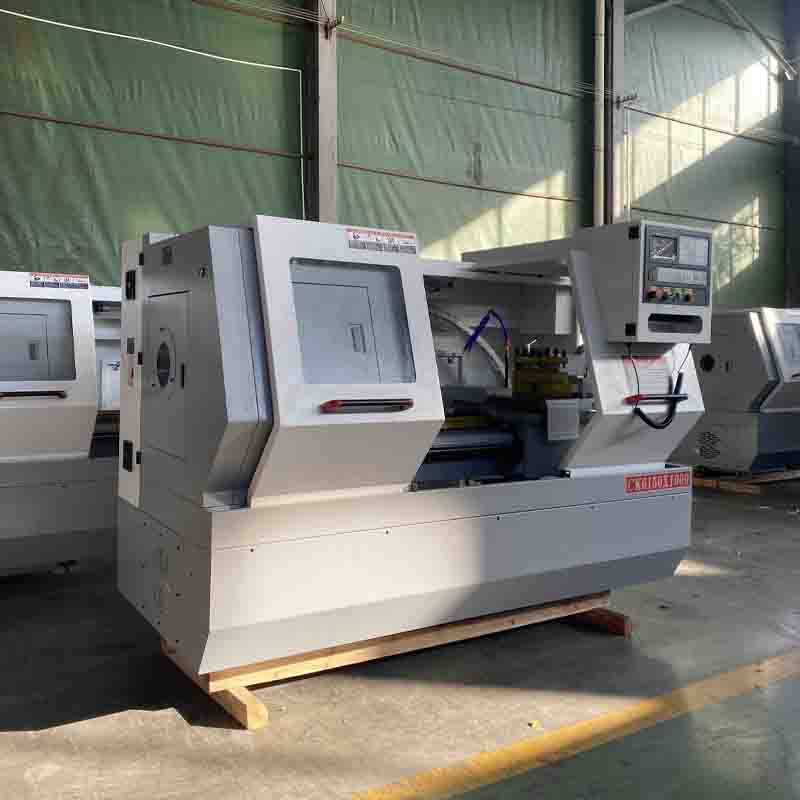

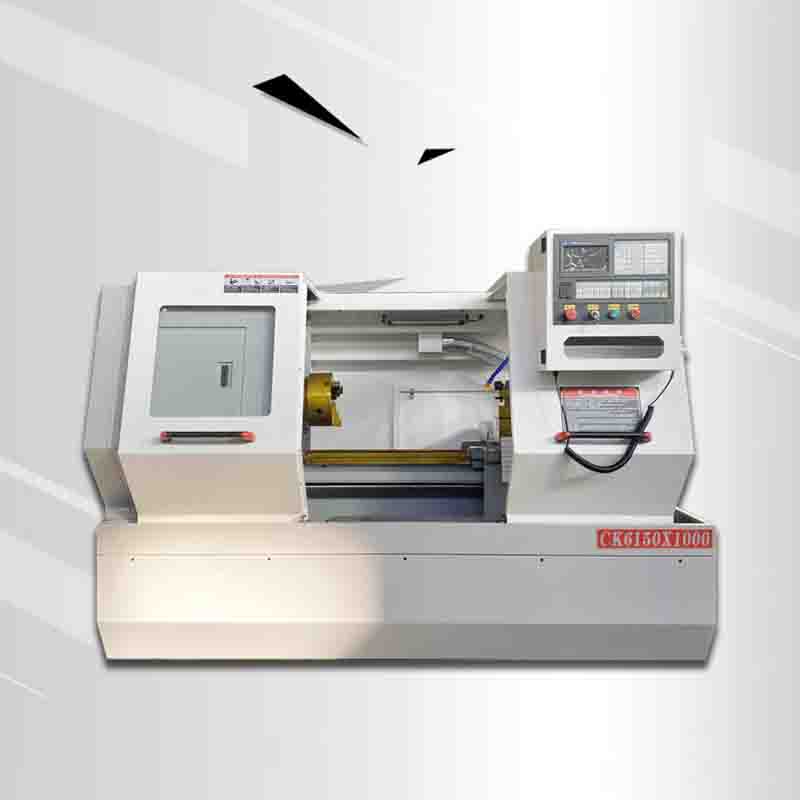

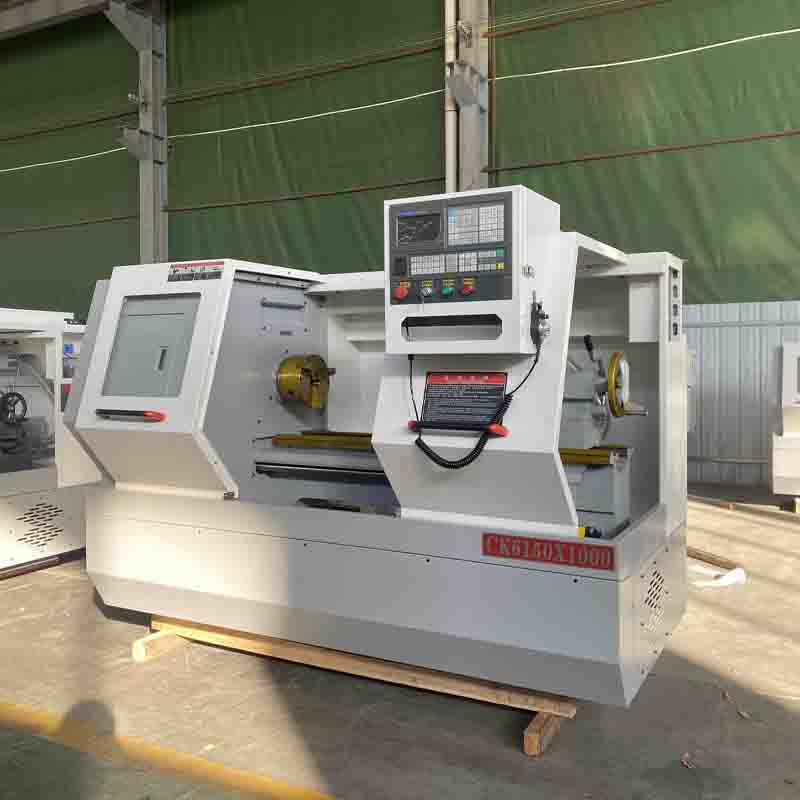

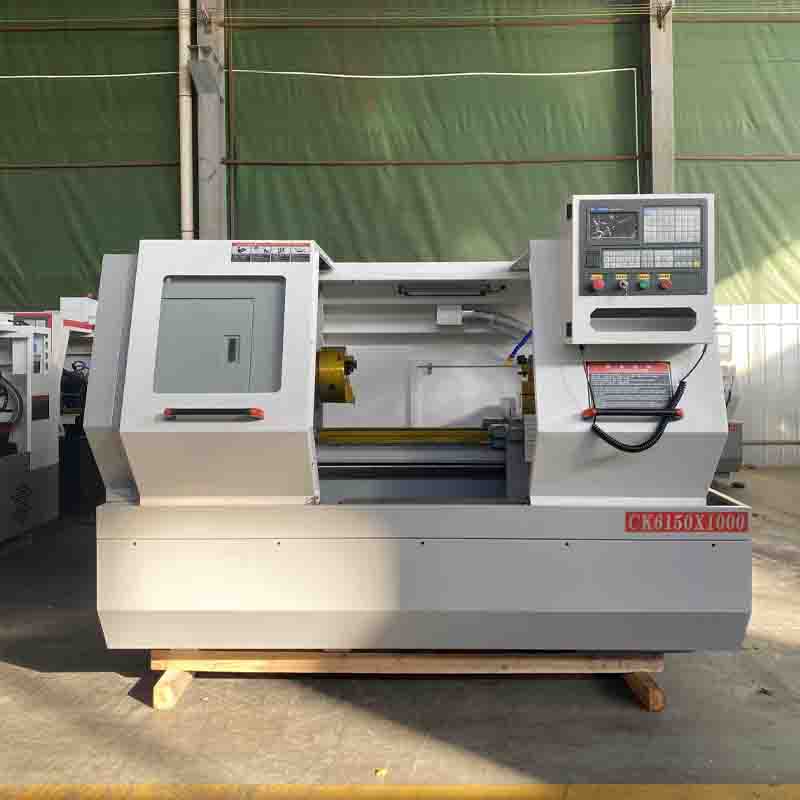

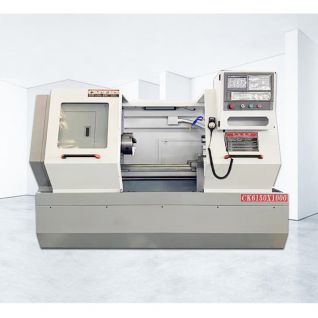

Horizontal Turning Lathe CK6150 Flat Bed CNC Lathe Machine
Max swing over bed: Φ500mm
Maximum swing over slide: 290mm
Maximum cutting diameter: Φ500mm
Maximum processing length: 1000mm
The ALHAAS CNC horizontal turning lathe CK6150 lathe is designed to perform a wide range of operations, such as automatic processing of internal and external cylindrical, cone-shaped or corner surfaces, surfaces of rotation, for trimming ends; in addition, metric, inch, modular and diametrical pitch threads can be cut on the machine. The machine can also be used for cutting grooves, grooves and drilling holes. This equipment allows you to process products from materials such as steel, cast iron and non-ferrous metals.
Product Specifications:
| Item | Unit | CK6150x1000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool holder type | / | 4-station tool holder |
| Weight | kg | 2500 |
| Machine size | mm | 3030*1600*2050 |
CK6150 Flat Bed CNC Lathe Peculiarities:
Large diameter spindle bore.
High-quality cast base and bed.
High torque and speed.
Reinforced guides.
Good for processing long parts.
Centralized lubrication system.
CK6150 Flat Bed CNC Lathe Standard equipment:
3-jaw chuck or collet.
4-position tool holder.
Manual tailstock.
Central clutch.
Automatic lubrication system.
Automatic coolant supply system.
