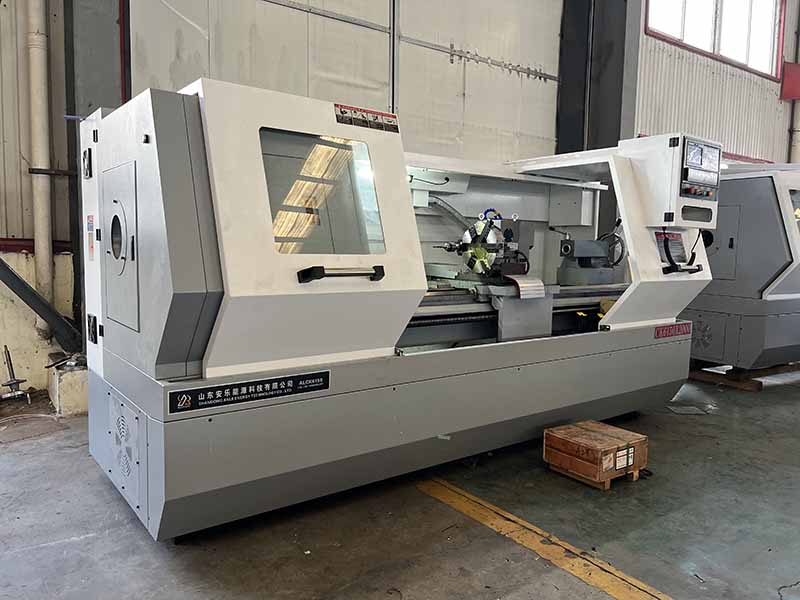

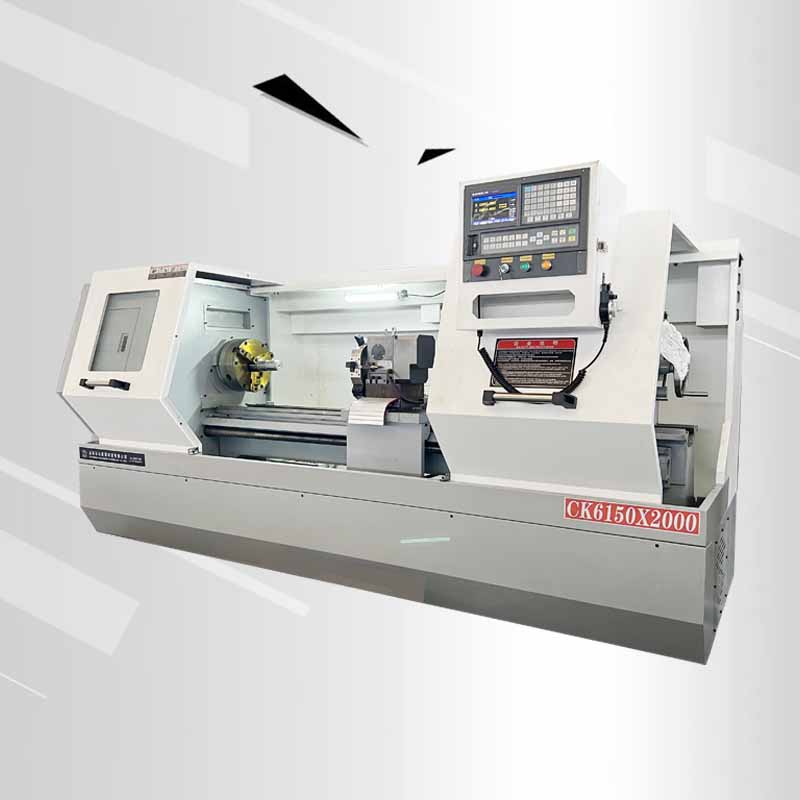

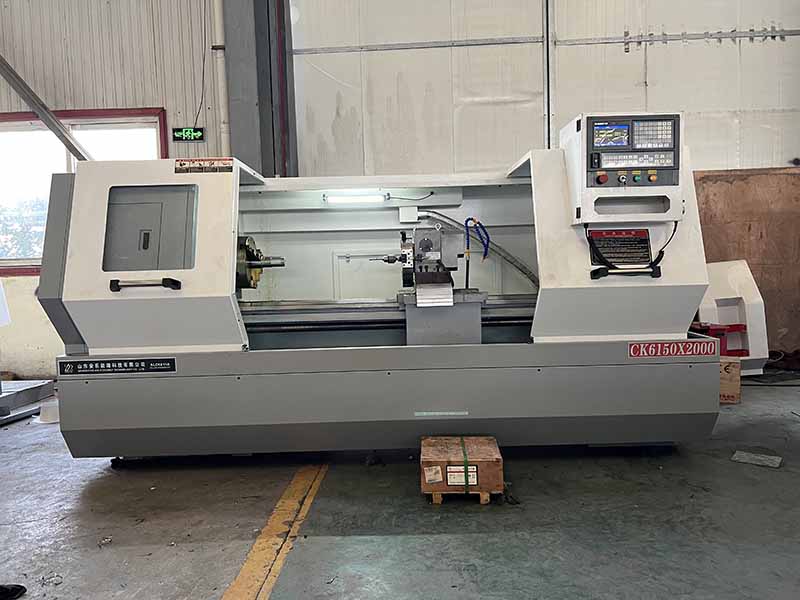

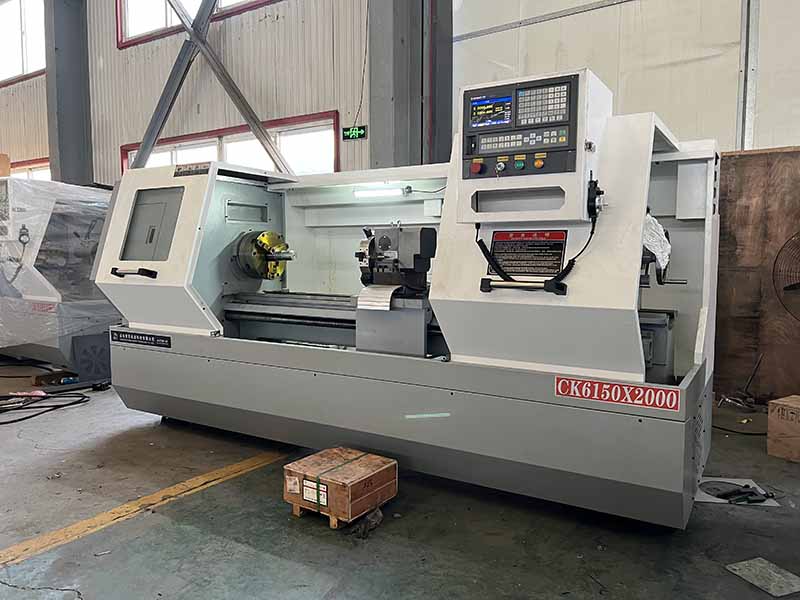

CK6150 Lathe Horizontal Flat Bed Cnc Lathe Machine
Maximum processing length: 2000mm
Maximum cutting diameter: 500mm
Spindle hole diameter: Φ82mm
This series horizontal CNC lathe is a suitcase lathe for machining the details of axes, arcs, threads, cones and faces of internal and external rotating bodies.
Model CK6150 and the models above can provide and meet the cutting requirements for heavy duty applications.
Horizontal Flat Bed Cnc Lathe Features:
1. Horizontal rail, resin sand casting, high rigidity; guide rail hardening and fine grinding, high precision, durable.
2. Color Spindle with large bore gearbox, single, three legs, high rigidity, suitable for heavy cutting.
3. Spindle inverter or servo drive, can achieve constant linear rotation speed.
4. High speed spindle, precision structure design, built-in spindle with large bore type gearbox, three legs, high rigid structure, suitable for heavy cutting
5. The gearbox gear set and spindle of models 6150 and above are finely ground with low noise.
Product Specifications:
| Item | Unit | CK6150*2000 |
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 2000 |
| X/Z axis maximum stroke | mm | 2000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000/60-1600 |
| Main motor power (frequency conversion) | kW | 7.5 |
| Frequency converter | kW | 7.5 |
| X/Z axis | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool holder type | / | 4-station tool holder |
| Tool bar size | mm | 25*25 |
1. Spindle box: High-speed, maintenance-free independent spindle
2. Corkscrew: Extended and integrated corkscrew
3. Bed: Col. Casting for and base
4. Bed saddle/slider: Widened, thickened, one-piece cast.
