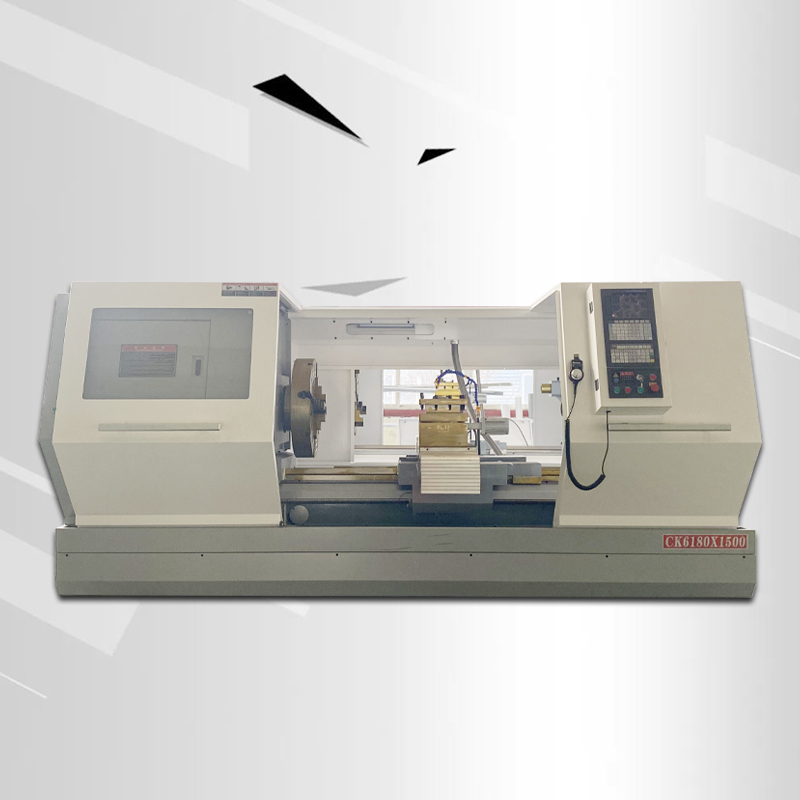

Flat bed CNC lathe ALCK6180
The ALCK6180 CNC lathe is a heavy-duty precision CNC machine tool featuring large specifications, high rigidity, and strong cutting capacity, designed specifically for large-part machining. Its bed is constructed of high-quality cast iron, undergoing a secondary aging treatment to ensure long-term deformation resistance. Its spindle features a large through-hole and high torque, capable of stably withstanding heavy cutting loads. It is suitable for precision machining of various materials, including steel, cast iron, and non-ferrous metals. It supports a variety of CNC systems (including Guangshu, KND, Siemens, and Fanuc), allowing for customized configuration based on customer needs.
1. Product Overview
The ALCK6180 CNC lathe is a heavy-duty precision CNC machine tool featuring large specifications, high rigidity, and strong cutting capacity, designed specifically for machining large parts. The bed is constructed of high-quality cast iron, with a secondary aging treatment to ensure long-term deformation resistance. The spindle features a large through-hole and high torque, capable of stably withstanding heavy cutting loads and suitable for precision machining of various materials, including steel, cast iron, and non-ferrous metals. It supports a variety of CNC systems (including Guangshu, KND, Siemens, and Fanuc), allowing for customized configuration based on customer needs.
2. Key Features
Large through-hole, high-torque spindle: Suitable for machining large diameter and heavy workpieces.
Highly rigid bed structure: One-piece casting with wide guideways for strong load-bearing capacity.
High cutting capacity: Capable of heavy cutting with high efficiency.
High-precision bearings: Ensure machining accuracy and surface finish.
Movable tailstock: Suitable for supporting long shaft parts. Multi-system compatibility: Supports mainstream CNC systems such as Guangshu, KND, Siemens, and Fanuc.
Optional automation accessories, such as hydraulic chucks, automatic chip conveyors, and protective covers, enhance production efficiency and safety.
3. Main Functions
Precision turning of external diameters, end faces, and internal holes
Thread cutting (metric, imperial, module, and pitch)
Machining of arcs, spheres, and complex curved surfaces
Combination of heavy cutting and finishing
Machining of long shafts and large-diameter workpieces
Automatic cycle processing of batch parts
4. Application Industries
Machinery Manufacturing: Large machinery parts
Petrochemical: Flanges, large-diameter pipe fittings, and oil pipe fittings
Shipbuilding: Drive shafts, propeller shafts, and rudder shafts
Metallurgical Equipment: Roller shafts, couplings, and large bushings
Mining Machinery: Drill pipes, drive shafts, and heavy-duty bearing seats
Energy Equipment: Wind turbine main shafts and generator rotor components
5.Equipment Specifications:
| Project | Content | Unit | CK6180x1500 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ440 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle | Spindle hole diameter | mm | Φ105 |
| Spindle speed range | r/min | 125-350 | |
| Feed | X/Z axis travel | mm | 420/1500 |
| X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
| X/Z fast moving speed | m/min | 4/6 | |
| Tool holder | Number of stations | / | 4 |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Sleeve drive form | / | Manual | |
| Tailstock movement form | / | Manual | |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | Machine weight | kg | 4500 |
| Machine size: length×width×height | mm | 3990/1900/2000 |
