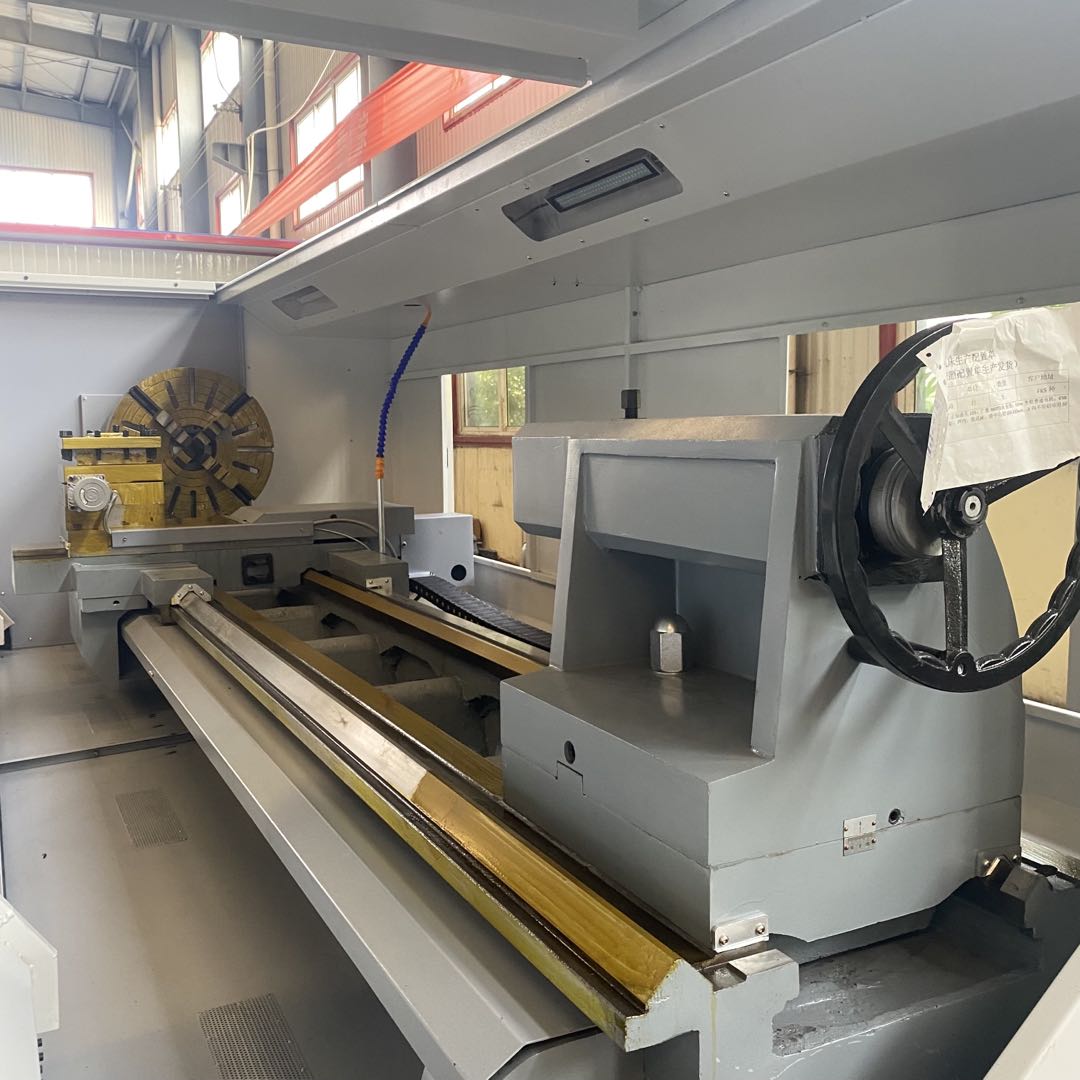

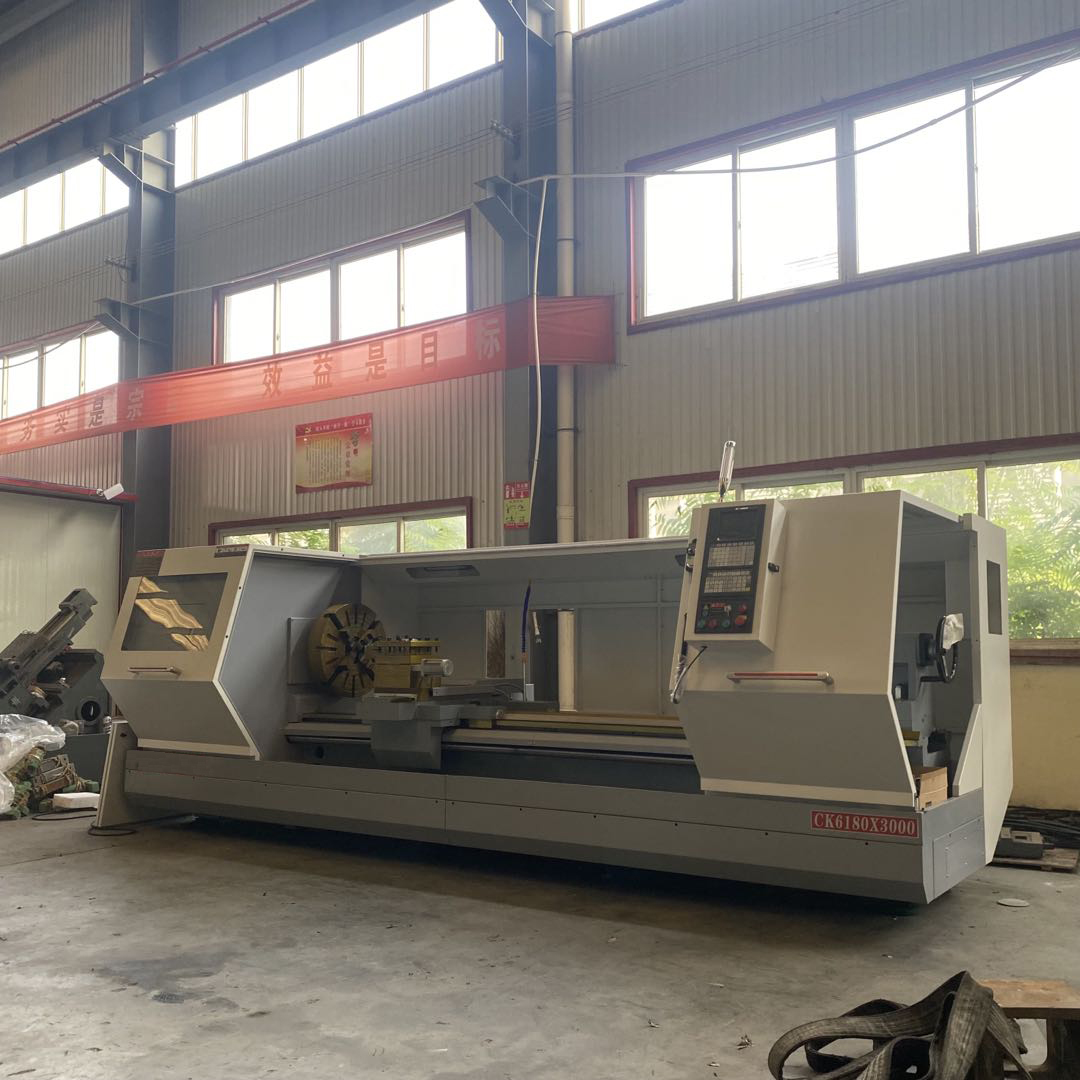

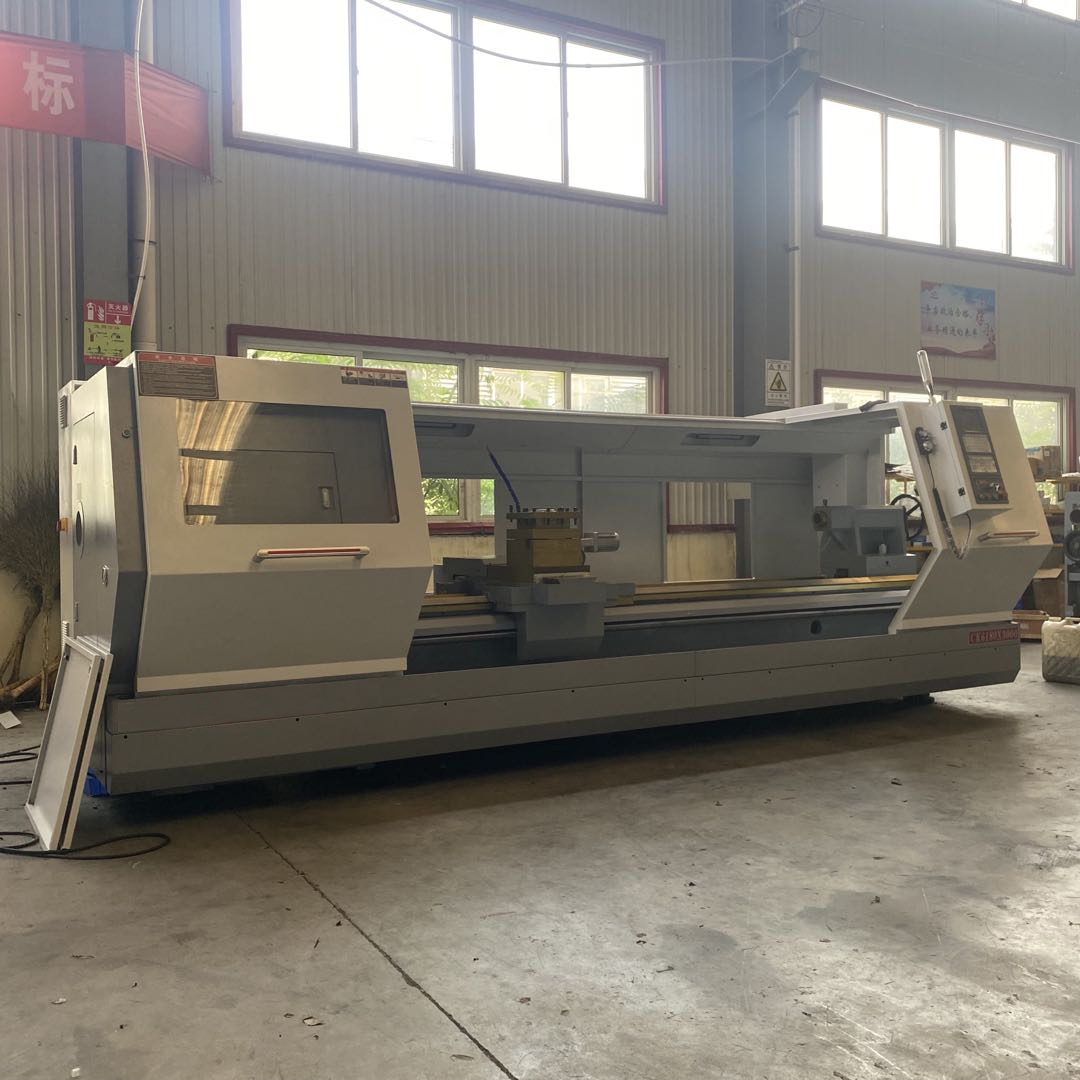

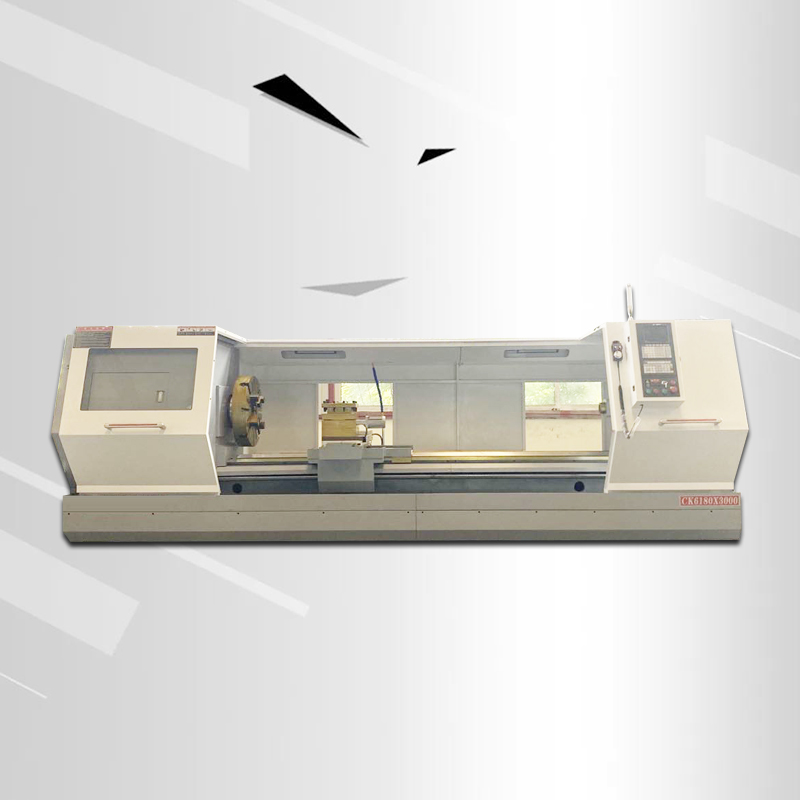

CK6180 GSK CNC Horizontal Flat Bed Lathe
CK6180 GSK CNC Horizontal Flat Bed Lathe:
Maximum turning diameter of bed: Φ800mm
Maximum turning diameter on skateboard: Φ450mm
Maximum processing length: 3000mm
Maximum machining diameter: Φ800mm
X/Z axis travel: 420/3000mm
The ALHAAS CNC CK6180 CNC lathe machine is a full-featured, high-precision CNC lathe designed and engineered using advanced foreign technology.
The design and control unit is designed to meet the requirements of ergonomics: it is convenient and easy to operate, easy to repair.
Product Advantage:
CNC heavy duty lathes of the ALHAAS CNC CK series are designed for roughing and semi-finishing of large parts.
The technical characteristics and rigidity of the design of the CK6180 CNC lathe machine bed, carriage, spindle make it possible to fully use the possibilities of working at high cutting speeds using cutters made of high-speed steel or equipped with hard alloy inserts when machining parts made of ferrous, alloyed and non-ferrous metals. On machines of this series, power turning and boring of cylindrical holes are performed.
CNC lathe machine model CK6180x3000 is designed for high-speed, high-precision, semi-finishing and finishing machining of various types of shafts, discs, for boring holes, internal curved surfaces of a conical shape, threads, arcs, reamers. Suitable for high-speed cutting of ferrous and non-ferrous metals and machining of rotating parts. Provides high efficiency, large volumes and high processing accuracy. Designed and engineered using advanced foreign technologies. The design and controls are designed with ergonomics in mind: it is comfortable and easy to operate.
Product Specifications:
| Project | Content | Unit | CK6180*3000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ450 | |
| Maximum processing length | mm | 3000 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ450 | |
| Spindle | Chuck | / | 400 three claws/630 four claws (optional） |
| Spindle hole diameter | mm | Φ105 | |
| Taper of spindle bore | / | 1:20 | |
| Feed | X/Z axis travel | mm | 420/3000 |
| X/Z axis screw diameter × pitch | mm | φ3208/φ5010 | |
| X/Z fast moving speed | m/min | 4/6 | |

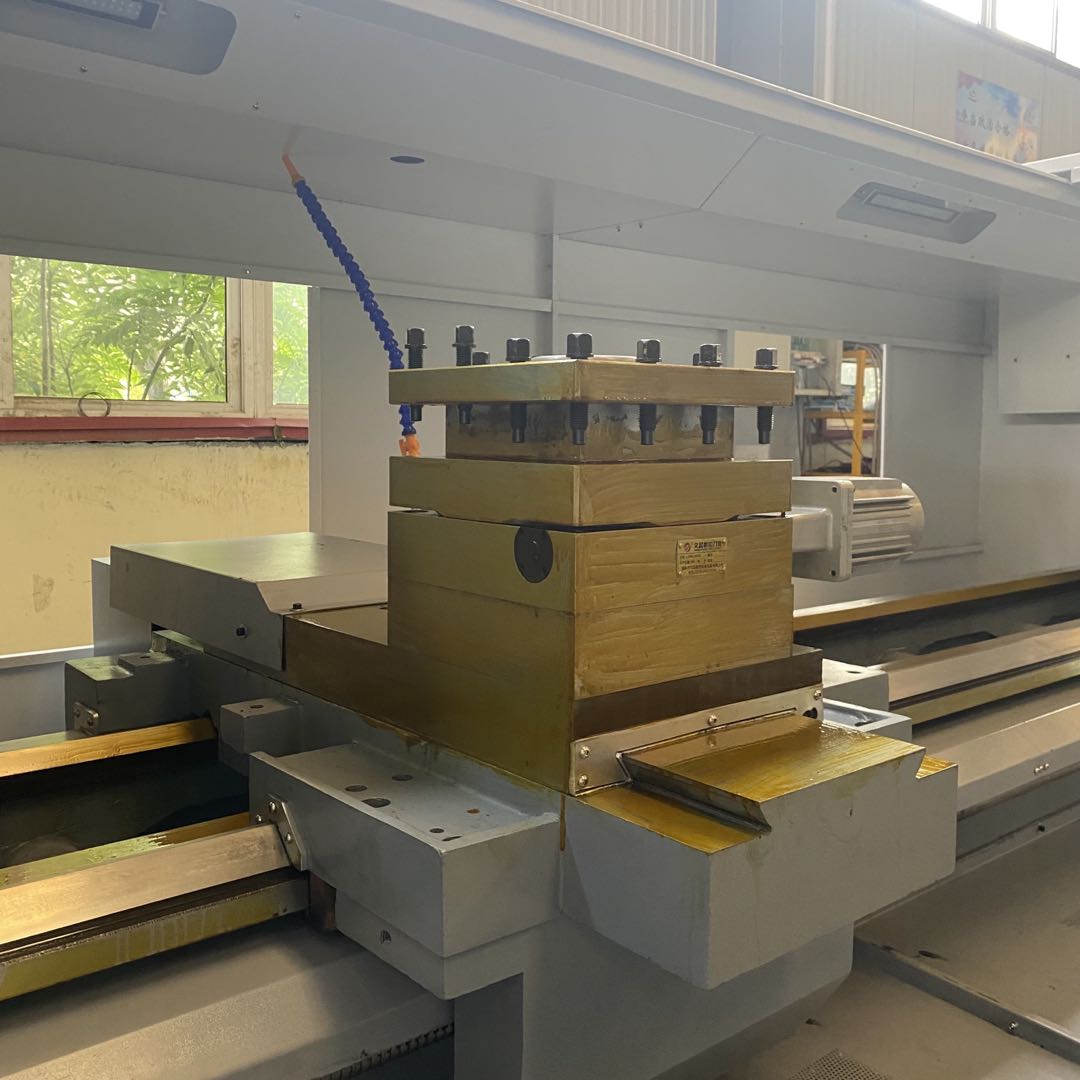

| Tool holder | Tool holder form | / | Electric vertical |
| Number of stations | / | 4 | |
| Tool specifications: turning/boring | mm | 32/40 | |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | Machine weight | kg | 6200 |
| Machine size length×width×height | mm | 5400/1900/2000 |
