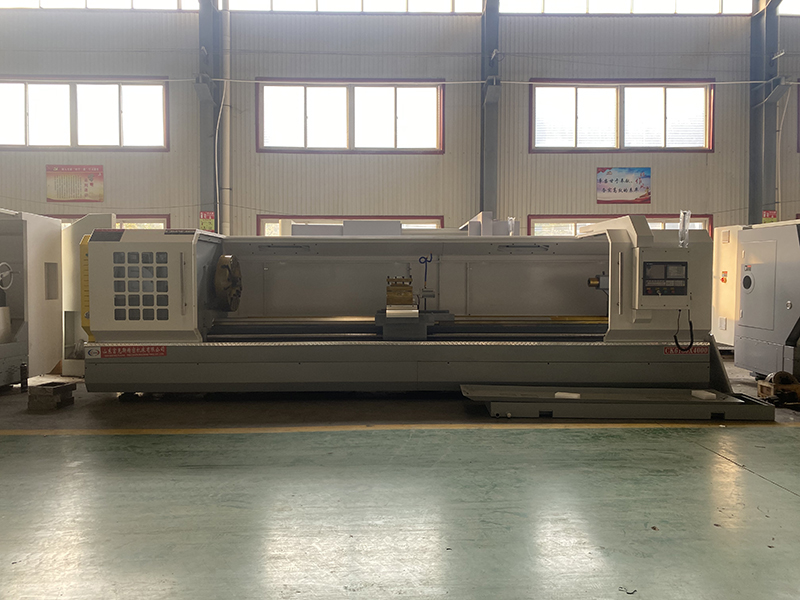

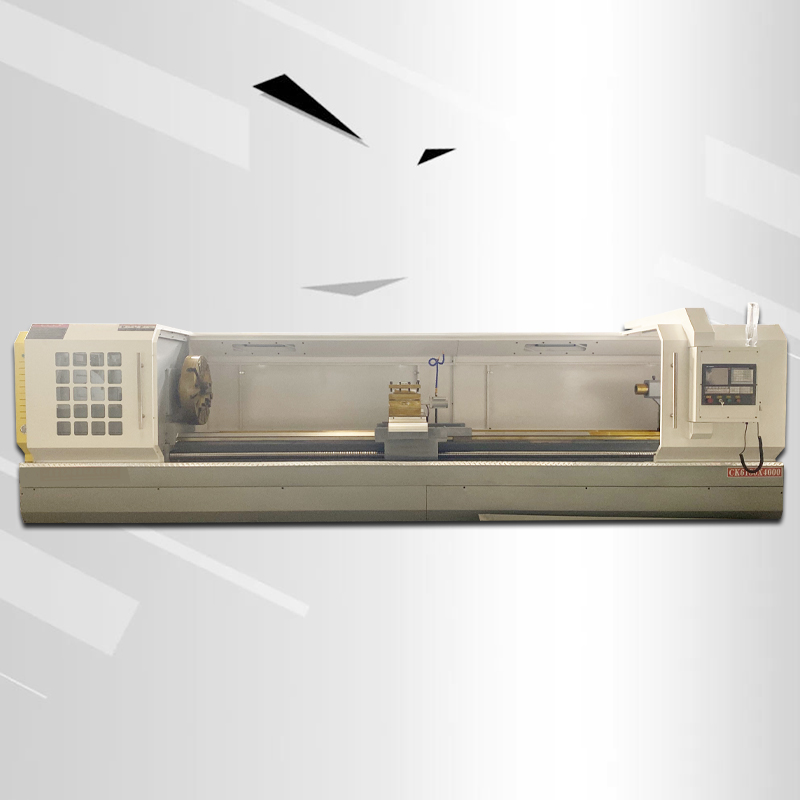

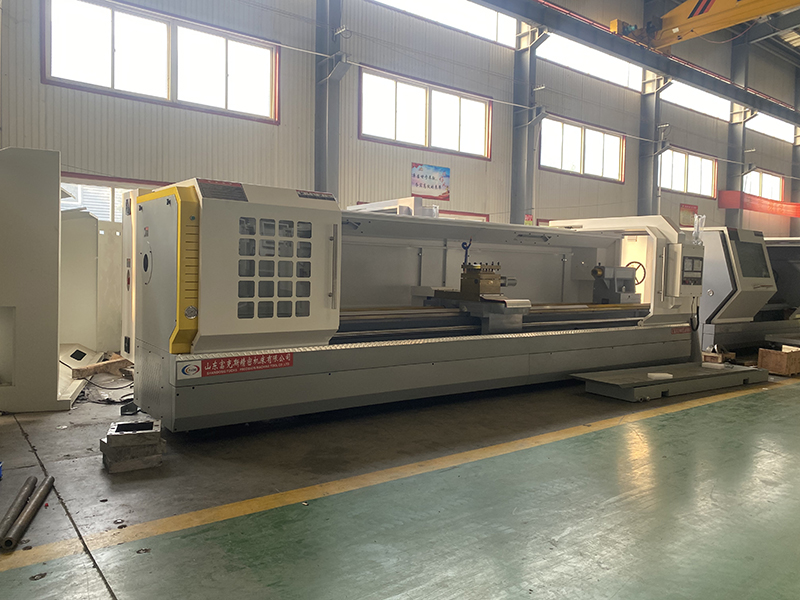

CK6180 CNC Lathe Machine Automatic Lathe Machine
The CK6180 is a full-featured CNC normal precision lathe designed and engineered using advanced foreign technology. The design and controls are developed taking into account the requirements of ergonomics: it is convenient and easy to operate, easy to repair.
The heavy lathes of the CK series are designed for roughing and semi-finishing of large parts.
The technical characteristics and rigidity of the design of the machine bed, carriage, spindle of the machine make it possible to fully use the possibilities of working at high cutting speeds with the use of cutters made of high-speed steel or equipped with hard alloy inserts when machining parts made of ferrous, alloyed and non-ferrous metals.
On machines of this series, power turning and boring of cylindrical holes are performed.
Machine model CK6180x2000 is designed for high-speed, high-precision, semi-finishing and finishing machining of various types of shafts, discs, for boring holes, internal curved surfaces of a conical shape, threads, arcs, reamers.
Suitable for high-speed cutting of ferrous and non-ferrous metals and machining of rotating parts.
Provides high efficiency, large volumes and high processing accuracy. Designed and engineered using advanced foreign technologies.
The design and controls are designed with ergonomics in mind: it is comfortable and easy to operate.
Product Configuration:

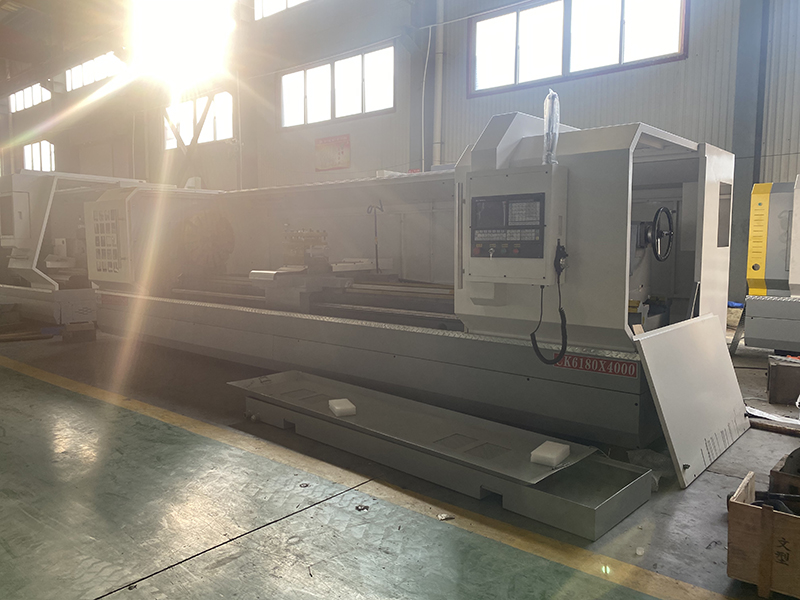

CNC system: GSK
Manual lathe with reverse jaws;

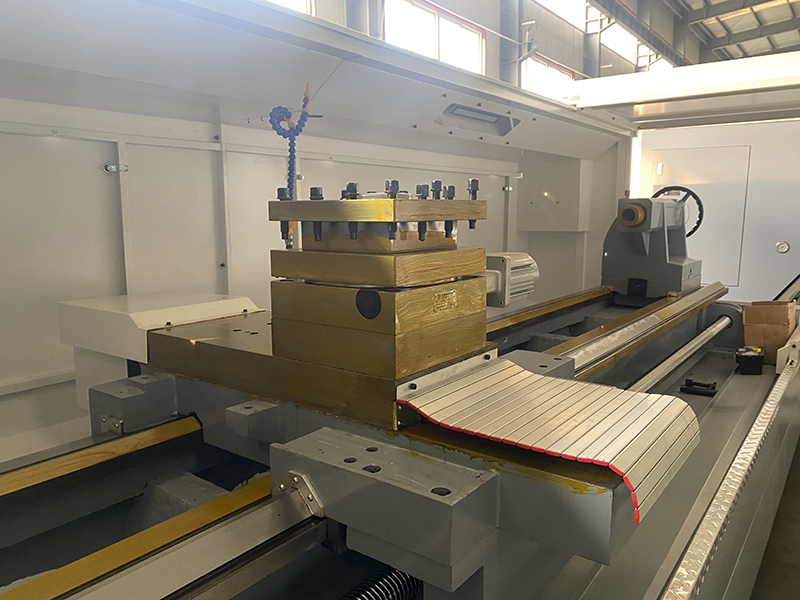

4 position tool post;
Movable and fixed steady rests;
Cooling system;

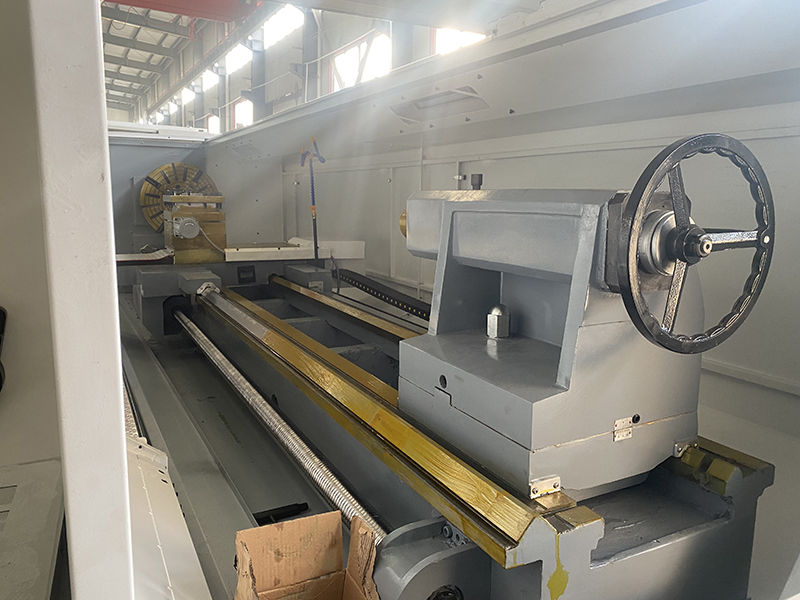

Manual tailstock;
Automatic lubrication system;
LED work area lighting;
Emergency stop button;
The processing area is equipped with protective covers.
Product Specifications:
| Project | Content | Unit | CK6180*4000 |
| Processing range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ450 | |
| Maximum processing length | mm | 4000 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ450 | |
| Spindle | Chuck | / | 400 three claws or 630 four claws (optional） |
| Spindle hole diameter | mm | Φ105 | |
| Spindle speed range | r/min | 300-835 | |
| Feed | X/Z axis travel | mm | 420/3000 |
| X/Z fast moving speed | m/min | 4/6 | |
| Tool holder | Tool holder form | / | Electric vertical |
| Number of stations | / | 4 | |
| Tool specifications: turning/boring | mm | 32/40 | |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Other | Machine weight | kg | 6200 |
| Machine size: length×width×height | mm | 6400/1900/2000 |
