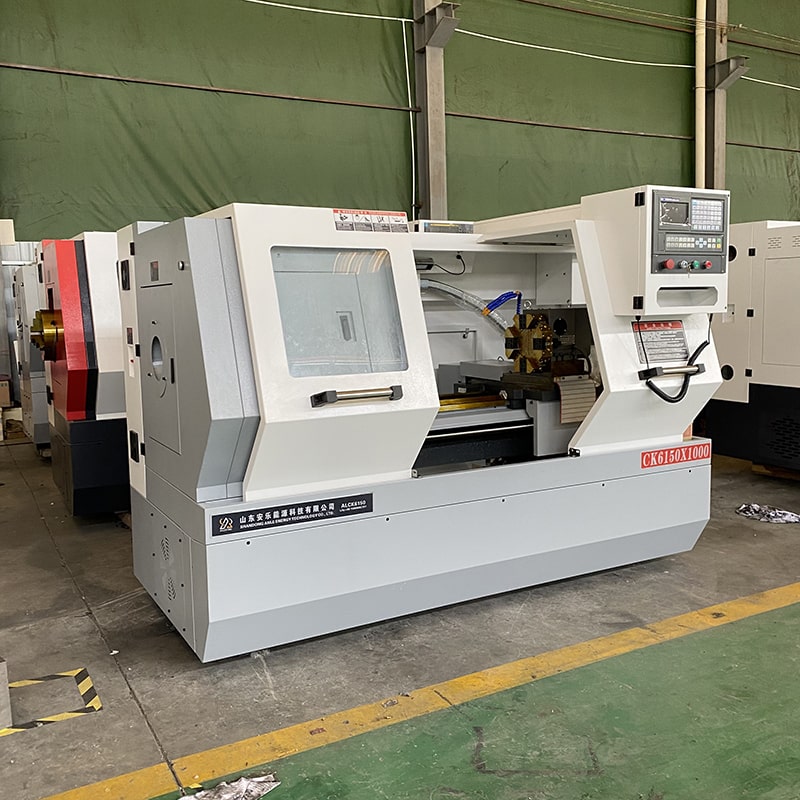

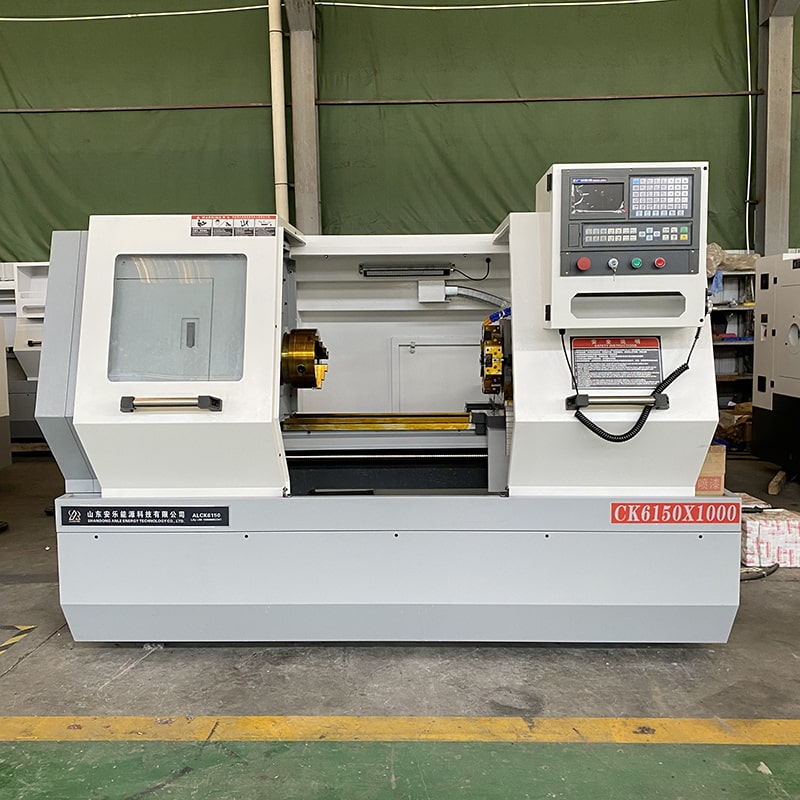

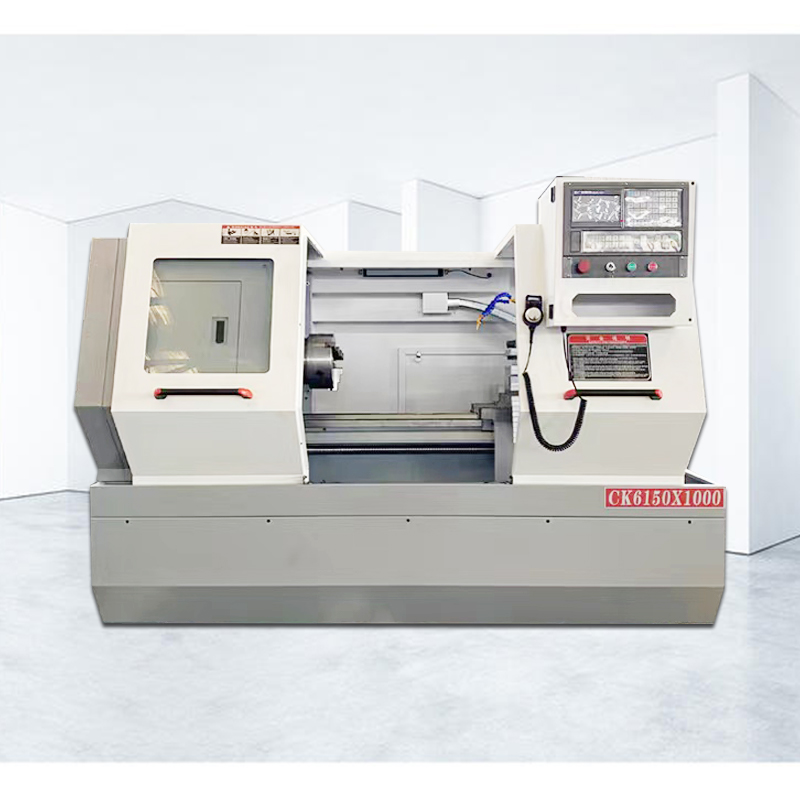

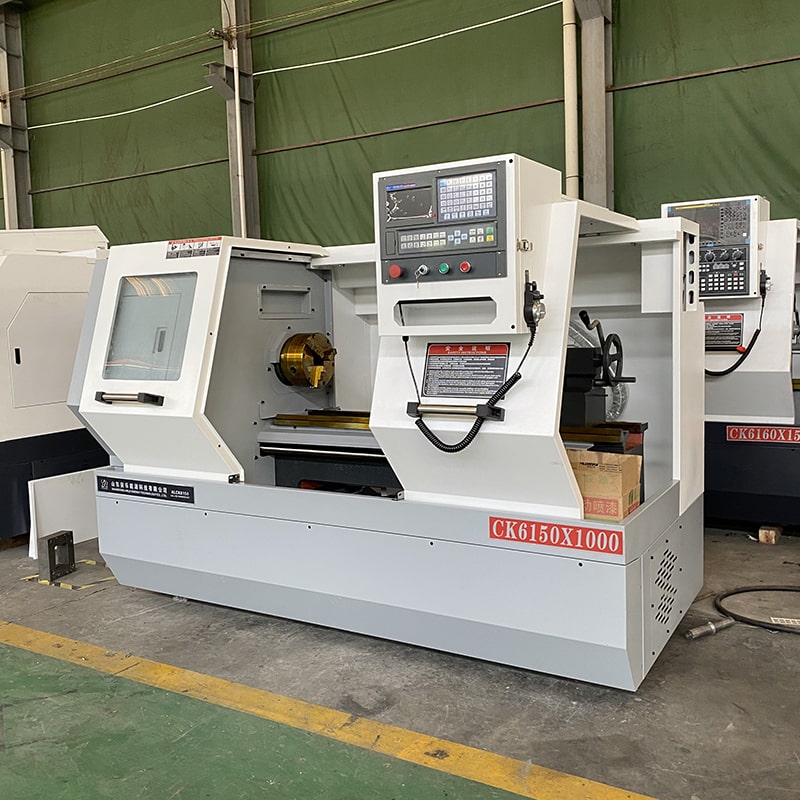

Horizontal Turning Lathe CK6150 Flat Bed CNC Lathe Machine
The ALCK6150X1000 CNC Lathe is a high-performance flat bed CNC turning machine designed for precision machining of various metal components, including shafts, discs, sleeves, flanges, and other mechanical parts.
I. Product Overview
The ALCK6150X1000 CNC Lathe is a high-performance flat bed CNC turning machine designed for precision machining of various metal components, including shafts, discs, sleeves, flanges, and other mechanical parts.
Equipped with a high-rigidity machine structure and advanced CNC control system, this machine provides excellent machining accuracy, stability, and efficiency. It can perform multiple machining operations, including external diameter turning, internal boring, end face machining, taper turning, grooving, and thread cutting.
With a maximum processing length of 1000 mm and a maximum cutting diameter of Φ500 mm, the ALCK6150X1000 is widely used for medium-sized workpieces and is an ideal solution for small and medium batch production.
II. Product Specifications
| Item | Unit | CK6150x1000 |
|---|---|---|
| Max swing over bed | mm | Φ500 |
| Maximum swing over slide | mm | Φ290 |
| Maximum cutting diameter | mm | Φ500 |
| Maximum processing length | mm | 1000 |
| X/Z axis minimum displacement unit | mm | 0.001 |
| Spindle hole diameter | mm | Φ82 |
| Spindle speed limit | rpm | 150-2000 / 60-1600 |
| X/Z axis torque | N.m | 5/7.5 |
| X/Z axis rapid traverse speed | m/min | 6/8 |
| Tool holder type | / | 4-station tool holder |
| Weight | kg | 2500 |
| Machine size | mm | 3030×1600×2050 |
III. Main Features
1. High Rigidity Machine Structure
The ALCK6150X1000 adopts a high-strength cast iron bed structure with optimized rib design, providing excellent rigidity and vibration resistance.
Advantages:
- Stable cutting performance
- Reduced machining vibration
- Improved surface finish quality
- Extended tool life
- Suitable for continuous production
2. High Precision CNC Machining
The CNC control system enables accurate and efficient automatic machining.
The machine can perform various machining processes:
- External diameter turning
- Internal boring
- End face machining
- Taper turning
- Thread cutting
- Grooving
- Step shaft machining
3. Powerful Spindle System
The ALCK6150X1000 is equipped with a large spindle hole diameter of Φ82 mm, providing strong machining capability.
Advantages:
- Suitable for larger diameter bar materials
- Stable spindle operation
- Strong cutting performance
- Suitable for long-term continuous machining
IV. Product Advantages
1. Excellent Cost Performance
Compared with imported CNC lathe brands, the ALCK6150X1000 provides excellent machining performance with competitive investment costs.
2. Wide Application Range
The machine is suitable for:
- Precision machining workshops
- Mechanical manufacturing factories
- Automotive parts manufacturers
- Hardware processing companies
3. Flexible Configuration Options
Available configurations:
- FANUC CNC system
- Siemens CNC system
- Mitsubishi CNC system
- Hydraulic chuck
- Automatic chip conveyor
- Automatic bar feeder
V. Application Industries
1. Automotive Industry
Applications:
- Wheel hubs
- Shafts
- Bushings
- Flanges
- Transmission components
2. Motorcycle and New Energy Industry
Applications:
- Motor shafts
- Aluminum alloy components
- Connection parts
3. Mechanical Manufacturing Industry
Applications:
- Mechanical shafts
- Gear shafts
- Hydraulic cylinder parts
- Precision mechanical components
4. Hardware and Mold Industry
Applications:
- Precision sleeves
- Threaded parts
- Fixtures
- Mold components
VI. Applicable Materials
The ALCK6150X1000 CNC Lathe can process various materials:
Ferrous Metals
- Carbon steel
- Alloy steel
- Cast iron
Non-ferrous Metals
- Aluminum alloy
- Copper
- Brass
Special Materials
- Stainless steel
- Titanium alloy
VII. Typical Machined Parts
| Part Type | Machining Operations |
|---|---|
| Shaft parts | External turning, grooving, threading |
| Flanges | Outer diameter turning, end face machining, drilling |
| Sleeves | Internal and external turning |
| Hydraulic components | Precision boring and turning |
| Motor shafts | High-precision turning |
| Automotive parts | Batch production machining |
VIII. Customer Value
The ALCK6150X1000 CNC Lathe helps customers achieve:
✔ Higher production efficiency
✔ Reduced labor dependence
✔ Improved product consistency
✔ Expanded machining capability
✔ Easy upgrade from conventional lathes
✔ Faster return on investment
ALCK6150X1000 CNC Lathe — A reliable, high-precision, and cost-effective CNC turning solution for automotive, mechanical manufacturing, and precision machining industries.
