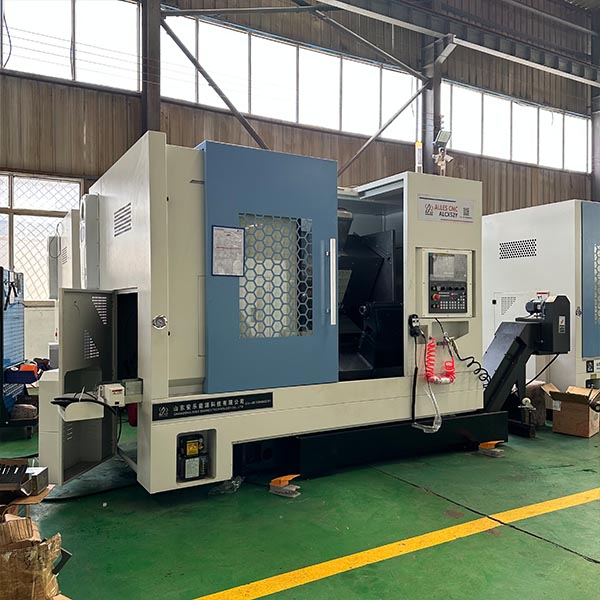

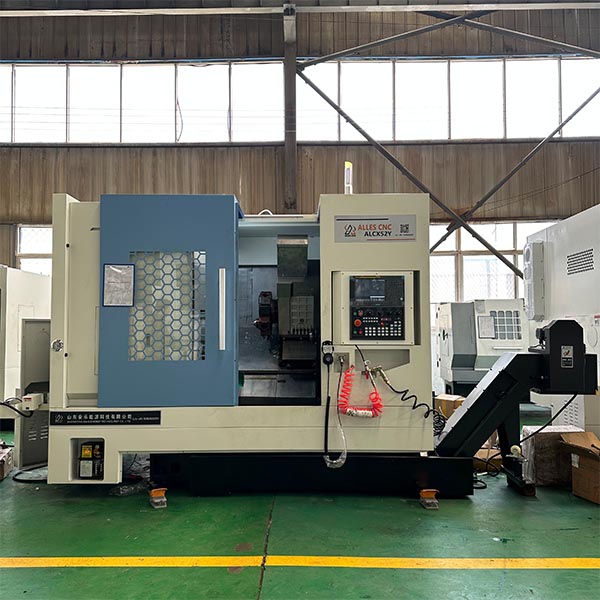

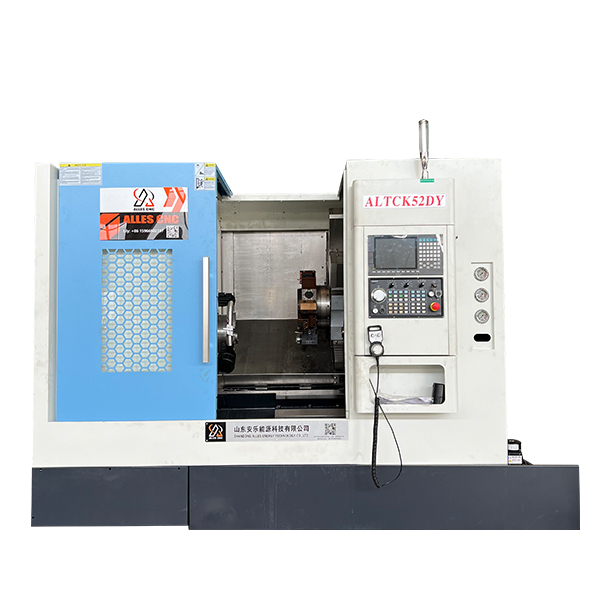

ALTCK52DY CNC Turning and Milling Lathe - High-Efficiency Machine Tool for Machining Automotive Parts (Shafts and Discs)

The ALTCK52DY is a high-performance CNC milling and turning machining center. Upgraded and optimized from the ALTCK52D, it features a power turret and enhanced composite machining capabilities, enabling integrated machining of multiple processes such as turning, milling, drilling, and tapping. The machine employs a high-rigidity slant bed structure design, suitable for high-efficiency, high-precision mass production of complex parts, and is one of the important processing equipment in modern intelligent manufacturing.

I. Application Industries

The ALTCK52DY is widely used in industries with high requirements for precision, efficiency, and complex machining capabilities:

1. Automotive Manufacturing Industry: Used for machining batches of parts such as drive shafts, flanges, connecting shafts, wheel hub components, and brake components.

2. Construction Machinery Industry: Suitable for machining heavy-duty parts such as hydraulic joints, bushings, support shafts, and structural components.

3. Hydraulics and Pneumatics Industry: Machining components with high sealing requirements such as valve bodies, oil line joints, and precision pipe fittings.

4. Hardware and Standard Parts Industry: High-efficiency mass production of threaded parts, fasteners, and connectors.

5. Aerospace and High-End Manufacturing

Suitable for machining complex structural parts made of high-strength materials such as aluminum alloys, stainless steel, and titanium alloys.

6. General Machining

Suitable for machining multi-process composite parts such as shafts, discs, and sleeves.

II. Product Features

1. Integrated Turning and Milling Design

The ALTCK52DY integrates turning, milling, drilling, and tapping functions, enabling multi-process machining in a single setup, reducing clamping errors and improving overall accuracy.

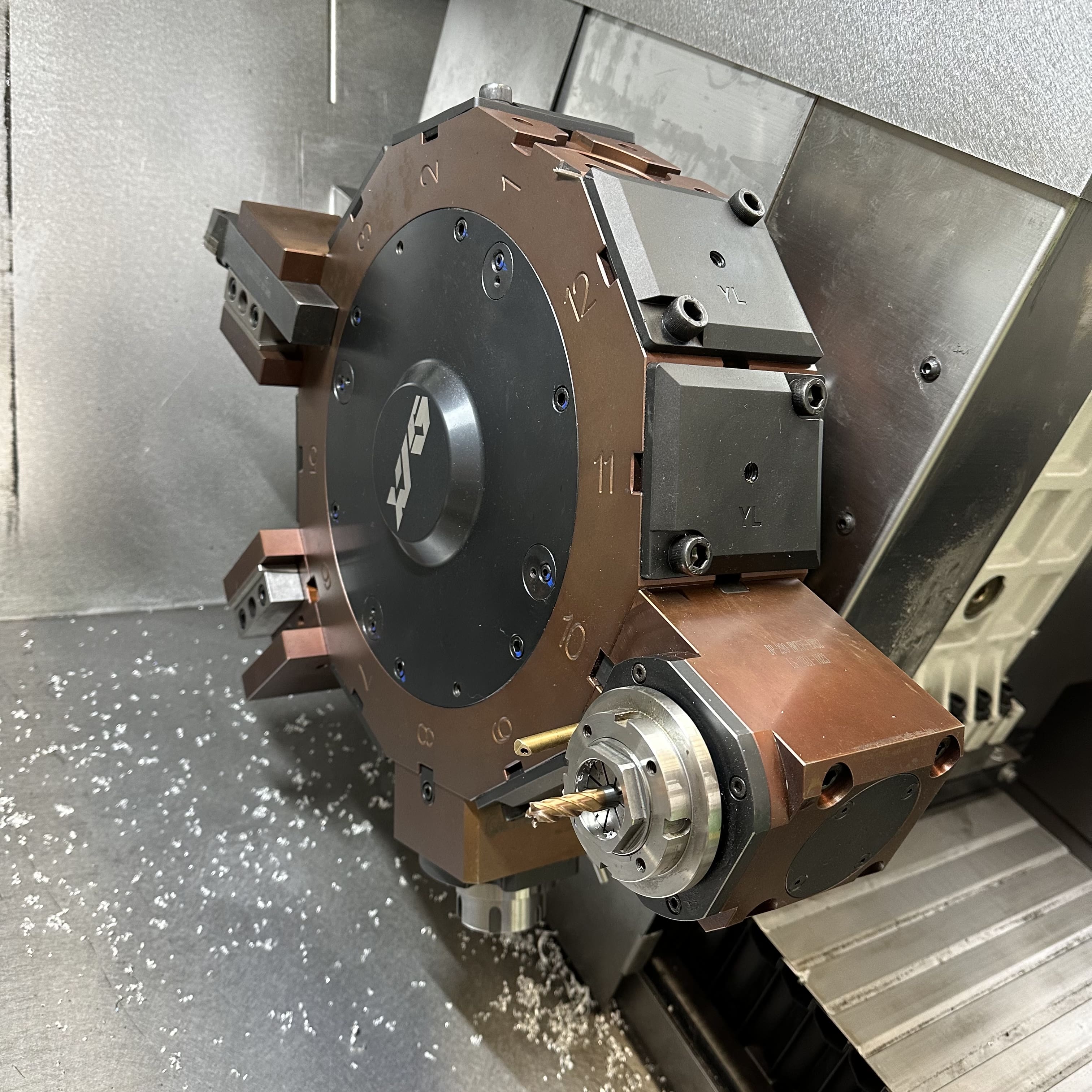

2. Upgraded Power Turret System

Equipped with a high-rigidity power turret, it enables multi-angle milling and drilling, expanding machining capabilities and making it suitable for manufacturing complex parts.

3. High-Rigidity Slant Bed Structure

The integral cast bed design provides structural stability and strong vibration resistance, suitable for heavy cutting and long-term stable machining.

4. High-Precision Linear Guides

The X/Z axes use high-precision linear guides, ensuring smooth operation, accurate positioning, and long-term accuracy maintenance.

5. High-Performance Spindle System

The spindle boasts powerful performance and a wide speed range, adaptable to various material processing requirements, including carbon steel, stainless steel, and alloy materials.

6. Automated Auxiliary System

Equipped with an automatic lubrication system and a high-efficiency cooling system, ensuring stable operation over extended periods.

III. Product Advantages

1. Multi-Process Completion in One Operation

Reduces the number of setups, enabling milling and turning operations, significantly improving processing efficiency and consistency.

2. Significantly Improved Processing Efficiency

Compared to traditional split-machine processing methods, efficiency can be increased by 30%–70%, suitable for mass production.

3. Enhanced Complex Machining Capability

The powered turret supports complex processes such as side milling, end face machining, drilling, and tapping.

4. Reduced Labor and Equipment Costs

One machine replaces multiple traditional machine tools, reducing manual operation and equipment investment.

5. Stable Machining Accuracy

High-rigidity structure + precision guideways + CNC system control ensure long-term stable machining accuracy.

6. Compatible with Multiple CNC Systems

Optional mainstream systems such as Fanuc, Siemens, and GSK are available to meet the operating habits of different customers.

IV. Summary

The ALTCK52DY is a high-end milling and turning CNC machine tool designed for high-efficiency and complex parts machining. With its upgraded power turret structure and stable overall performance, it is widely used in the automotive, hydraulic, and machinery manufacturing industries, making it an ideal choice for improving production efficiency and machining capabilities.

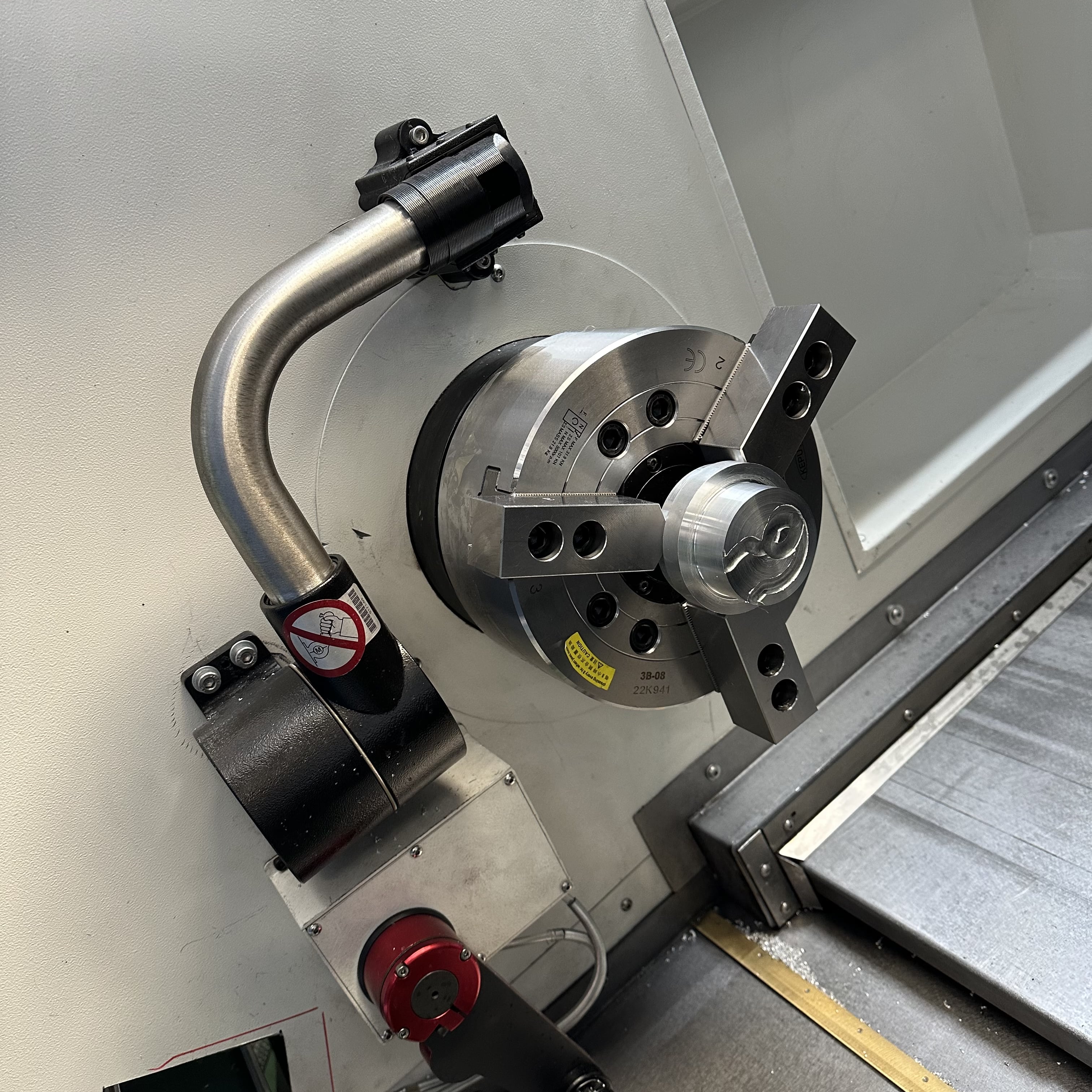

ALLES CNC offers a range of customization options for the TCK52DY, including optional hydraulic chucks, tailstocks, tool turret configurations, and chip conveyors. Customers can choose spindle speed, control system, and automation level according to their production requirements.
