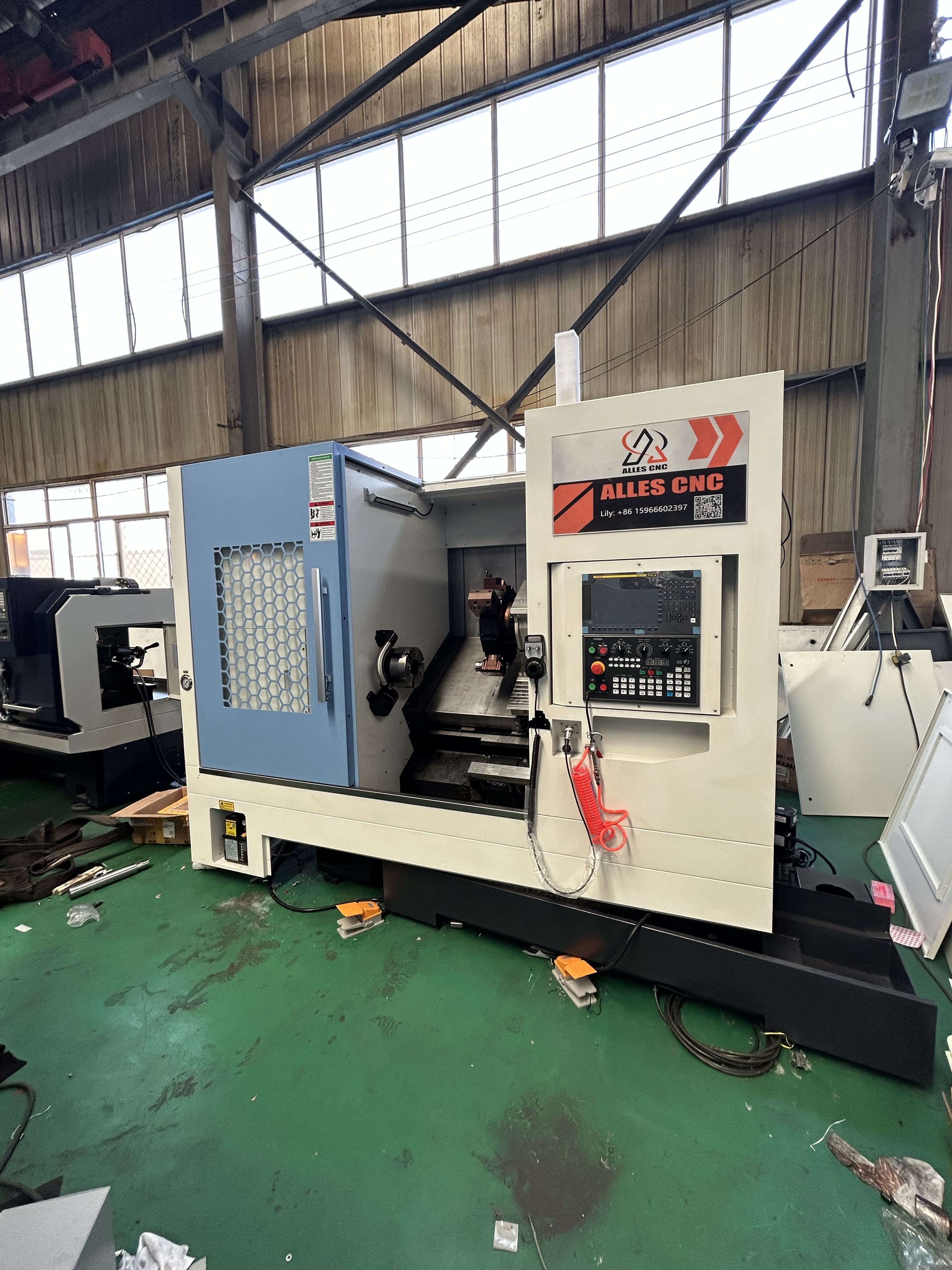

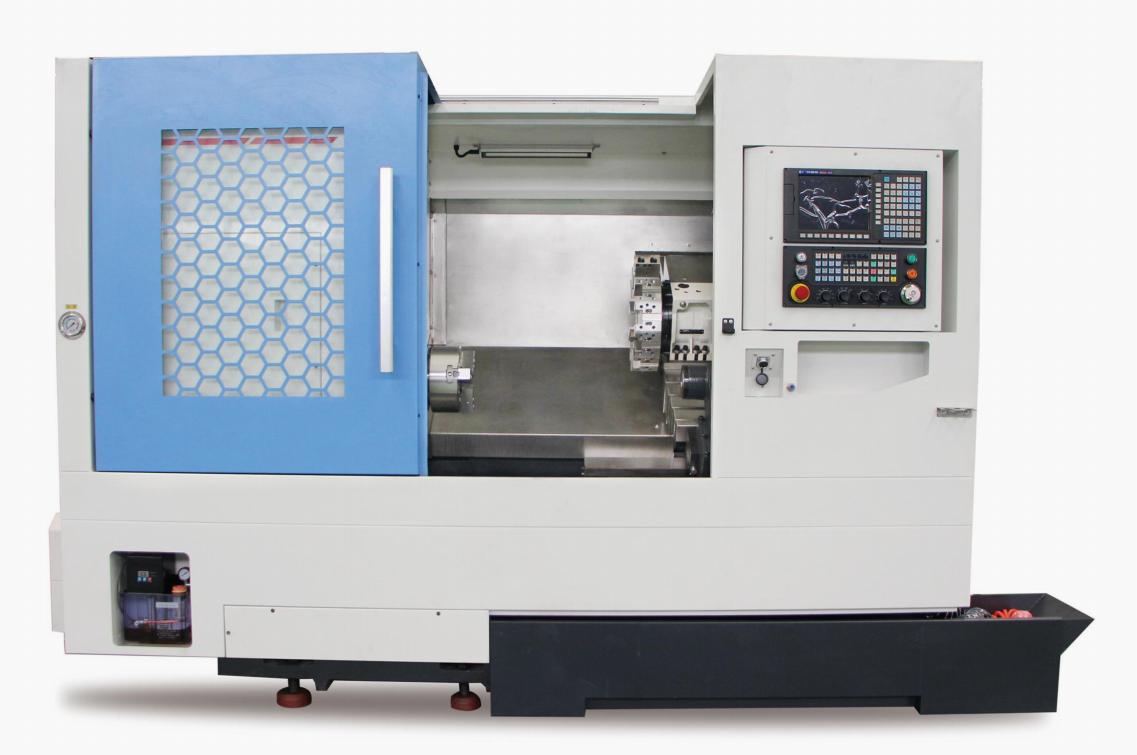

The ALTCK52D is a high-rigidity, high-efficiency CNC milling and turning machining center. Featuring a slant bed design, it integrates turning, milling, drilling, and tapping functions, enabling the machining of complex parts in a single setup. This significantly improves production efficiency and machining accuracy, making it widely applicable in the mass production of mid-to-high-end metal parts.

I. Application Industries

The ALTCK52D is suitable for various metal processing industries, especially those with high precision and efficiency requirements:

1. Automotive Parts Industry

For mass production of components such as drive shafts, flanges, wheel hub parts, connecting shafts, and threaded parts.

2. Machinery Manufacturing Industry

Suitable for precision machining of various shaft, sleeve, and disc parts.

3. Hardware and Standard Parts Industry

High-efficiency mass production of bolts, nuts, connectors, and fasteners.

4. Hydraulics and Pneumatics Industry

High-precision machining of hydraulic connectors, valve bodies, and cylinder parts.

5. Aerospace and High-End Equipment Manufacturing

Suitable for machining parts made of complex materials such as aluminum alloys, stainless steel, and titanium alloys.

6. Mold and General Component Machining

Used for multi-process composite machining of complex structural parts.

II. Product Features

1. Integrated Turning and Milling Structure

The ALTCK52D integrates turning and milling functions, enabling multi-process machining in a single setup, reducing repetitive positioning errors and improving overall machining accuracy.

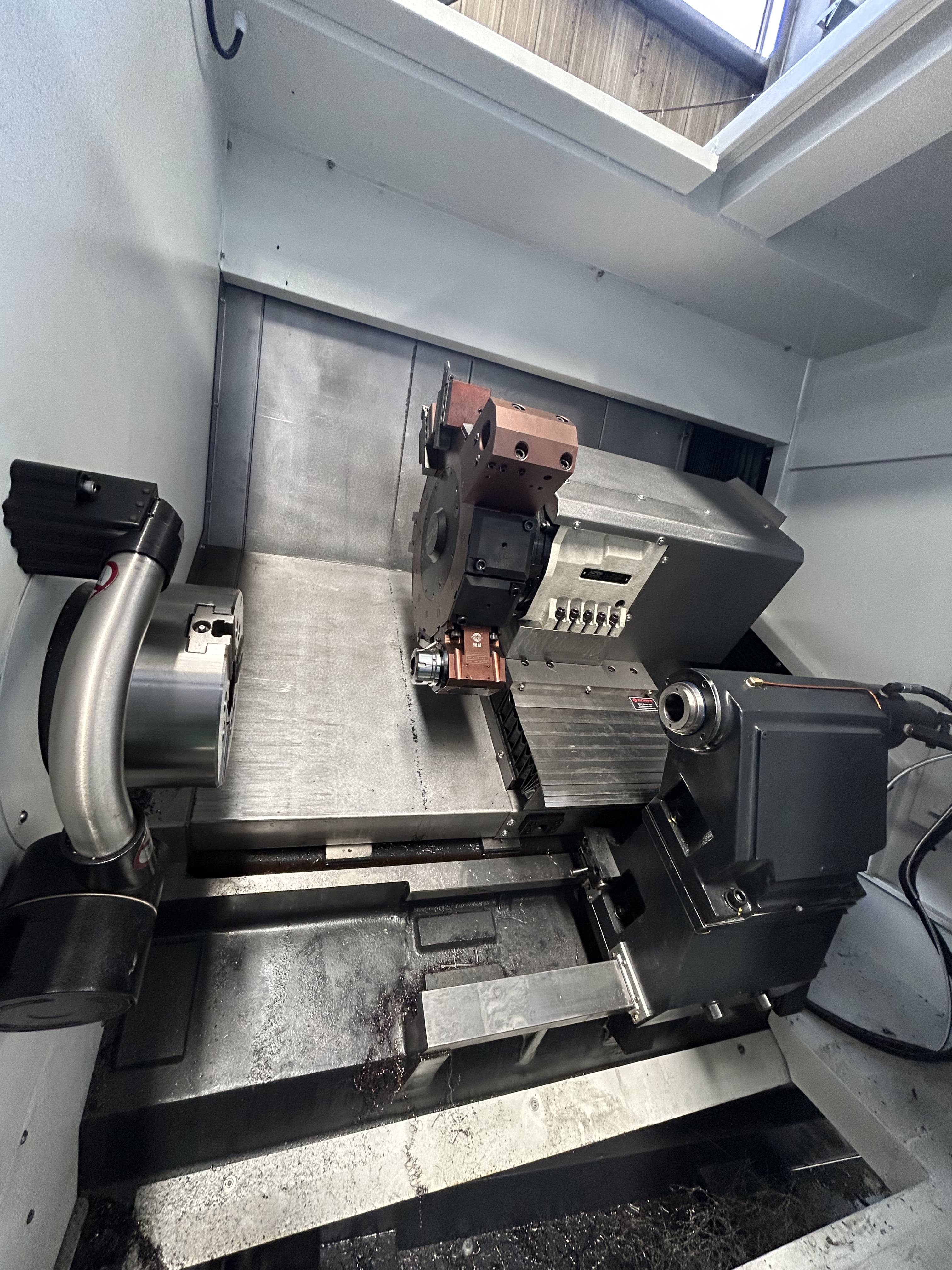

2. High-Rigidity Slant Bed Design

Utilizing an integral cast bed structure (typically a 30° slant bed design), it ensures smooth chip removal, structural stability, and suitability for heavy cutting operations.

3. High-Precision Linear Guide System

The X/Z axes employ high-precision linear guides, resulting in low motion resistance, fast response, and strong accuracy retention, suitable for high-speed, high-precision machining.

4. High-Performance Spindle System

The spindle boasts high rigidity and a wide speed range, meeting the machining requirements of various materials (carbon steel, stainless steel, alloy steel, etc.).

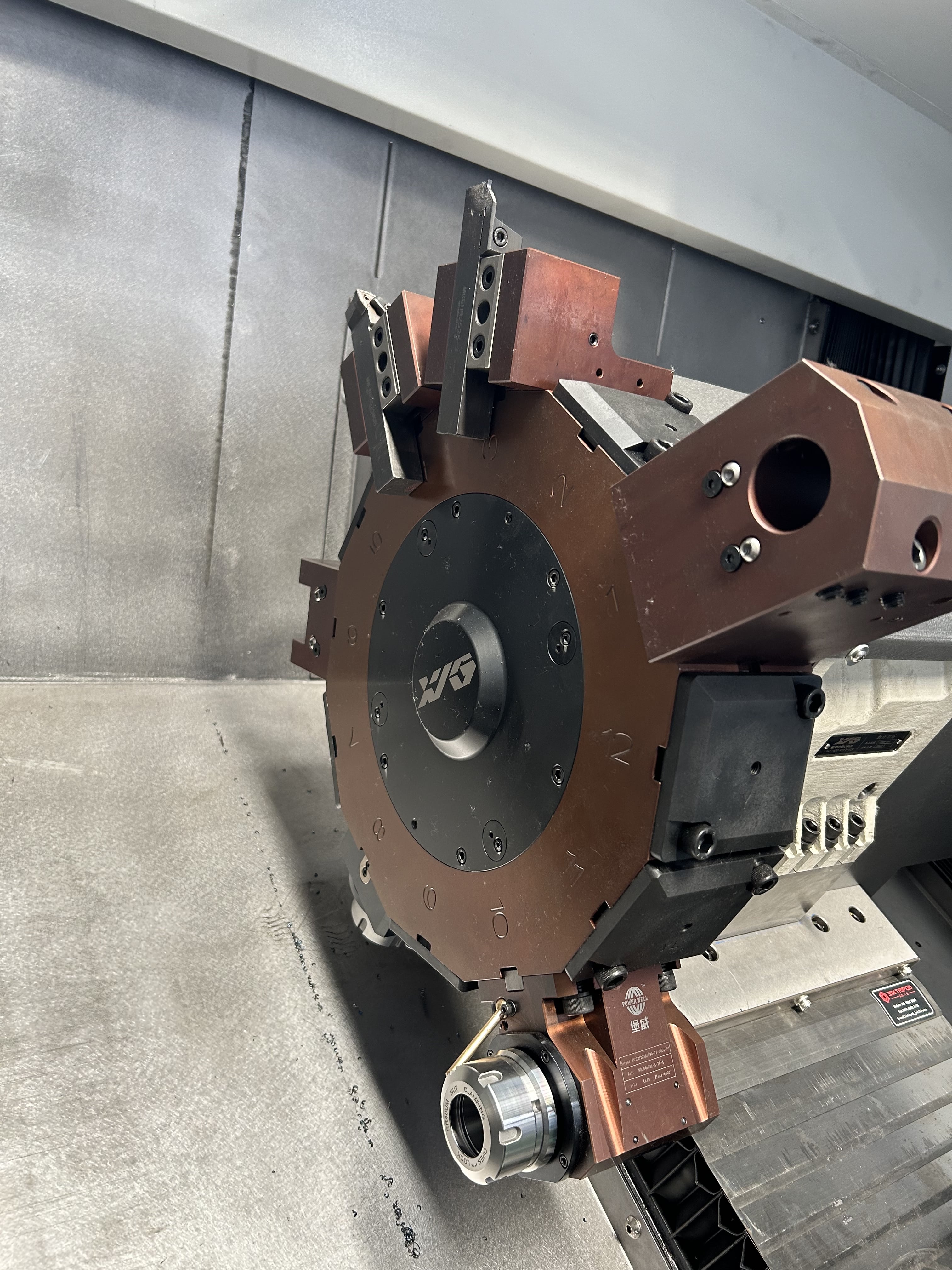

5. Multi-station Turret System

Supports automatic tool changing at multiple stations, expandable with power tools, enabling composite machining such as drilling, milling, and tapping.

6. Automatic Lubrication and Cooling System

The machine is equipped with a centralized lubrication and cutting cooling system, ensuring long-term stable operation.

III. Product Advantages

1. Multi-process machining in a single setup

Reduces the number of setups, minimizes human error, and improves dimensional consistency, making it particularly suitable for mass production.

2. Increased production efficiency by 30%–60%

Composite machining replaces the processing flow of multiple machines, significantly shortening the production cycle.

3. Stable and reliable machining accuracy

High structural rigidity + high-precision linear guides + CNC system control result in higher repeatability.

4. Reduced labor and equipment costs

One machine can replace multiple traditional lathes and milling machines, reducing factory space and labor costs.

5. Suitable for machining complex parts

Can machine parts with complex structures such as inclined holes, threads, grooves, and curved surfaces.

6. Multiple CNC System Options

Supports a wide range of mainstream system configurations, such as Siemens, Fanuc, and GSK, to meet the needs of different customers.

IV. Summary

The ALTCK52D is a multi-functional CNC milling and turning machine tool designed for mid-to-high-end manufacturing industries. With its high-rigidity structure, stable precision, and high-efficiency machining capabilities, it has become an ideal choice for the mass production of automotive parts and hardware, as well as the manufacturing of complex parts.

Specification：
