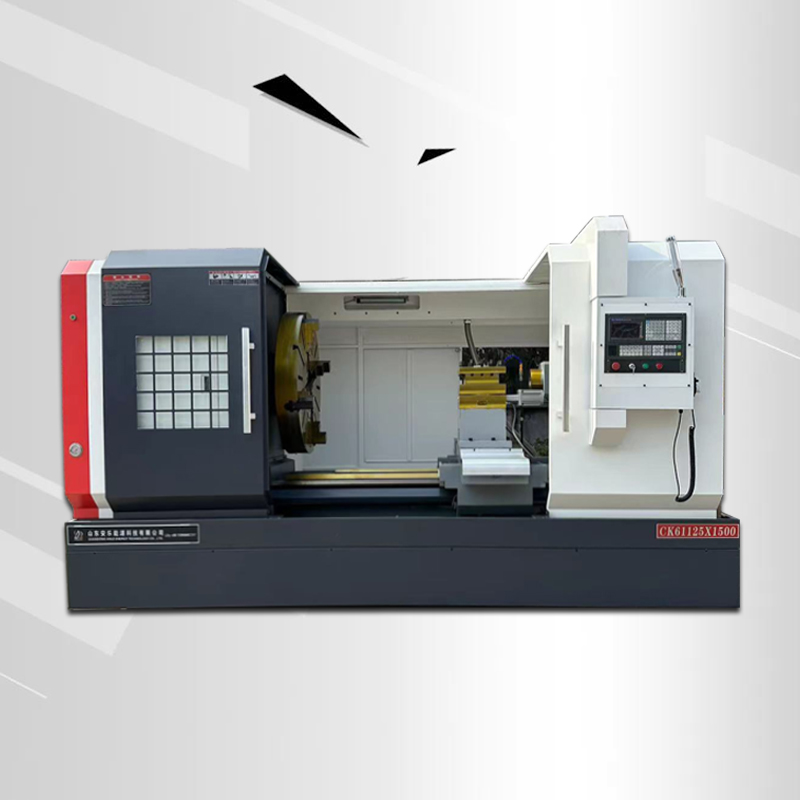

ALCK61125 Heavy Duty CNC Lathe
The ALCK61125 CNC lathe is a heavy-duty flat bed CNC turning machine specially designed for machining large and medium-sized shaft parts, discs, cylinders, and complex metal components. With high rigidity structure, powerful spindle system, and stable machining performance, the machine is widely used in industries such as automotive, mining machinery, petroleum equipment, agricultural machinery, shipbuilding, and general mechanical manufacturing.
Product Introduction
The ALCK61125 CNC lathe is a heavy-duty flat bed CNC turning machine specially designed for machining large and medium-sized shaft parts, discs, cylinders, and complex metal components. With high rigidity structure, powerful spindle performance, and stable machining accuracy, this machine is widely used in industries such as automotive manufacturing, mining machinery, petroleum equipment, agricultural machinery, shipbuilding, and general mechanical processing.
The machine supports efficient rough and finish machining of steel, cast iron, alloy steel, and other metal materials, making it an ideal solution for heavy-duty industrial applications.
Product Features
- Heavy-duty cast iron machine bed with excellent rigidity
- Powerful spindle system for strong cutting capability
- High precision ball screw transmission system
- Stable and reliable CNC control performance
- Suitable for large diameter workpiece machining
- Easy operation and convenient maintenance
- Excellent machining accuracy and surface finish
- Suitable for continuous industrial production
Product Specifications
| Project | Content | Unit | CK61125×1500 |
|---|---|---|---|
| Processing Range | Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 | |
| Maximum processing length | mm | 1500 | |
| Effective processing length | mm | 1350 | |
| Maximum machining diameter | mm | Φ1250 | |
| Maximum bar diameter | mm | Φ630 | |
| Spindle | Spindle through hole diameter | mm | Φ105 |
| Spindle limit speed | rpm | 30-84 / 53-150 / 125-350 / 300-835 | |
| Main motor power (frequency conversion) | kW | 11KW | |
| Feed | X/Z axis travel | mm | 530 / 1500 |
| X/Z axis minimum displacement unit | mm | 0.001 | |
| Tool Holder | Tool holder type | / | 4-station electric tool holder |
| Tool holder size | mm | 40×40 | |
| Tool holder repeatability | mm | ≤0.004 | |
| Tailstock | Tailstock sleeve diameter | mm | Φ100 |
| Tailstock sleeve stroke | mm | 250 | |
| Others | Machine net weight | kg | 5000 |
| Machine dimensions (L×W×H) | mm | 3700×1820×1780 |
Detailed Product Description
High Rigidity Machine Structure
The ALCK61125 adopts a heavy-duty cast iron flat bed structure with reinforced internal ribs, ensuring excellent rigidity, vibration resistance, and long-term stability during heavy cutting operations.
Powerful Spindle Performance
The machine is equipped with a high-torque spindle system and frequency conversion main motor, providing stable speed adjustment and strong cutting capacity for large workpieces and difficult materials.
Precision Feeding System
High-quality ball screws and precision guideways ensure smooth feeding movement, accurate positioning, and stable machining precision throughout long production cycles.

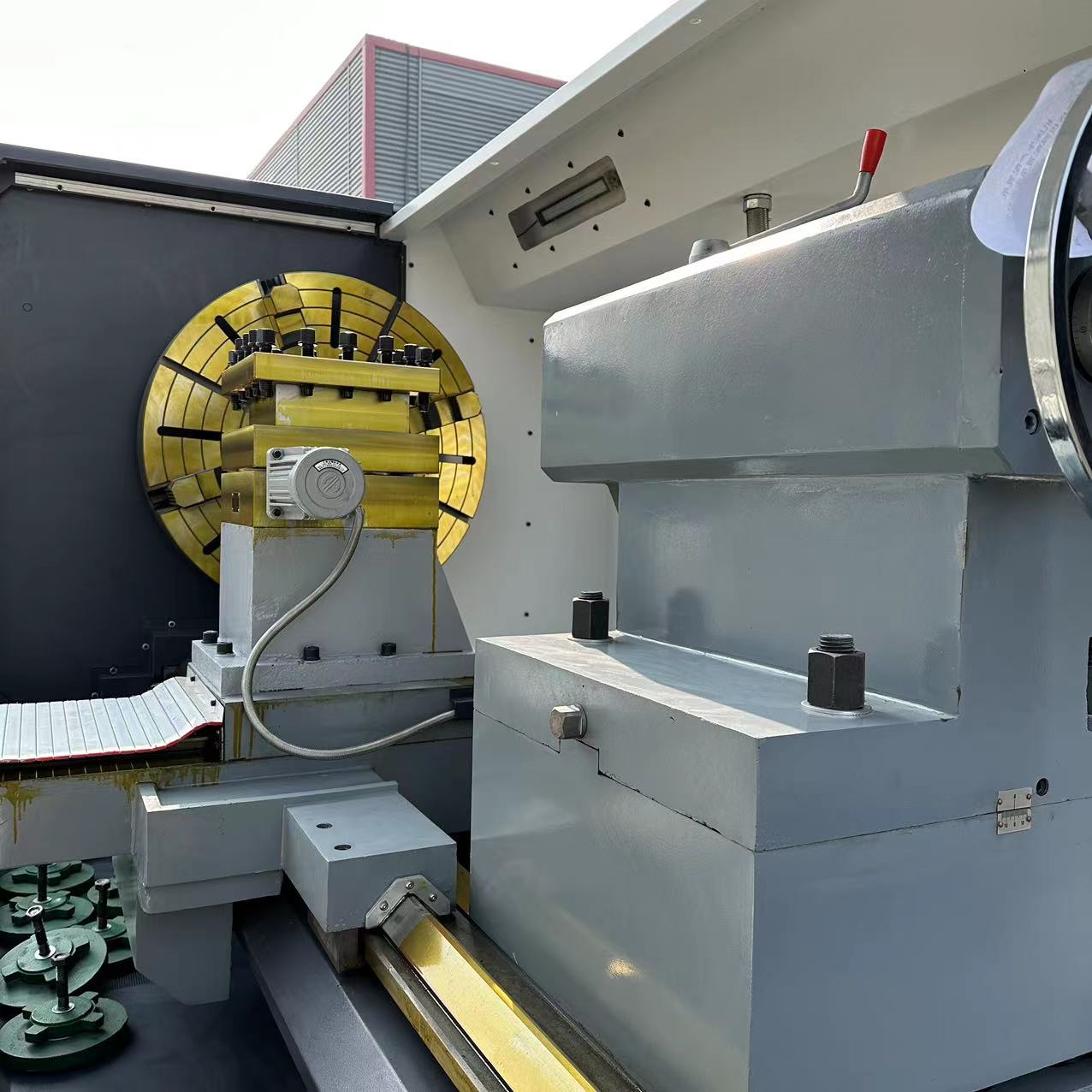

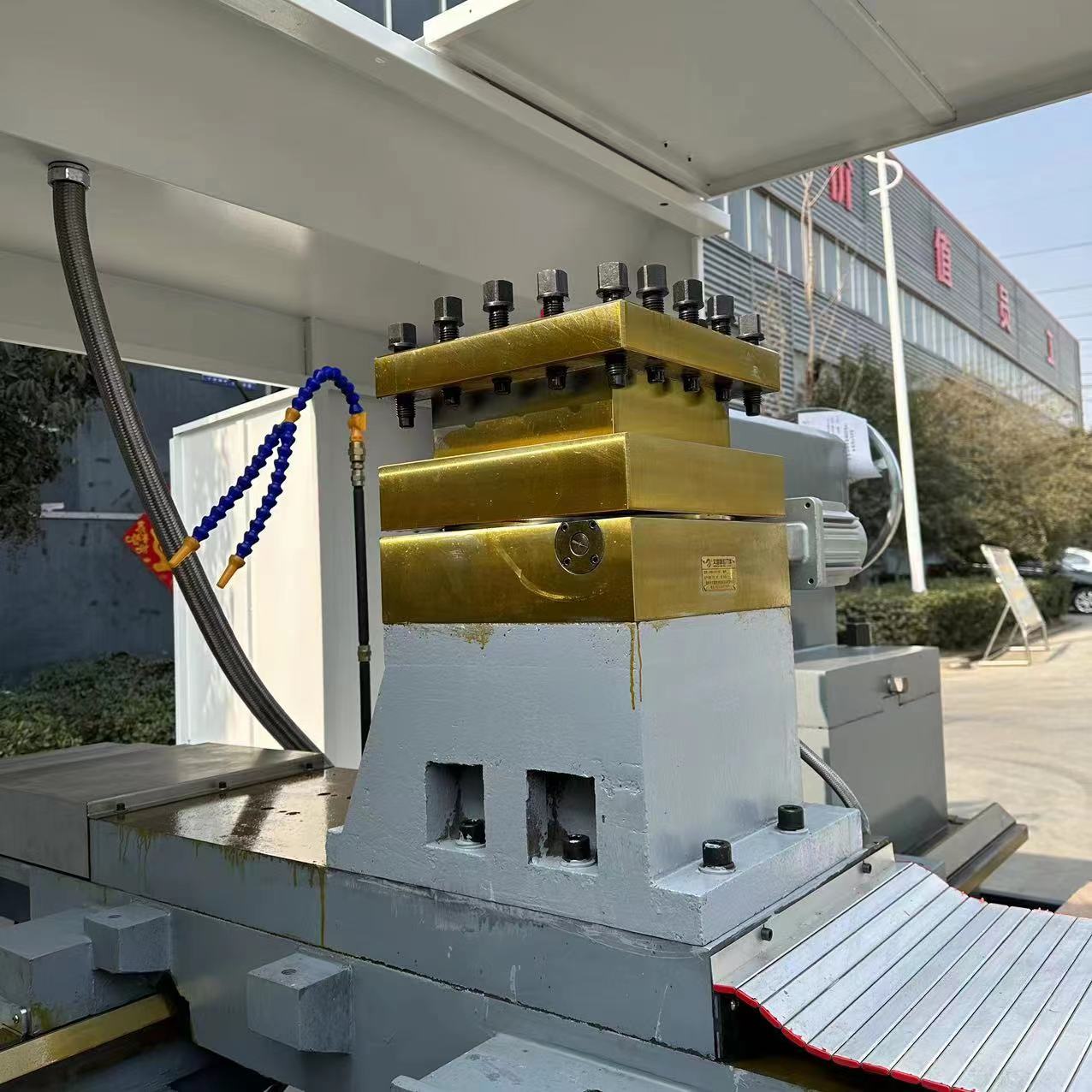

Efficient Tool Holder System
The 4-station electric tool holder enables fast tool changing, improving machining efficiency while maintaining excellent repeatability accuracy.
Wide Industrial Applications
The ALCK61125 CNC lathe is suitable for processing:
- Large shafts
- Hydraulic cylinders
- Pipe fittings
- Flanges
- Heavy mechanical parts
- Rollers
- Mining equipment components
- Industrial transmission parts
Easy Maintenance Design
The machine features a user-friendly structure and centralized lubrication system, reducing maintenance time and improving overall production efficiency.
Application Industries
- Machinery manufacturing
- Automotive parts processing
- Mining machinery industry
- Oil & gas equipment manufacturing
- Agricultural machinery
- Shipbuilding industry
- Metal fabrication workshops
Why Choose ALCK61125 CNC Lathe?
- Stable heavy-duty machining performance
- High precision and efficiency
- Strong cutting capability
- Reliable machine quality
- Competitive factory direct price
- Professional technical support
- Global export experience
The ALCK61125 CNC lathe is an ideal solution for customers seeking high-performance heavy-duty turning equipment with reliable quality and excellent machining capability.
