I. Product Overview

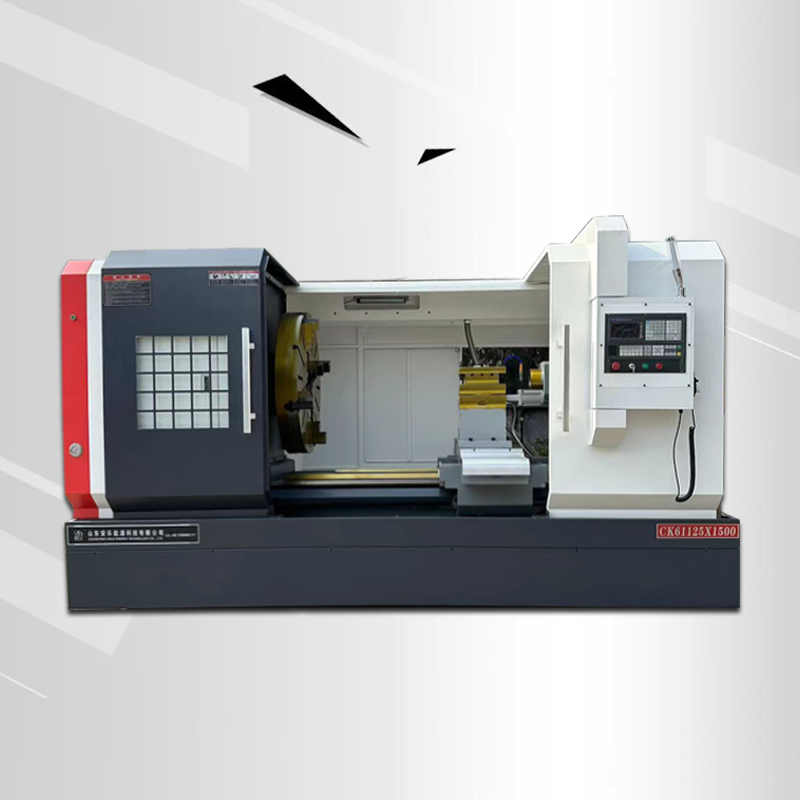

The ALCK61125X1500 CNC Lathe is a high-performance flat bed CNC turning machine designed for precision machining of various metal components, including shafts, discs, sleeves, flanges, and other mechanical parts.
Equipped with a high-rigidity machine structure and advanced CNC control system, the ALCK61125X1500 provides excellent machining accuracy, stability, and production efficiency. The machine is capable of performing multiple turning operations, including external diameter turning, internal boring, end face machining, taper turning, grooving, and thread cutting.
With a maximum processing length of 1500 mm and a maximum cutting diameter of Φ1250 mm, this CNC lathe is especially suitable for machining medium and long workpieces, widely used in mechanical manufacturing, automotive parts production, and precision machining industries.
II. Product Specifications
| Item | Unit | Value |
|---|---|---|
| Max. swing over bed | mm | Φ1250 |
| Max. swing over slide | mm | Φ900 |
| Max. processing length | mm | 1500 |
| Effective processing length | mm | 1350 |
| Max. machining diameter | mm | Φ1250 |
| Max. bar diameter | mm | Φ630 |
| Spindle bore diameter | mm | Φ105 |
| Main motor power (inverter) | kW | 11 |
| X/Z axis travel | mm | 530/1500 |
| X/Z axis rapid traverse | m/min | 4/6 |
III. Main Features
1. High Rigidity Machine Structure
The ALCK61125X1500 adopts a high-strength cast iron bed structure with optimized internal rib design, providing excellent rigidity and vibration resistance during heavy cutting operations.
Advantages:
- Stable cutting performance
- Reduced machining vibration
- Improved surface finish quality
- Extended tool life
- Suitable for continuous production
The rigid machine structure ensures reliable performance when machining steel, stainless steel, alloy steel, and other metal materials.
2. High Precision CNC Machining
The advanced CNC control system enables accurate and efficient automatic machining.
The machine can complete various machining processes:
- External diameter turning
- Internal boring
- End face machining
- Taper turning
- Thread cutting
- Grooving
- Step shaft machining
With a minimum displacement unit of 0.001 mm, the ALCK61125X1500 ensures high machining accuracy and consistent product quality.
3. Powerful Spindle System
The ALCK61125X1500 is equipped with a large spindle hole diameter of Φ100 mm, providing strong machining capability and stable cutting performance.
Advantages:
- Suitable for larger diameter workpieces
- Stable spindle operation
- Strong cutting ability
- Suitable for long-term continuous machining
It is widely used for processing:
- Long shafts
- Flanges
- Sleeves
- Hydraulic components
- Mechanical parts
4. Efficient Long Workpiece Machining
With a maximum processing length of 1500 mm, the ALCK61125X1500 is designed for machining longer workpieces compared with standard CNC lathes.
Applications include:
- Long shafts
- Transmission shafts
- Roller components
- Mechanical support parts
The extended machining range improves production flexibility and expands the application possibilities.
5. Easy Operation and Maintenance
The machine features a user-friendly CNC operation interface and practical structural design.
Benefits:
- Simple operation
- Convenient programming
- Easy maintenance
- Reduced operating costs
It is an ideal solution for manufacturers upgrading from conventional lathes to CNC automated production.
IV. Product Advantages
1. Excellent Cost Performance
The ALCK61125X1500 provides reliable machining performance with competitive investment costs compared with imported CNC lathe brands.
Advantages:
- Lower equipment investment
- Shorter delivery time
- Easier maintenance
- Reliable technical support
2. Wide Application Range
The machine is suitable for:
- Precision machining workshops
- Mechanical manufacturing factories
- Automotive parts manufacturers
- Hydraulic component manufacturers
- Metal processing companies
3. Flexible Configuration Options
The machine can be customized according to customer requirements:
FANUC CNC system
Siemens CNC system
Mitsubishi CNC system
Hydraulic chuck
Automatic chip conveyor
Automatic bar feeder
Different tool holder configurations
V. Application Industries
1. Automotive Industry
Applications:
- Drive shafts
- Transmission components
- Wheel hubs
- Flanges
- Brake system parts
2. Mechanical Manufacturing Industry
Applications:
- Long mechanical shafts
- Gear shafts
- Machine components
- Hydraulic cylinder parts
- Precision mechanical components
3. Oil & Energy Industry
Applications:
- Valve components
- Pipe fittings
- Pump shafts
- Connecting shafts
4. Hydraulic Equipment Industry
Applications:
- Hydraulic cylinder rods
- Hydraulic sleeves
- Precision hydraulic components
5. General Metal Processing Industry
Applications:
- Custom mechanical parts
- Industrial components
- Precision turning parts
VI. Applicable Materials
The ALCK61125X1500 CNC Lathe can process various materials, including:
Ferrous Metals:
- Carbon steel
- Alloy steel
- Cast iron
Non-ferrous Metals:
- Aluminum alloy
- Copper
- Brass
Special Materials:
- Stainless steel
- Titanium alloy (with suitable cutting tools and machining parameters)
VII. Typical Machined Parts
Part Type
Machining Operations
Long shaft parts
External turning, grooving, threading
Flanges
Outer diameter turning, end face machining, drilling
Sleeves
Internal and external turning
Hydraulic components
Precision boring and turning
Transmission shafts
High-precision turning
Industrial parts
Batch production machining
VIII. Customer Value
The ALCK61125X1500 CNC Lathe helps customers achieve:
- ✔ Higher production efficiency
- ✔ Reduced labor dependence
- ✔ Improved machining consistency
- ✔ Expanded production capability for long workpieces
- ✔ Easy upgrade from conventional lathes
- ✔ Faster return on investment
ALCK61125X1500 CNC Lathe is a reliable, high-precision, and cost-effective CNC turning solution designed for long shaft machining, mechanical manufacturing, automotive components, and precision machining applications.
