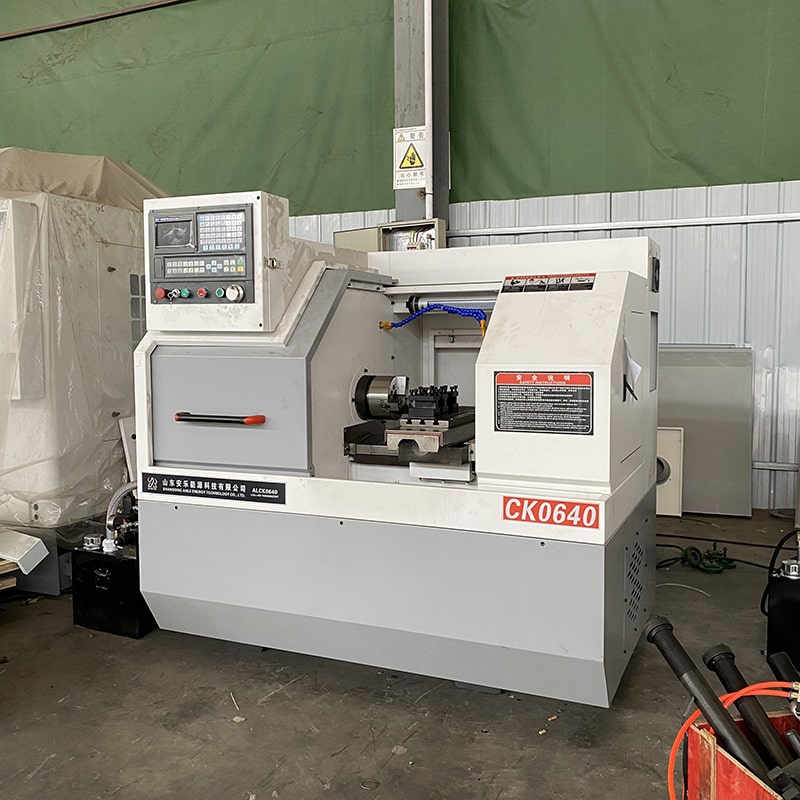

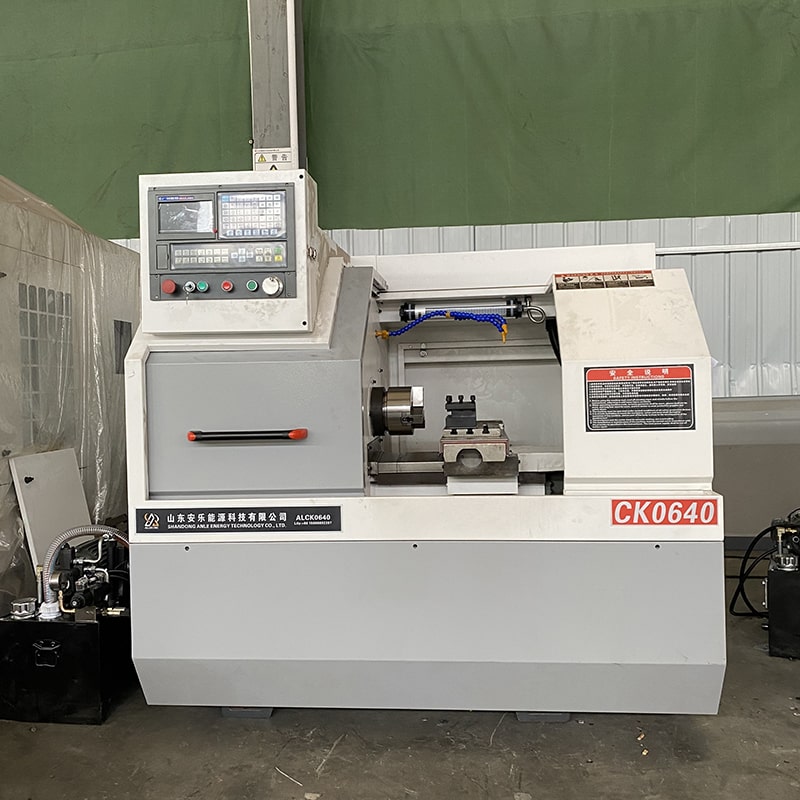

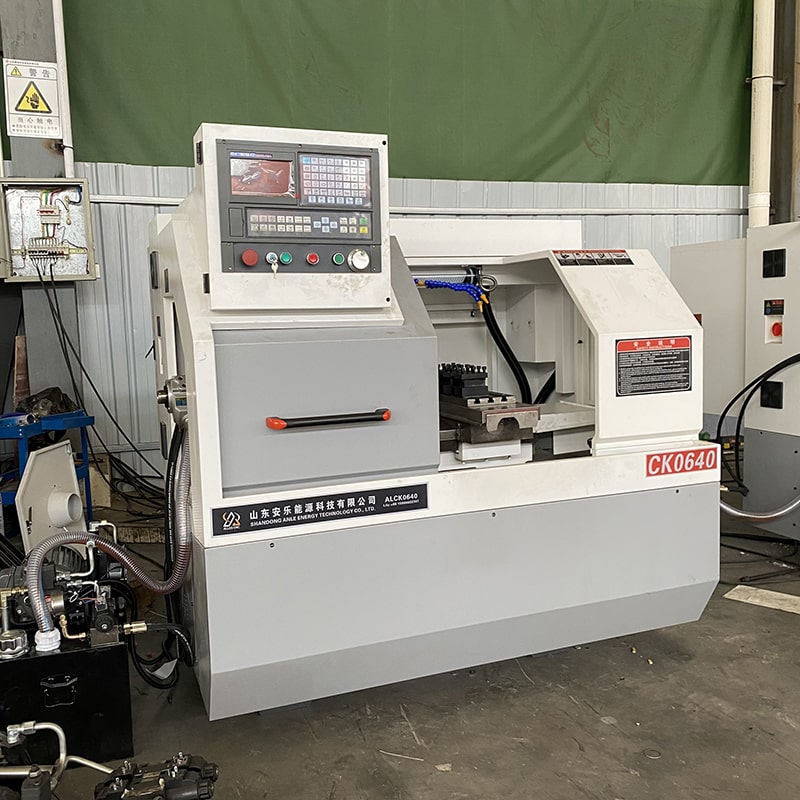

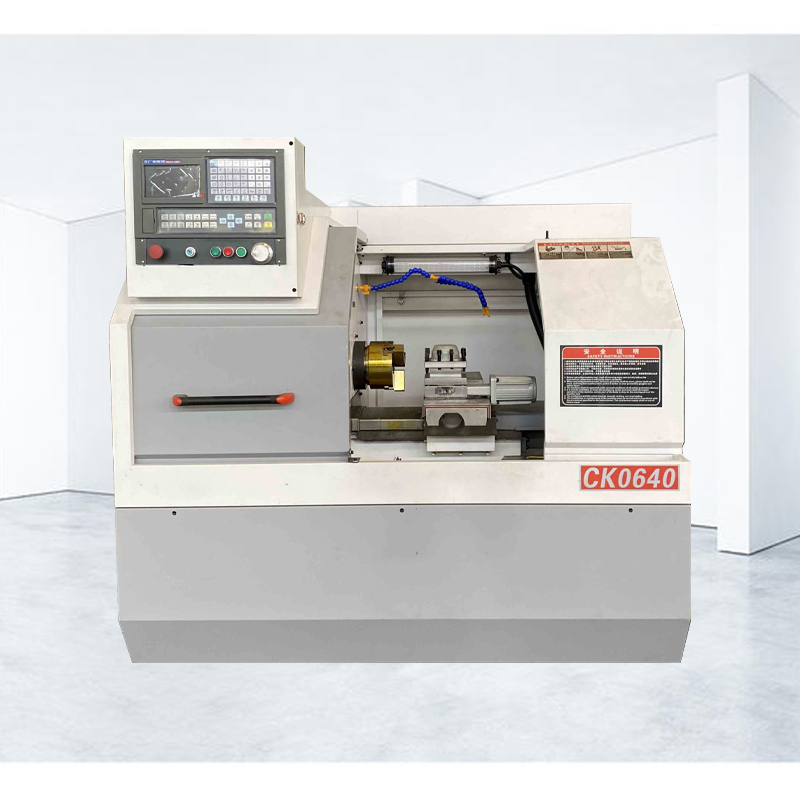

Small CNC lathe ALCK0640
The ALCK0640 CNC lathe is a compact, high-precision, and cost-effective machine tool, ideal for batch production or small part machining. It is commonly used in educational institutions, small factories, and automated production lines.
The CK0640 CNC lathe is a compact metal cutting equipment that is widely used for small batch production as well as educational tasks. Despite the compact size, the product has a high functionality no worse than many full-size machines.
Product Specifications:
| Item | Unit | CK0640 |
| The maximum turning diameter of the bed | mm | Φ250 |
| The maximum turning diameter of the pallet | mm | Φ80 |
| Spindle through hole diameter | mm | Φ48 |
| Through hole diameter of drawing tube | mm | 37 |
| Maximum spindle speed | rpm | 220 |
| Spindle motor power | kw | 3 |
| X-axis maximum travel | mm | 200 |
| Z-axis travel | mm | 220 |
| X-axis rapid feed rate | m/min | 6 |
| Z axis rapid feed rate | m/min | 8 |
| Control system | / | GSK980TB3 |
| Dimensions (length × width × height) | mm | 1640×1200×1650 |
Product advantages:

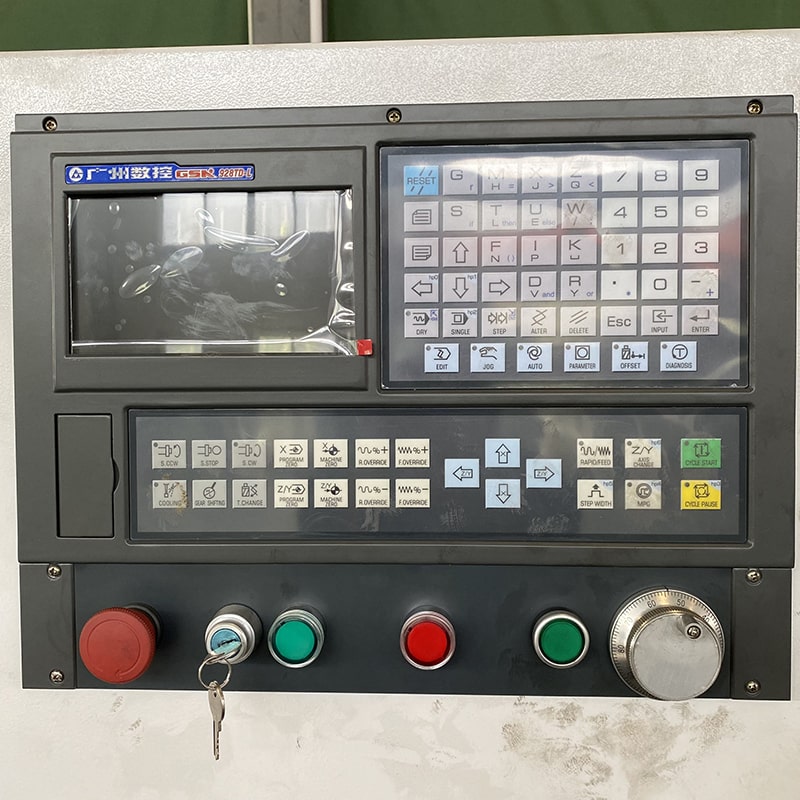

The CK0640 metal turning equipment is equipped with the GSK980T CNC system as standard, but the SIEMENS 808D controller can be installed as an option, as an affordable option for a full-featured CNC system.
This controller can be used in full ISO G-code and loaded with CAD/CAM files, or has a dialog side that allows you to easily enter profiles and cut screws.
