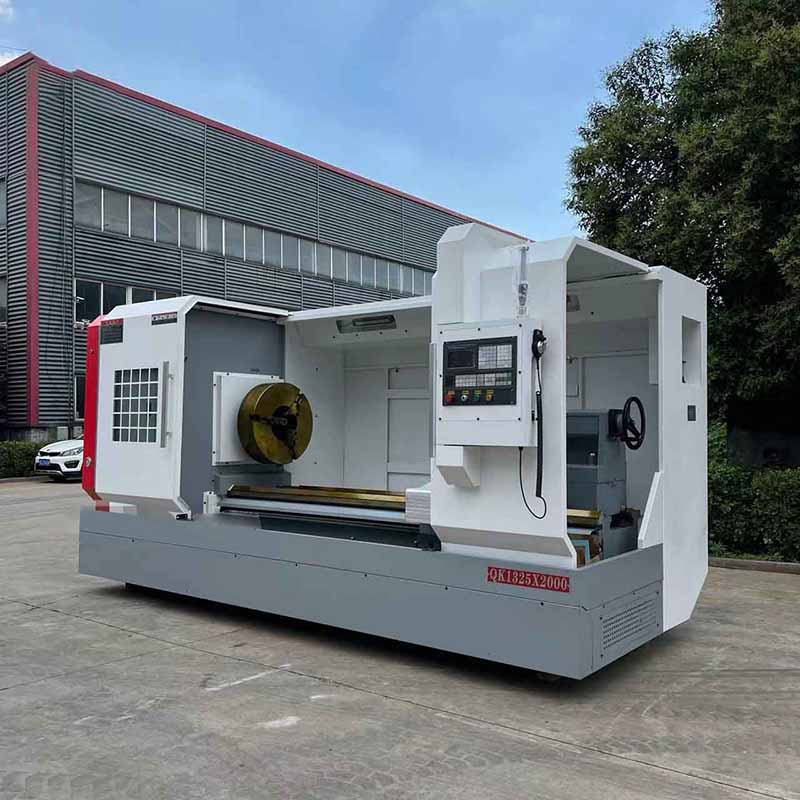

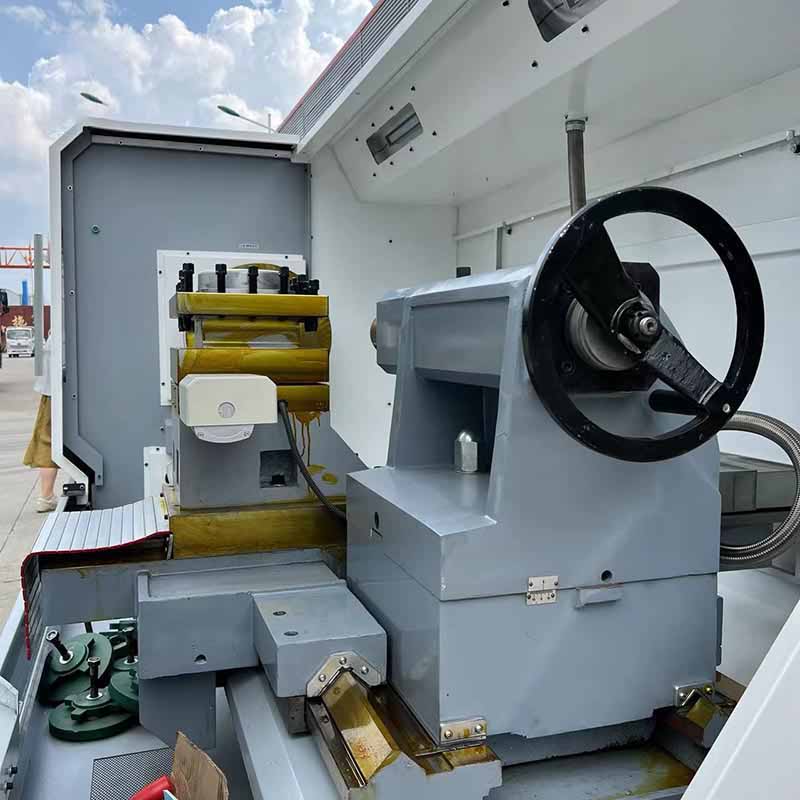

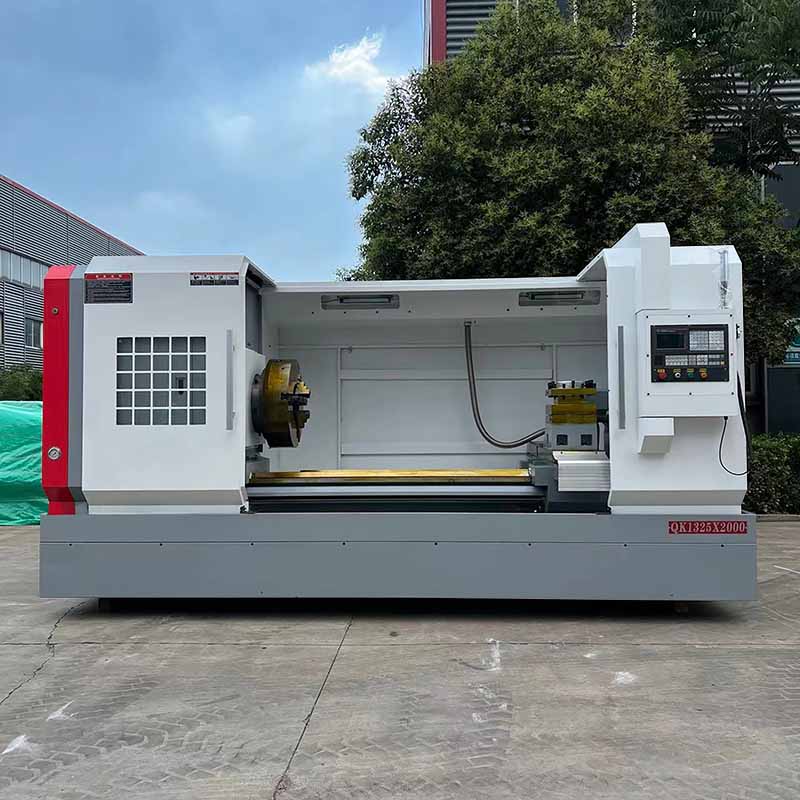

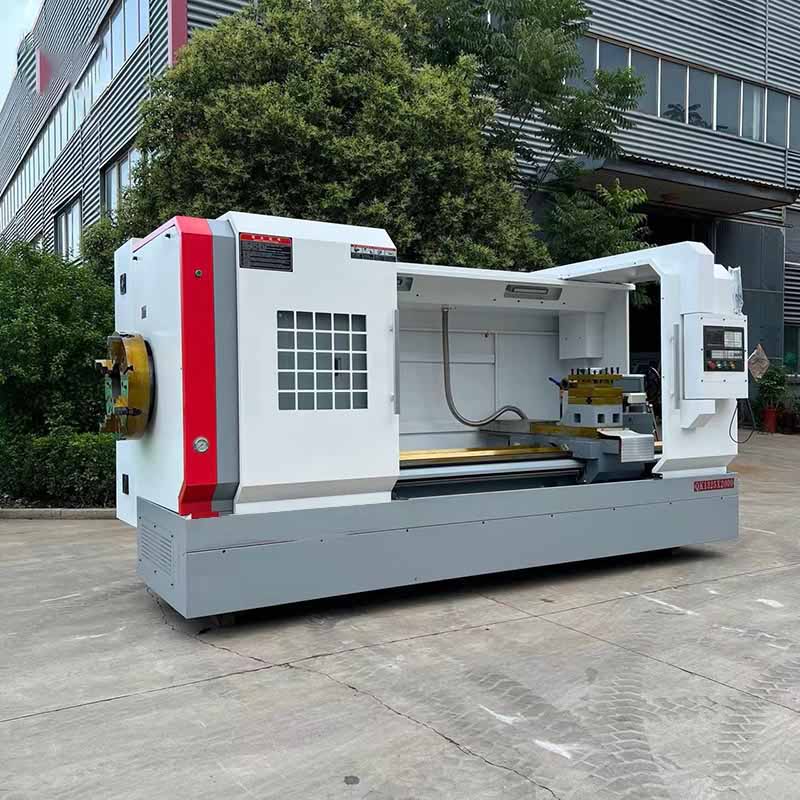

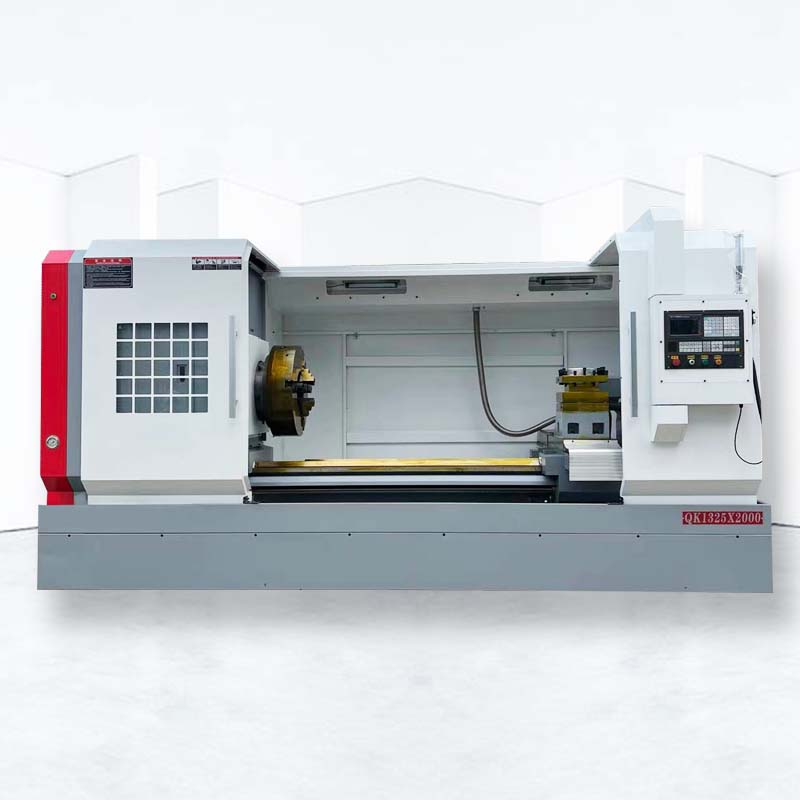

Auto Feed Turning QK1325 CNC Pipe Thread Lathe for Pipeline Industry
The QK1325 CNC pipe thread Lathe is a type of lathe machine designed specifically for turning pipes and threading them with precision. The machine is equipped with a specialized automatic feeding system, which allows for efficient and accurate pipe cutting and threading.
The auto feed turning feature of the QK1325 CNC Pipe Thread Lathe allows for continuous and uninterrupted operation, resulting in increased productivity and efficiency. The machine is also designed to handle a wide range of pipe diameters and lengths, making it a versatile tool for industrial and manufacturing applications.
In addition to its auto feed turning capabilities, the QK1325 CNC Pipe Thread Lathe also features a user-friendly interface, making it easy to operate and control. The machine can be programmed to perform a variety of pipe turning and threading operations, and its high precision and accuracy ensure consistent and reliable results.
Product Specifications:
| Specification | Unit | QK1325 |
| Swing over bed | mm | 800 |
| Distance between centers | mm | 1000/1500/2000/3000 |
| Guideway width | mm | 50-255 |
| Max. load capacity | mm | 600 |
| Spindle bore taper | mm | 255 |
| X axis travel | mm | 420 |
| Z axis travel | mm | 750/1250/2750 |
| X axis rapid traverse | mm/min | 4000 |
| Z axis rapid traverse | mm/min | 6000 |
| Tailstock quill diameter | mm | 120 |
| Tailstock quill taper | / | MT6 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kw | 15 |
| Coolant pump motor | kw | 0.125/0.37 |
| Net weight | T | 6.0/6.5/7.5 |
The application of CNC pipe thread lathes in the pipeline industry:
The application of CNC pipe thread lathes in the pipeline industry is very extensive. Pipelines are an indispensable part of the industry, used for conveying liquids, gases, powders, and other substances. The manufacture of pipelines requires various specifications of threads. Traditional pipe threading methods often require manual operation, which is inefficient and prone to errors. However, CNC pipe thread lathes can achieve efficient and precise pipe threading through computer control, greatly improving production efficiency and product quality.
CNC pipe thread lathes can process various materials of pipes, including steel pipes, aluminum pipes, copper pipes, etc. Its processing capability is also very powerful, and can process various types of threads, such as internal threads, external threads, metric threads, and imperial threads. At the same time, CNC pipe thread lathes can also achieve multiple processing methods, such as turning, boring, and tapping.
In the pipeline industry, CNC pipe thread lathes are mainly used for pipe fitting and valve machining. Its efficient and precise processing capability can greatly improve the processing quality and production efficiency of pipe fittings and valves. At the same time, CNC pipe thread lathes can also be used with automatic feeding manipulators and other equipment to achieve fully automated pipe fitting production lines. For enterprises producing large quantities of pipe fittings, this will greatly improve their competitiveness and production efficiency.
In summary, CNC pipe thread lathes have a very broad application prospect in the pipeline industry. With the continuous development of the pipeline industry and the increasing demand, CNC pipe thread lathes will gradually develop and grow, and play an increasingly important role in the pipeline industry.
