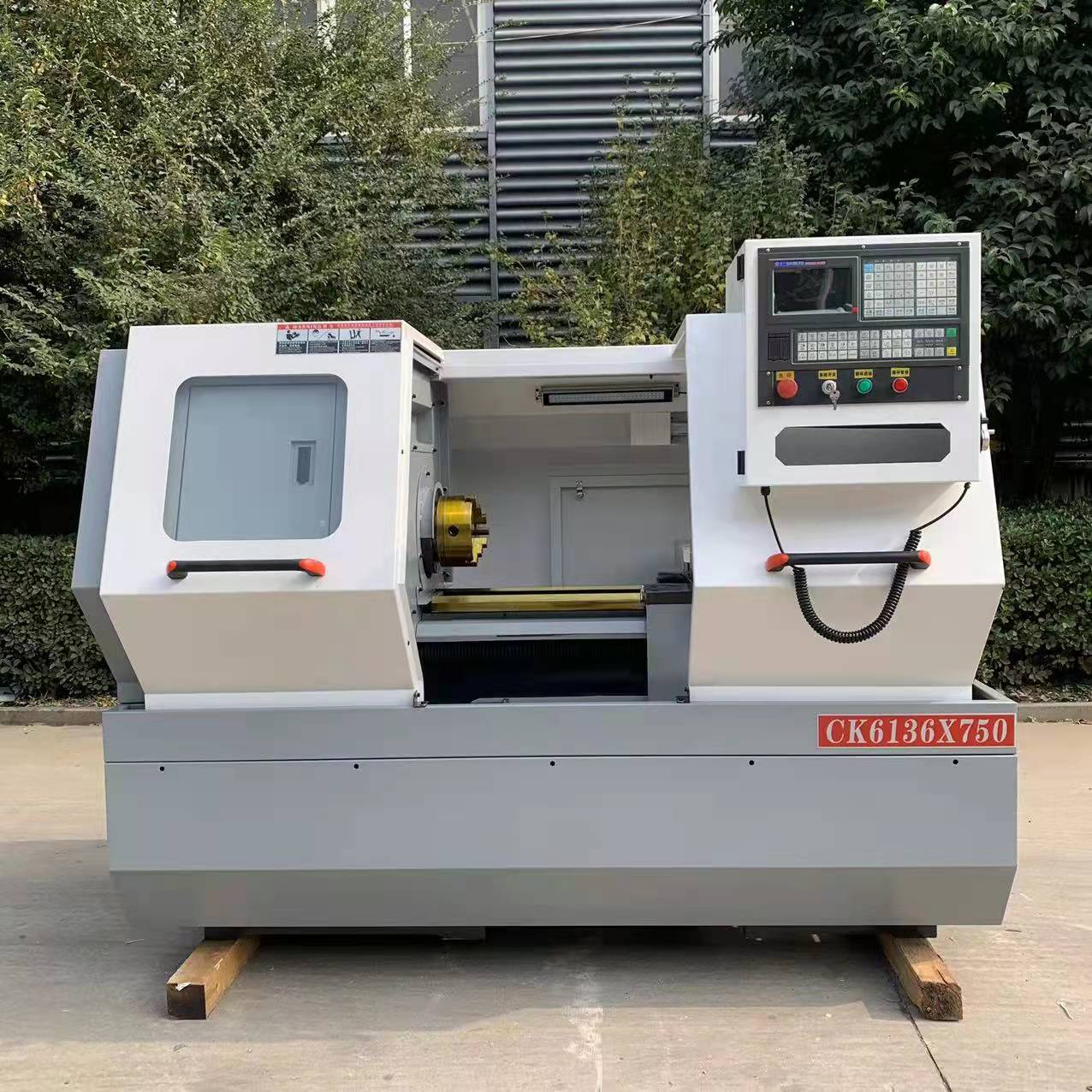

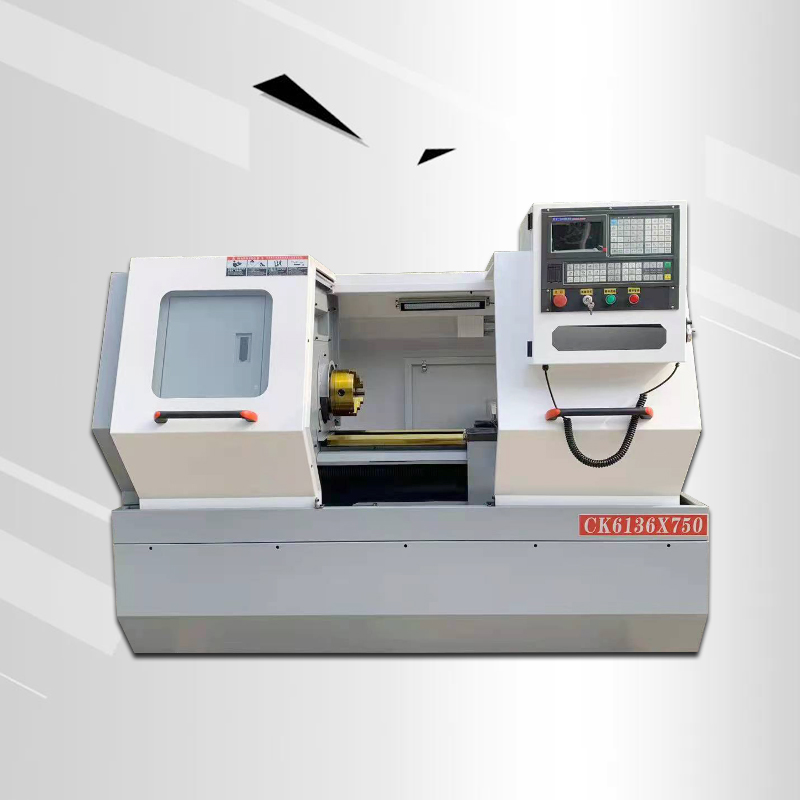

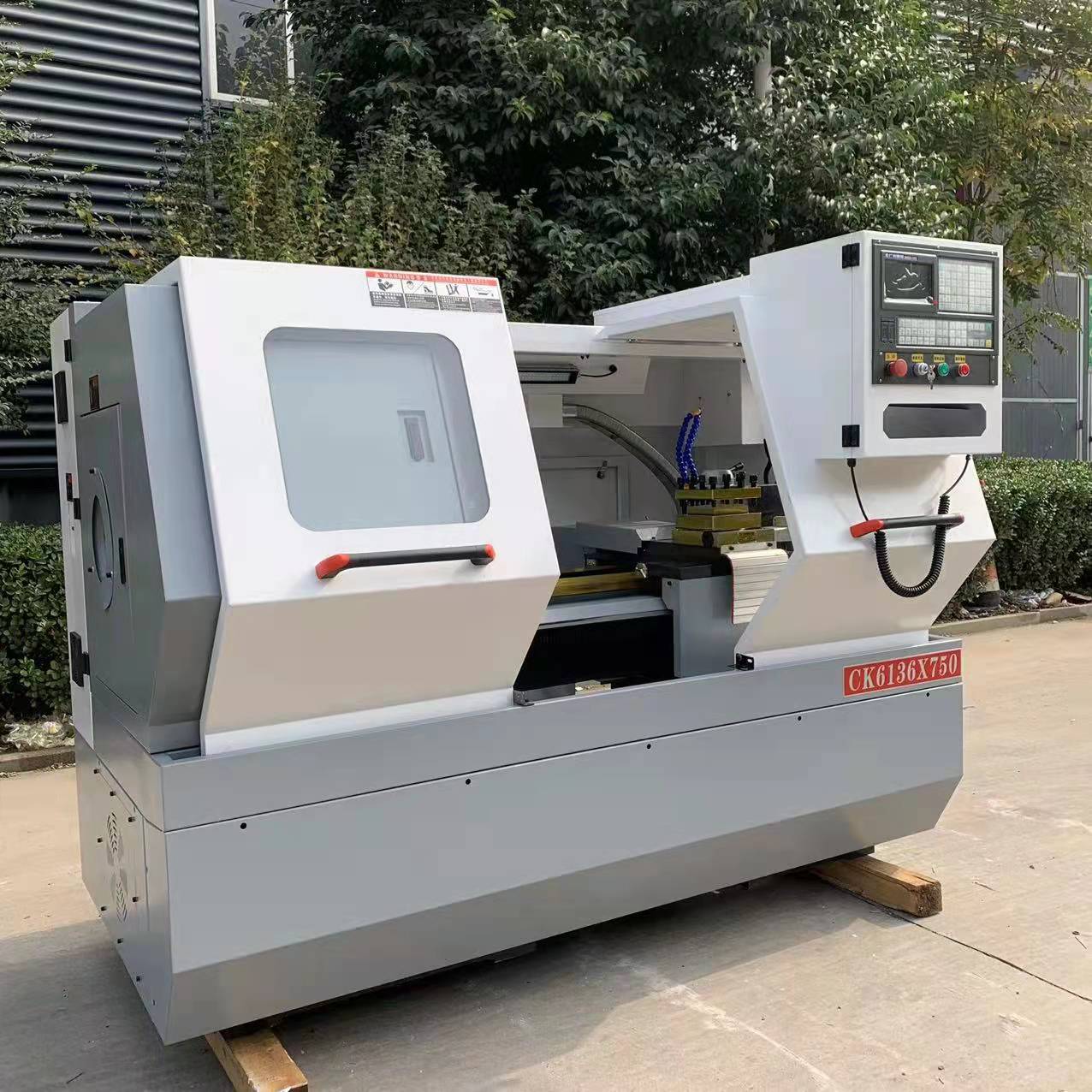

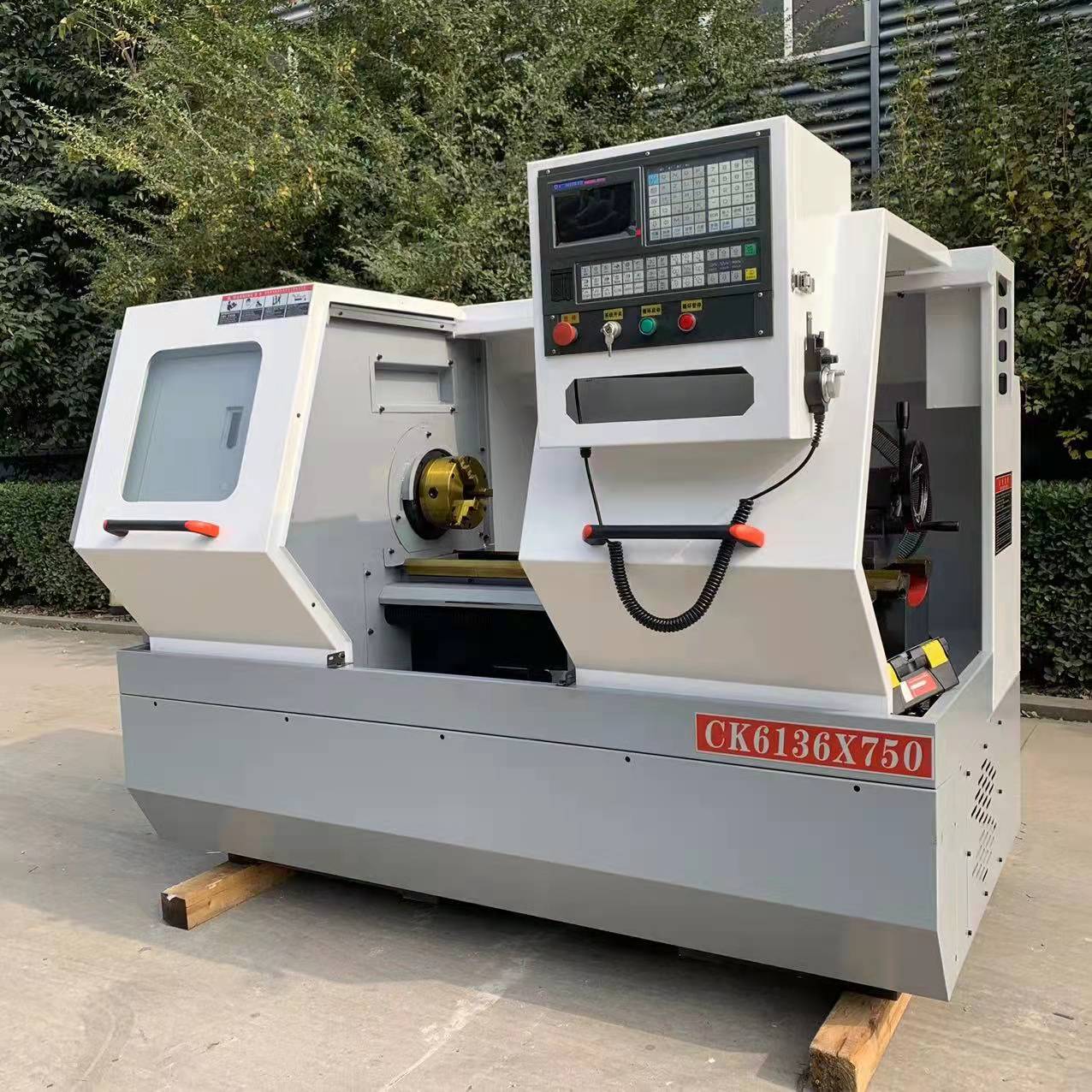

CNC Metal Turning Lathe Machine CK6136
CNC Metal Turning Lathe Machine CK6136x750:
Maximum workpiece length between two centers: 750mm
Max swing over bed: 360mm
Spindle through hole diameter: 52mm
Overall dimensions of machine tool: 2350×1380×1640mm
Model CK6136 is a full-featured CNC normal precision lathe designed and engineered using foreign advanced technology.
We offer to buy a small-sized CNC lathe CK6136 at an affordable price.
Product Advantage:
CNC metal turning machine CK6136x750 can be equipped with four brands of controllers to choose from. They are GSK/Germany Siemens/Japan Mitsubishi/Japan FANUC, and they all have rich functionality.
To increase the accuracy of processing parts, the quality of the surface on the machines of this series, a tailstock is installed. Thereby providing high reliability of fixing of long preparations.
Designed for quick clamping of bars and workpieces of cylindrical and other sections (square, hexagonal, etc.)
Centering accuracy is ensured by elastically deformable clamping elements (cams) moving simultaneously in the working space.
Larger spindle bore.
Quality solid casting.
High torque and speed.
Automatic lubrication system.
Processing of long parts.
Reinforced guides.
Product Specifications:
| Item | Unit | CK6136x750 |
| Max swing over bed | mm | Φ360 |
| Maximum turning diameter on the tool post | mm | Φ200 |
| Maximum workpiece length between two centers | mm | 750 |
| Spindle through hole diameter | mm | Φ52 |
| Spindle speed range | r/min | 2200 |
| Spindle motor power | kw | 5.5 |
| Tool handle size | mm | 20×20 |
| X stroke | mm | 200 |
| Z stroke | mm | 750 |
| Rapid traverse speed | mm/min | X: 6000 Z: 8000 |
| Feed speed range | mm/min | X: 1～2000 Z: 1～2000 |
| Minimum setting unit | mm | 0.01 |
| Tailstock sleeve diameter | mm | 60 |
| Tailstock sleeve stroke | mm | 100 |
| Chuck | / | 200 Three-jaw manual chuck |
| Overall dimensions of machine tool (length×width×height) | mm | 2350×1380×1640 |
| Net weight | kg | 1600 |
| CNC control system | / | GSK980TB3 |
