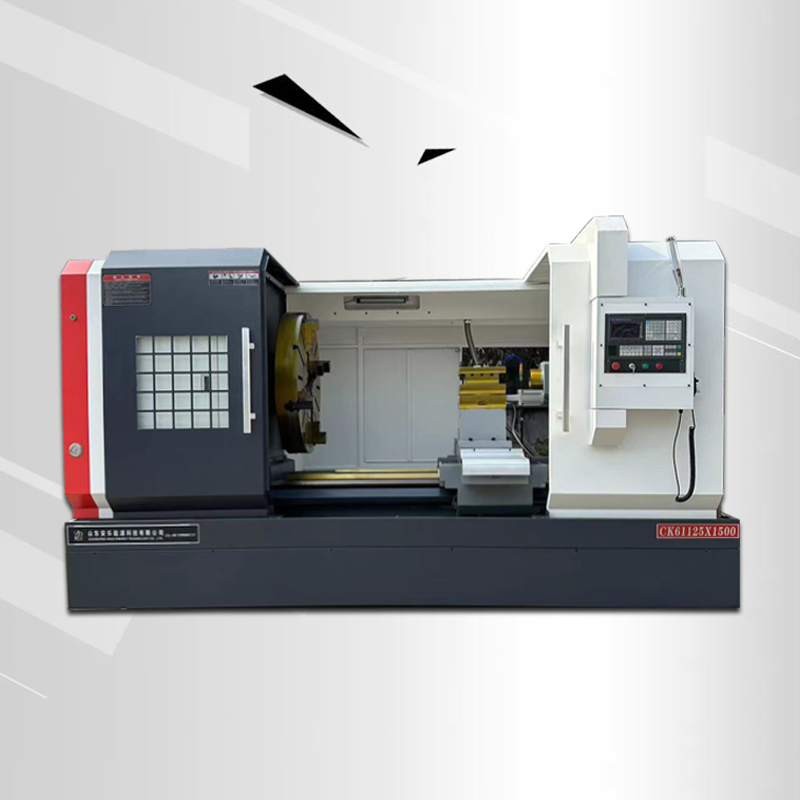

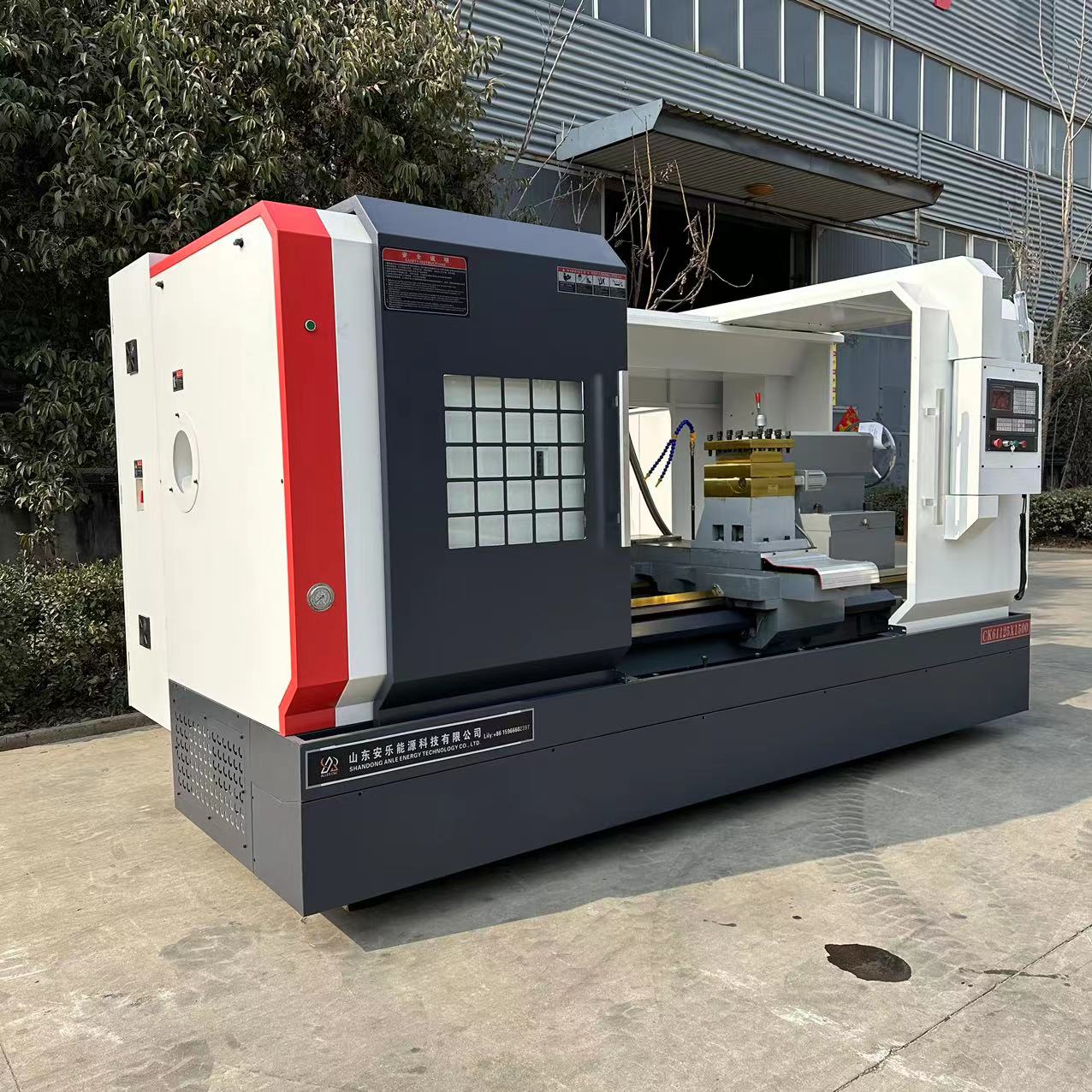

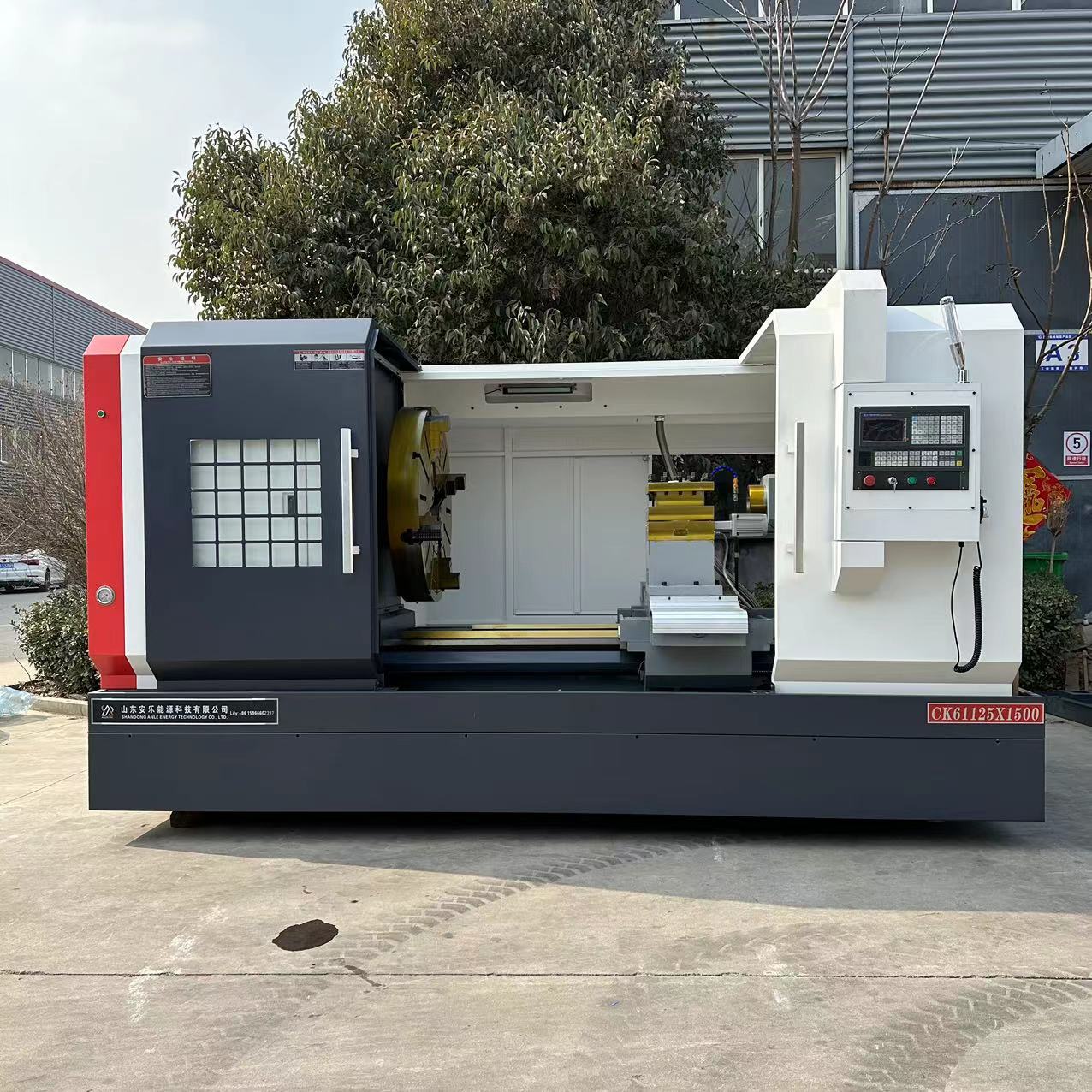

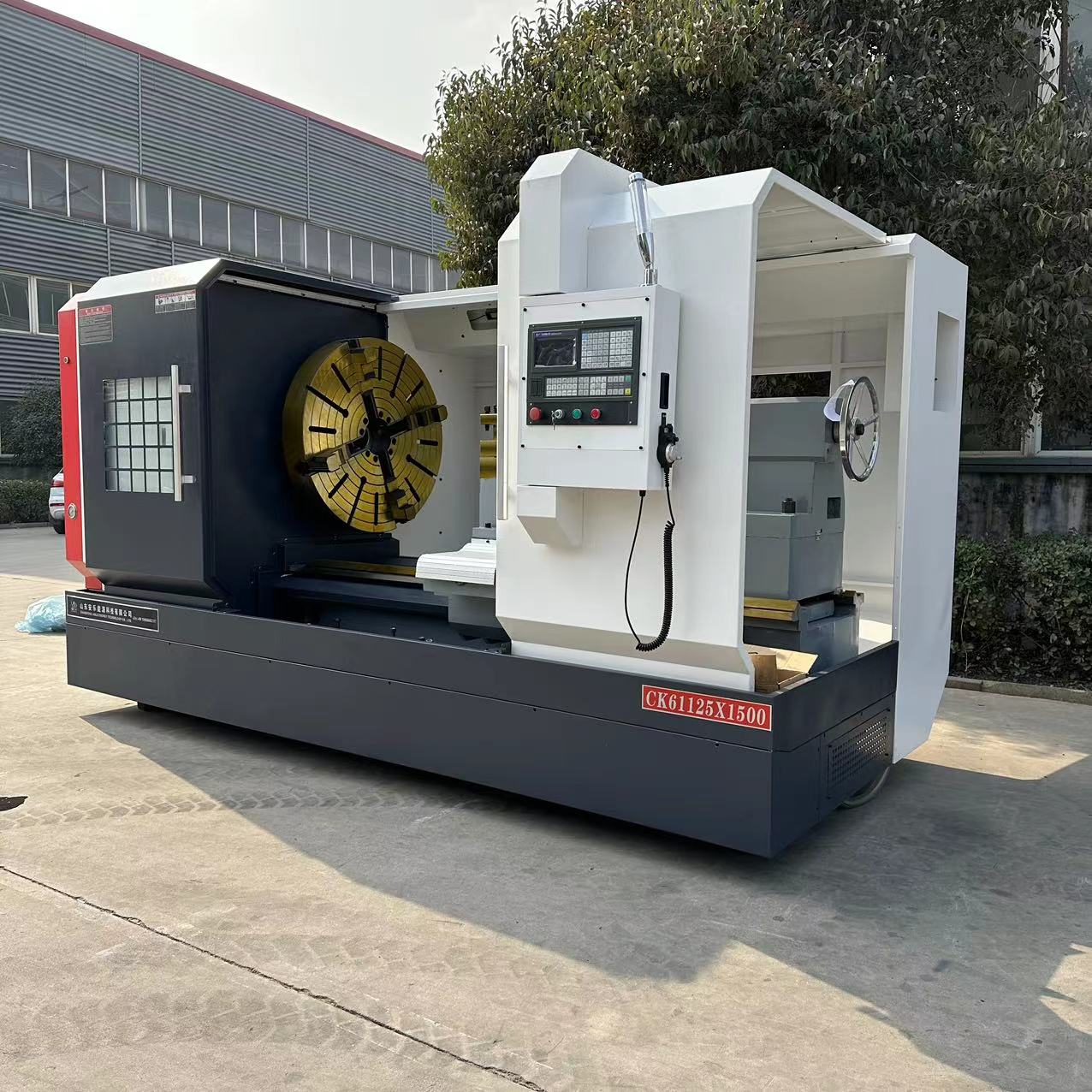

CK61125 Heavy Duty Horizontal CNC Metal Lathe Machine
CK61125x1500 Heavy Duty Horizontal CNC Metal Lathe Machine:
Maximum processing length: 1500mm
Maximum machining diameter: 1250mm
Spindle through hole diameter: 105mm
Machine tool dimensions (length × width × height): 3700x1820x1780mm
CK61125 The bed is adopted high strength cast iron, after 3-time tempering so that it has high rigidity and vibration resistance.
Product Features:
1.With feeding motor and leadscrew for type of direct connection, it can assure the machining precision and positioning accuracy.
2.Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
3.Headstock adopts oil bath circulating lubrication to reduce thermal deformation;

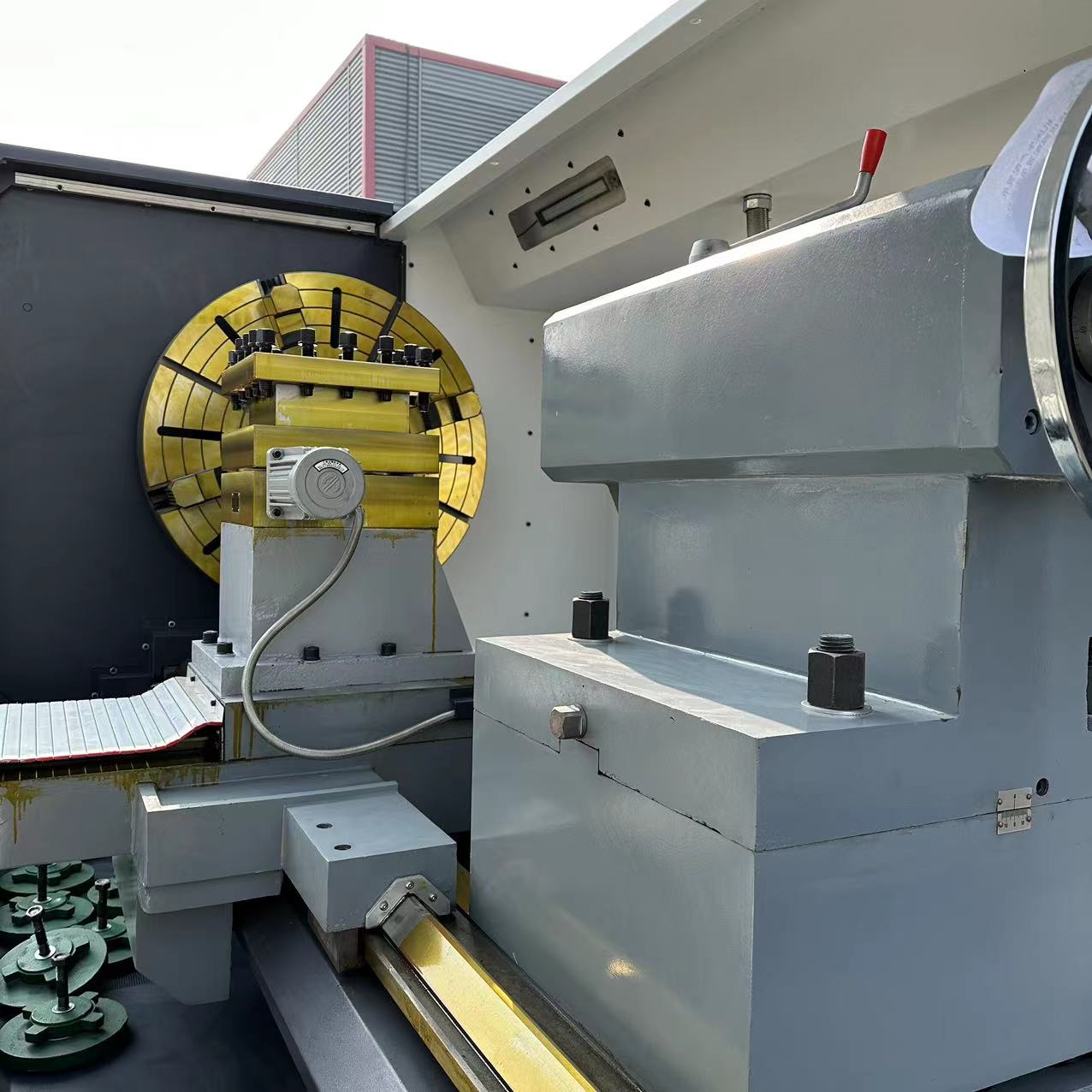

4.Frond end of the spindle adopts three-supporting structure of two-way angular in touch with the ball bearing to improve its accuracy and enhance its rigidity;
5.Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
Product Specifications:
| Project | Content | Unit | CK61125x1500 |
| Processing range | Maximum turning diameter on the bed slide | mm | Φ1250 |
| Maximum turning diameter on the skateboard | mm | Φ900 | |
| Maximum processing length | mm | 1500 | |
| Effective processing length | mm | 1350 | |
| Maximum machining diameter | mm | Φ1250 | |
| Maximum bar diameter | mm | Φ630 | |
| Spindle | Spindle through hole diameter | mm | Ф105 |
| Spindle limit speed | rpm | 30-84/53-150/125-350/300-835 | |
| Main motor power (frequency conversion) | kW | 11KW | |
| Feed | X/Z axis travel | mm | 530/1500 |
| X/Z axis minimum displacement unit | mm | 0.001 | |
| Tool holder | Tool holder type | / | 4-station electric tool holder |
| Tool holder size | mm | 40*40 | |
| Tool holder repeatability | mm | ≤0.004 | |
| Tailstock sleeve diameter | mm | Φ100 | |
| Tailstock sleeve stroke | mm | 250 | |
| Others | Machine net weight | kg | 5000 |
| Machine tool dimensions (length × width × height) | mm | 3700*1820*1780 |
