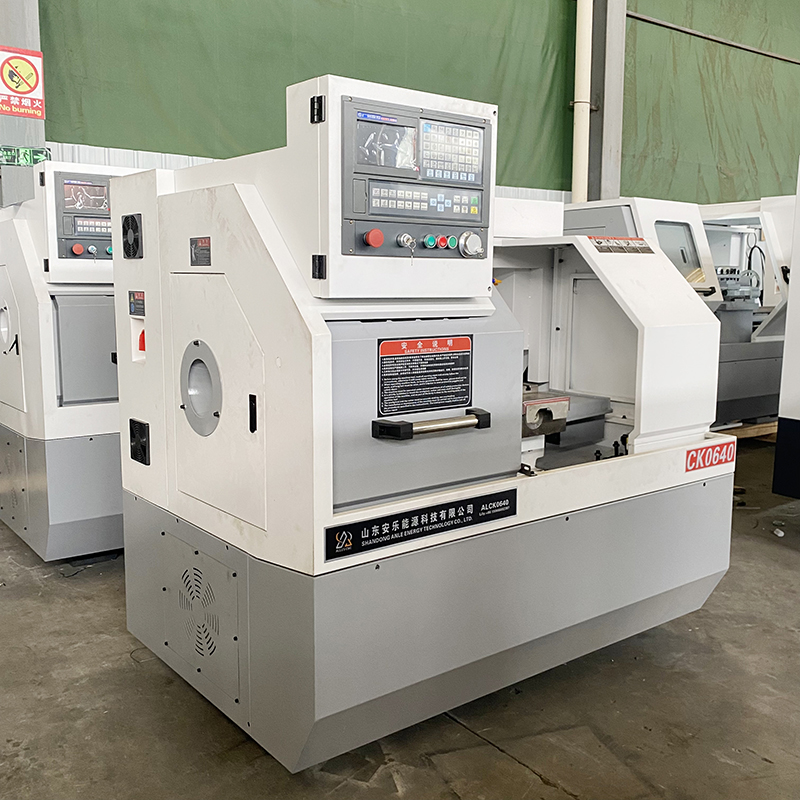

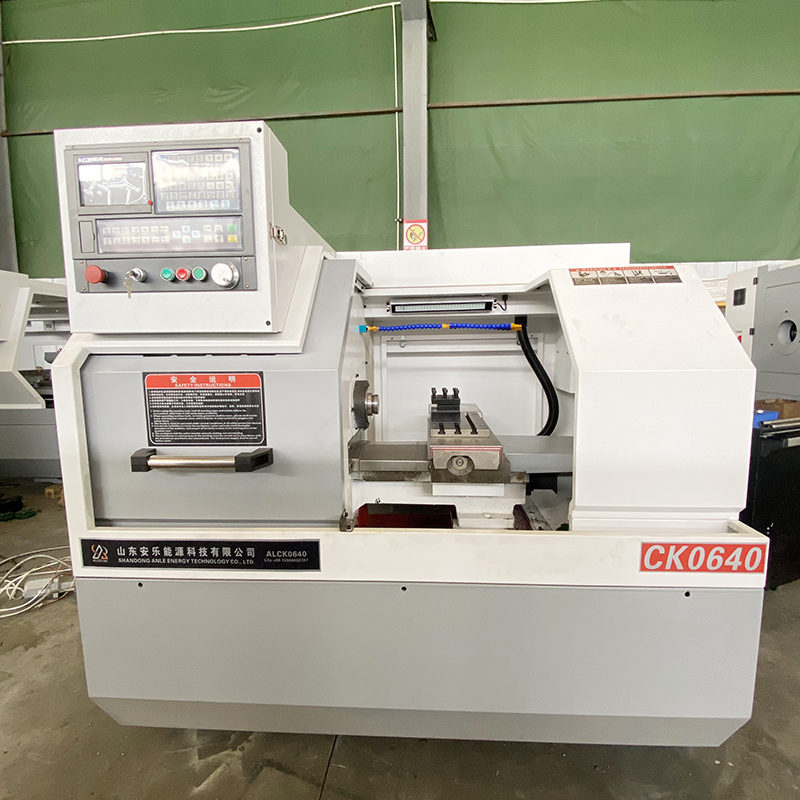

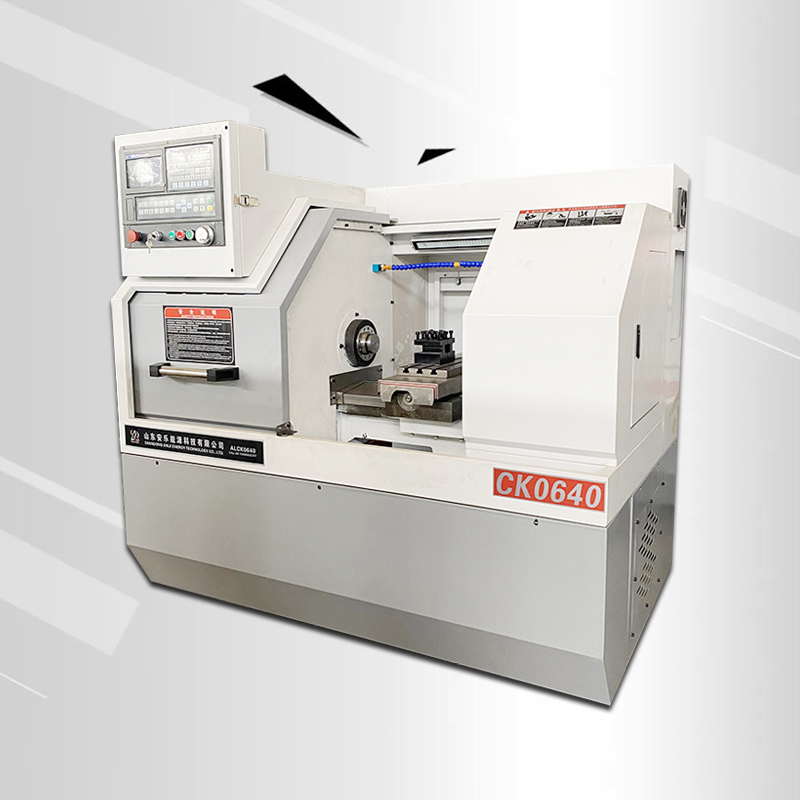

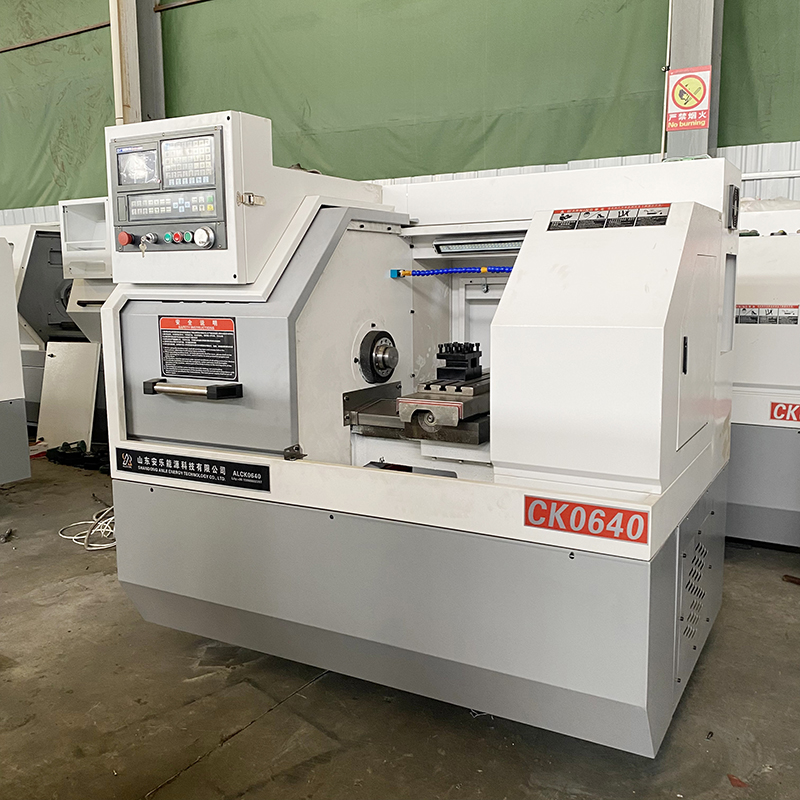

CK0640 Mini CNC Lathe Production Machine
CK0640 Mini CNC Lathe Production Machine:
The CK0640 CNC lathe is a compact metal cutting equipment that is widely used for small batch production as well as educational tasks. Despite its compact dimensions, the product has a high functionality, no worse than many full-size machines.
CNC mini turning machine CK0640.
All castings are made of ductile iron, annealed to eliminate internal residual stresses. The feed motor connects directly to the ball screw with a medium fit.
The guide beds are subjected to high frequency heat treatment, precision grinding, etc. to ensure stability when working at high speeds or deep cuts.
The spindle and pinion are made of CR-MO alloy steel, carburized and finely ground, pressure lubricated and oil bath, combined in the headstock. 3-point spindle bearing with two tapered roller bearings and one roller bearing for precision and rigidity. The spindle speed is stepless. Full protection of the electrical circuit and equipment of the machine. Automatic oil lubrication. Pneumatic collet.
Additional configuration: X / Z stepper motor; choice of manual or hydraulic chuck; hydraulic collet; tool holder for 4 or 6 incisors; automatic wire feeder.
Product Specifications:
| Item | Unit | CK0640 |
| The maximum turning diameter of the bed | mm | Φ250 |
| The maximum turning diameter of the pallet | mm | Φ80 |
| Spindle through hole diameter | mm | Φ48 |
| Through hole diameter of drawing tube | mm | 37 |
| Maximum spindle speed | rpm | 220 |
| Spindle motor power | kw | 3 |
| X-axis maximum travel | mm | 200 |
| Z-axis travel | mm | 220 |
| X-axis rapid feed rate | m/min | 6 |
| Z axis rapid feed rate | m/min | 8 |
| Tool holder form | / | Row tool holder |
| Specification of turning tool | mm | 20 |
| Clamping device | mm | Pneumatic collet |
| X-axis repeated positioning accuracy | / | 0.01 |
| Z-axis repeatability accuracy | / | 0.01 |
| Dimensions (length × width × height) | mm | 1640×1200×1650 |
| Machine weight | kg | 800 |
CK0640 CNC Lathe CNC system:
The CK0640 metal turning equipment is equipped with the GSK928TEA CNC system as standard, but the SIEMENS controller can be installed as an option, as an affordable option for a full-featured CNC system. This controller can be used in full ISO G-code and loaded with CAD/CAM files, or has a dialog side that allows you to easily enter profiles and cut screws.
