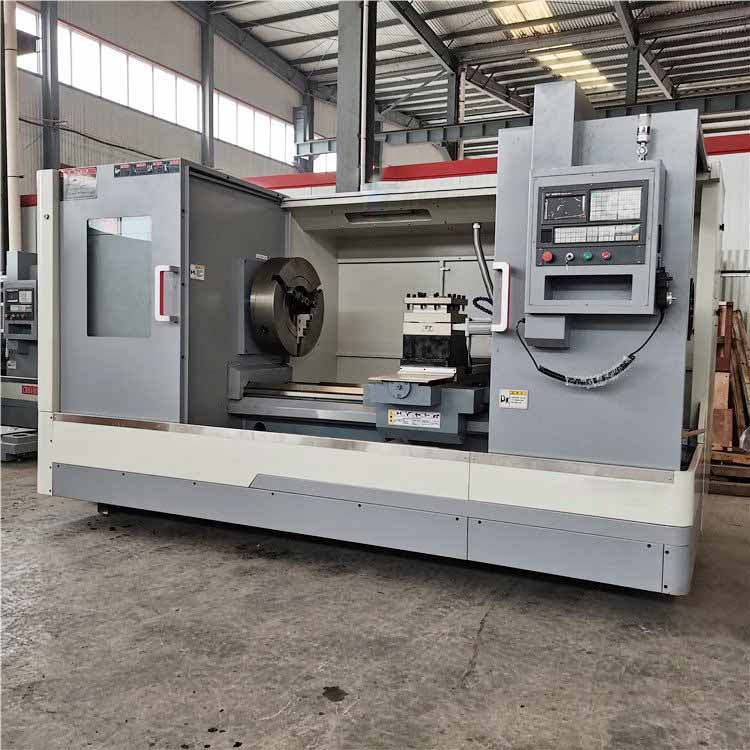

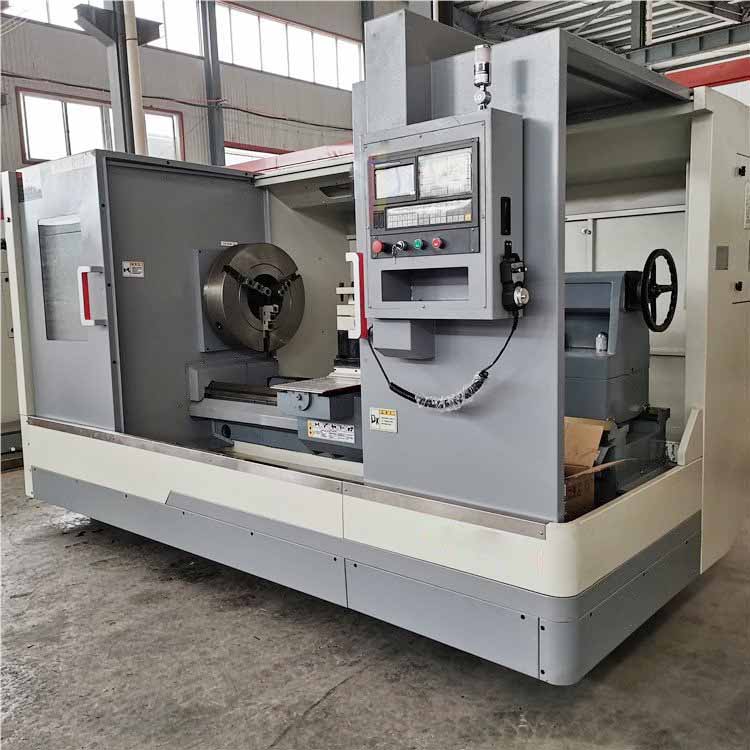

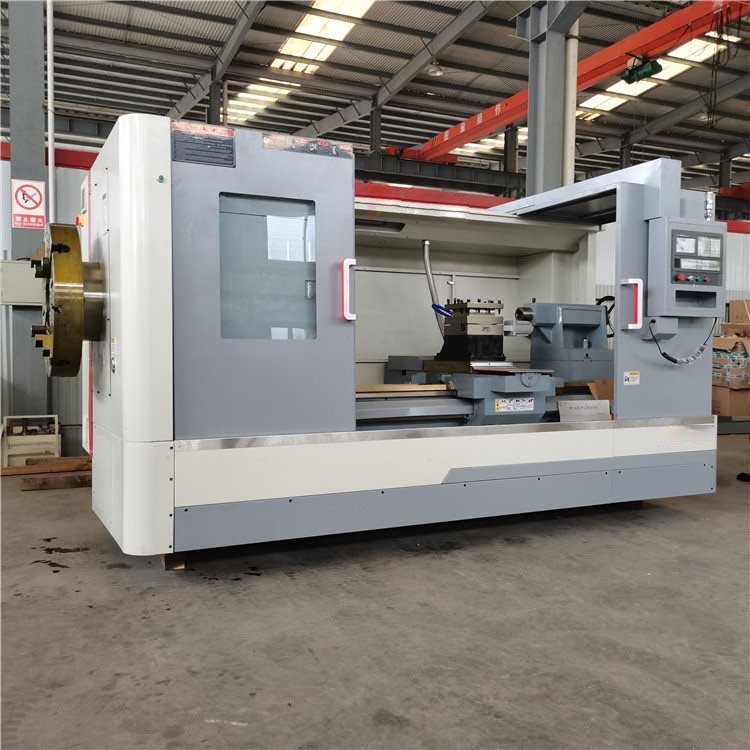

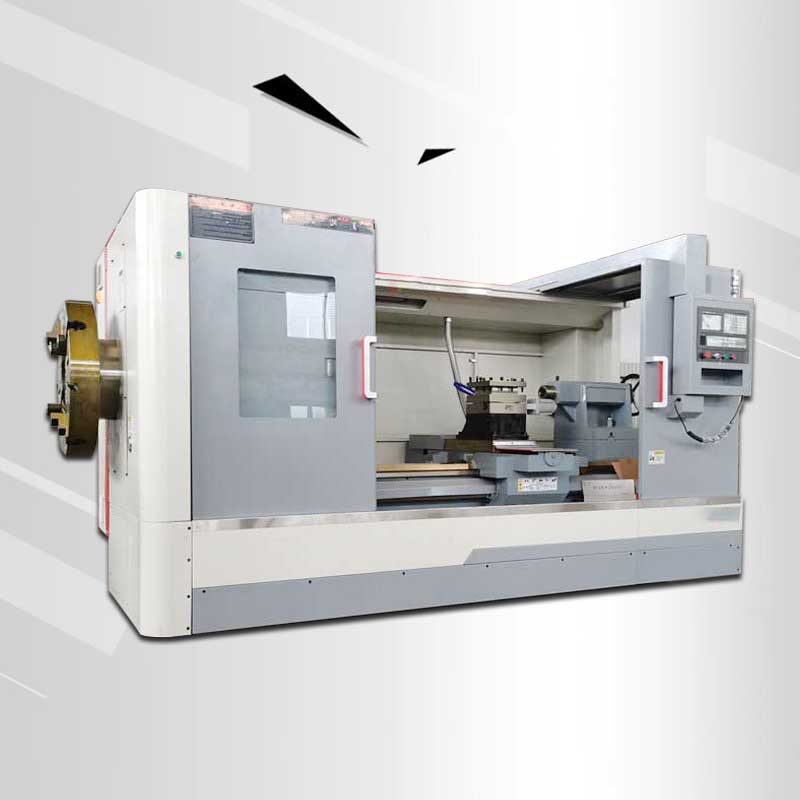

CNC Pipe Threading Oil Country Lathe Machine QK1327
CNC Pipe Threading Lathe QK1327
Maximum processing length: 2000mm
Maximum machining diameter: 630mm
Maximum bar diameter: 350mm
X/Z axis travel: 350/2000mm
CNC Pipe Lathe (CNC Double Chuck Oil and Gas Pipe Threading Lathe) is designed for turning and finishing of axial and tubular workpieces, is a two-axis continuous CNC pipe threading lathe. The pipe lathe is used to cut various kinds of threads for all kinds of drilling tools and oil casing, metric threads, inch threads and special pipe threads.
Product Specifications:
| Project | Unit | QK1327 | |
| Processing range | Maximum turning diameter of bed | mm | Φ630 |
| Maximum turning diameter on the skateboard | mm | Φ380 | |
| Maximum processing length | mm | 2000 | |
| Maximum machining diameter | mm | Φ630 | |
| Maximum bar diameter | mm | Φ350 | |
| Spindle | Spindle through hole diameter | mm | Φ270 |
| Spindle speed range | r/min | 22-85/85-342 | |
| Feed | X/Z axis travel | mm | 350/2000 |
| X/Z rapid traverse speed | m/min | 4/6 | |
| Tailstock | Tool holder form | / | Electric tool holder |
| number of stations | / | 4 | |
| Tool Specifications: Turning/Boring | mm | 32/40 | |
| Motor | Spindle motor power | kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | kw | 1.5/2.3 | |
Product Advantage:
ALHAAS CNC pipe threading lathe is designed for threading of pipe work in petroleum industry. It is efficient and of special purpose.

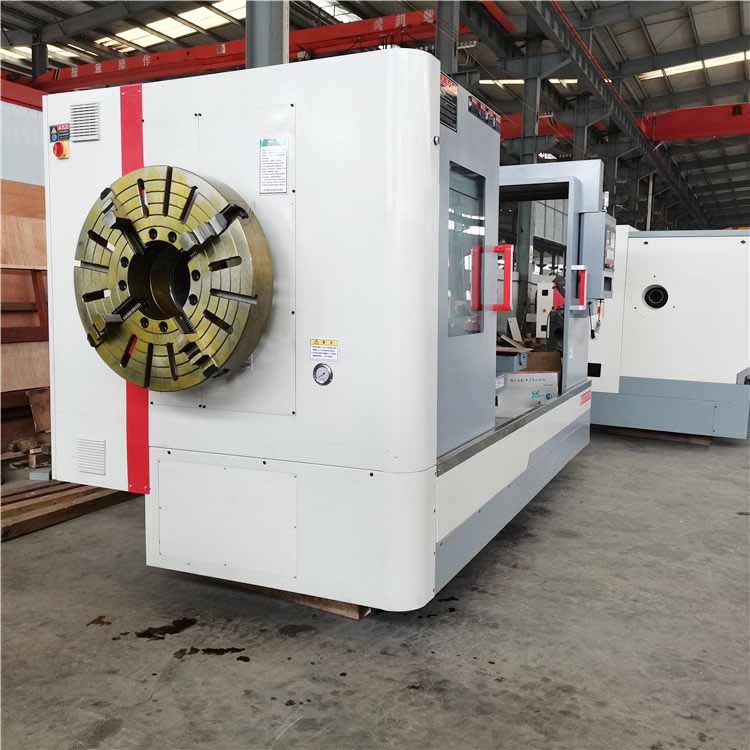

The lathe is equipped with front-and-rear mounted double chuck. That structure ensures steady and reliable clamping of long pipe work.
ALHAAS CNC lathe is equipped with comb type tool rest that holds compound tools which make it an ease for machine to performance external and internal turning, facing, threading, outside and inside chamfering operations on pipe or hoop.
In a word productivity and quality are enhanced and reliability is increased in a great deal.
