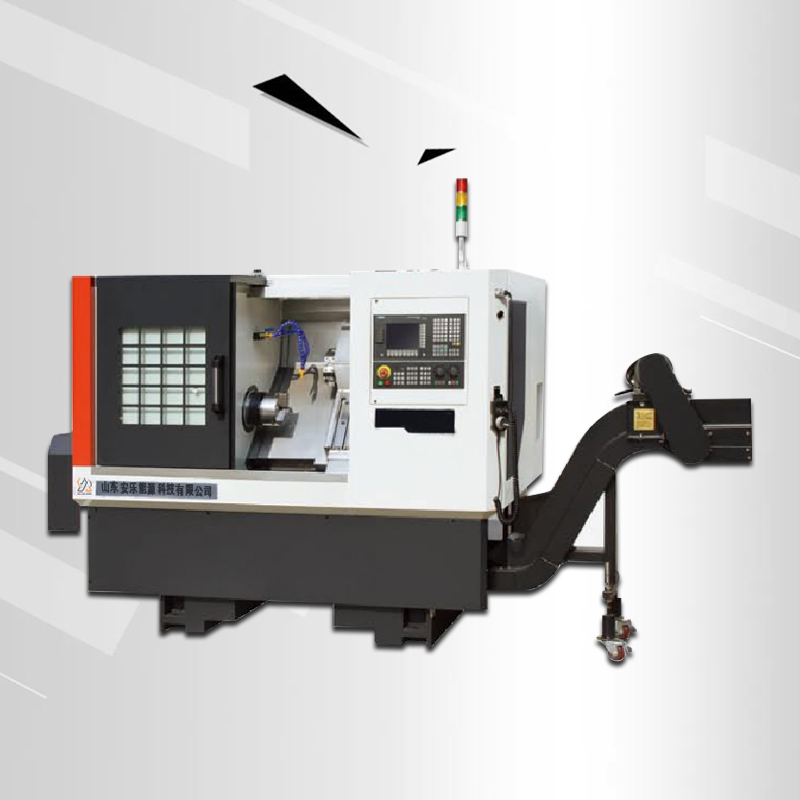

Slant Bed And Linear Guide Way CNC Lathe Machine TCK6340
ALHAAS CNC TCK6340 lathe machine:
Max. processing length: 200mm
X/Z axis travel: 400/300mm
Spindle bore: 48mm
Machine dimension(L×W×H): 2200×1530×1780
The ALHAAS CNC TCK6340 lathe machine is a full-featured CNC normal precision lathe designed and engineered using foreign advanced technology by SPMT.
Product Specifications：
| Specifications | Unit | TCK6340 |
| Max. swing over bed | mm | Φ400 |
| Swing over cross slide | mm | Φ140 |
| Max. processing length | mm | 200 |
| X/Z axis travel | mm | 400/300 |
| Spindle bore | mm | Φ48/Φ56 |
| Max. spindle speed | rpm | 4000/3500 |
| Spindle motor | kw | 3.5/5.5 |
| X/Z axis repeatability | mm | ±0.003 |
| Machine dimension(L×W×H) | mm | 2200×1530×1780 |
ALHAAS CNC TCK6340 Lathe Machine Product Advantages:
One-piece inclined bed. This ALHAAS CNC TCK6340 lathe machine design of the bed provides better stability, rigidity, vibration damping. The ALHAAS CNC TCK6340 lathe machine tilt bed also takes up less space, making it easy to remove chips and clean the machine.
HIWIN linear rolling guides allow you to successfully combine machining with high cutting feed rates at small depths of cut.
Revolving head on 6 positions with the electric drive.
Powerful spindle servo motor maintains constant power when cutting speed changes.
Specially designed forced lubrication system that allows processing at high speeds.
CNC system and feed drive from Siemens (as agreed with the customer).
Electronic handwheel motion control.
Slant bed cnc lathe Cooling system and halogen lighting of the working area.
Slant bed cnc lathe status indicator.
All electrical components are installed in a separate cabinet and equipped with safety automatics. Shnider or Siemens accessories.
Full enclosure of the working area in accordance with CE safety standards.
Before shipment, the machine undergoes laser calibration, cooling and lubrication system checks, and the machine is also tested by continuous operation for 48 hours.
As additional options, it is possible to install additional nodes.
