PRODUCT

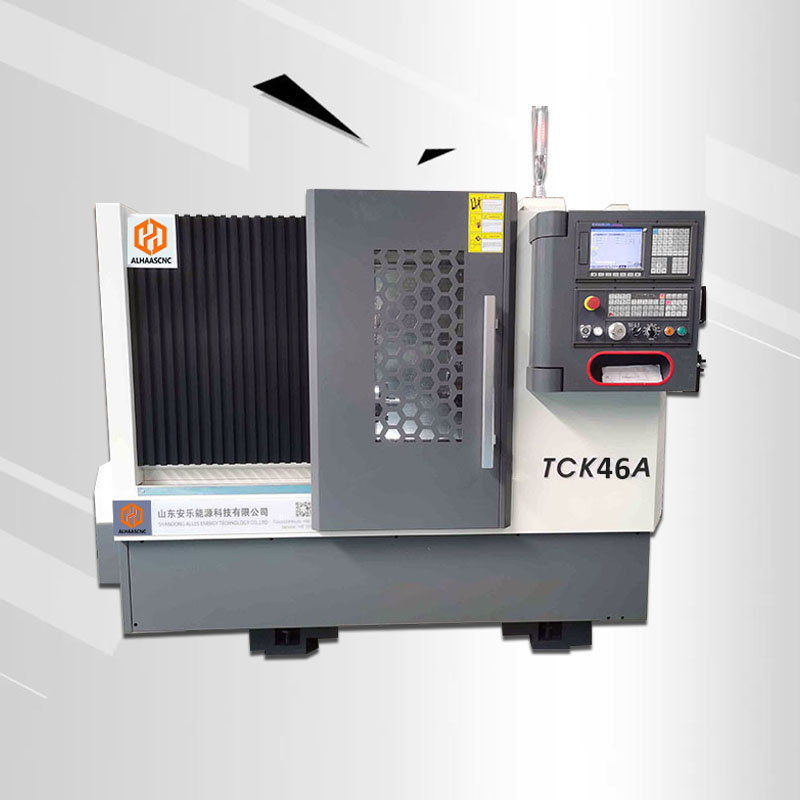

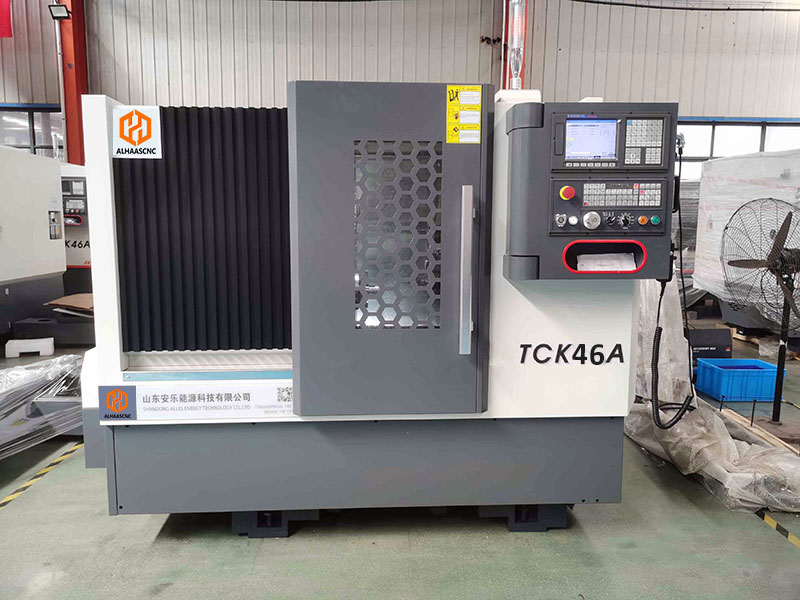

TCK46A CNC Turning Center Slant Bed CNC Lathe Machine
Product Attributes :
Maximum processing length: 350mm
The spindle motor power: 5.5kw
Spindle bore: 56mm
X/Z axis repeatability: ±0.003mm
Product Description
This ALHAAS CNC TCK46A CNC turning center machine is mainly used for processing various shaft, disk parts.
TCK46A slant bed CNC lathe Machine can turn various screw head, the surface of arc, cone, rotary body. Its higher speed could meet the higher speed processing requirement of ferrous and non-ferrous metal.
Product Specifications:
| Specifications | Unit | TCK46A |
| Max.swing over bed | mm | Φ460 |
| Max.swing over cross slide | mm | Φ170 |
| Maximum processing length | mm | 350 |
| The spindle motor power | kw | 5.5 |
| Highest spindle speed | rpm | 3500 |
| Spindle bore | mm | 56 |
TCK46A Slant Bed CNC Lathe Machine Features:
ALHAAS CNC TCK46A slant bed cnc lathe machine features:
30 degrees slant bed;
Higher rigidity cast iron;
Higher accuracy Taiwan HIWIN linear;
Integrated automatic lubrication system;
Removable hidden type hydraulic tailstock;
8 station hydraulic turret;
Screw pre-stretching structure.
