PRODUCT

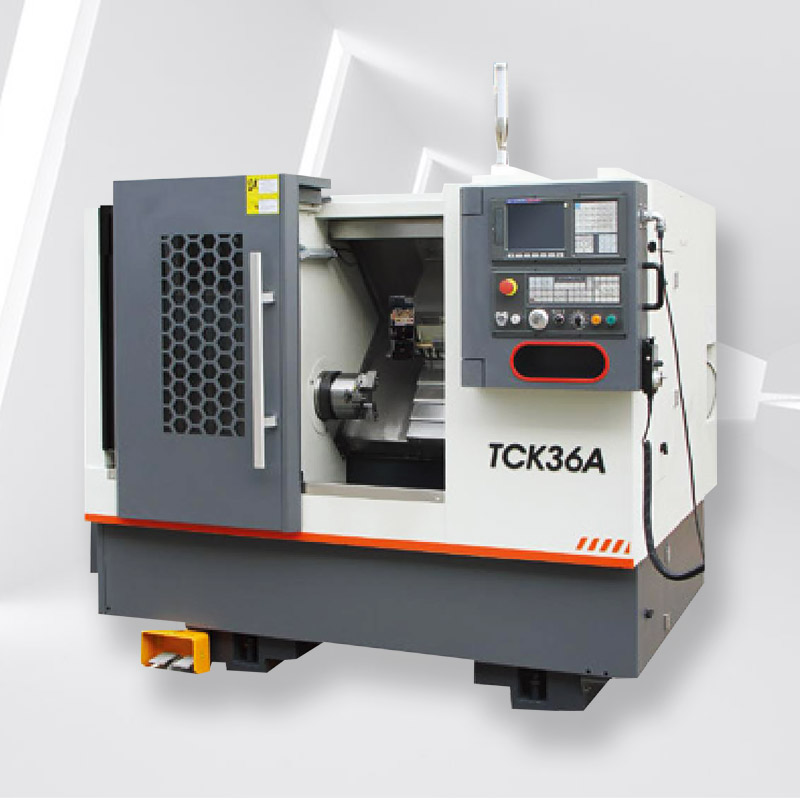

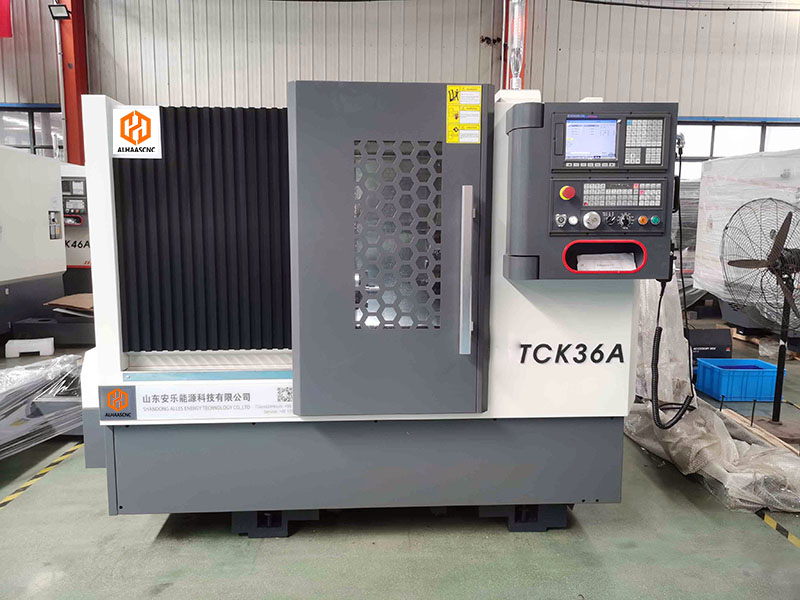

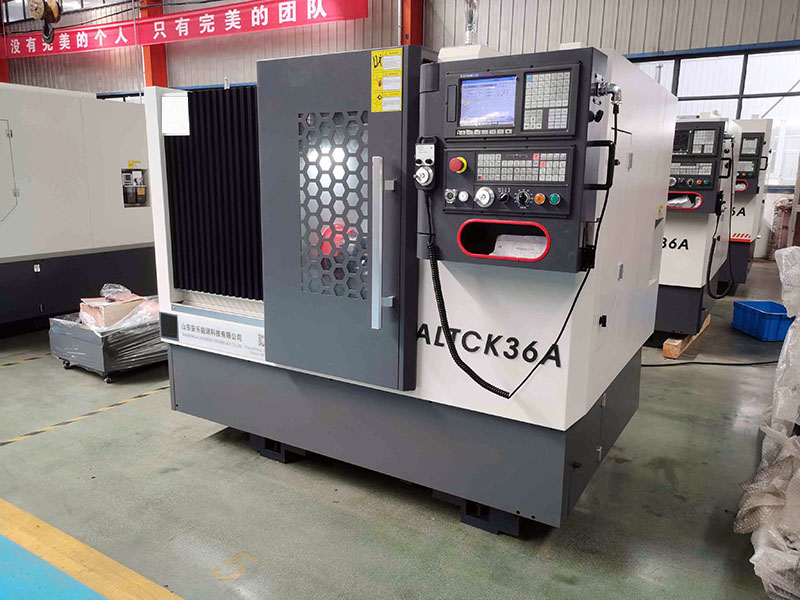

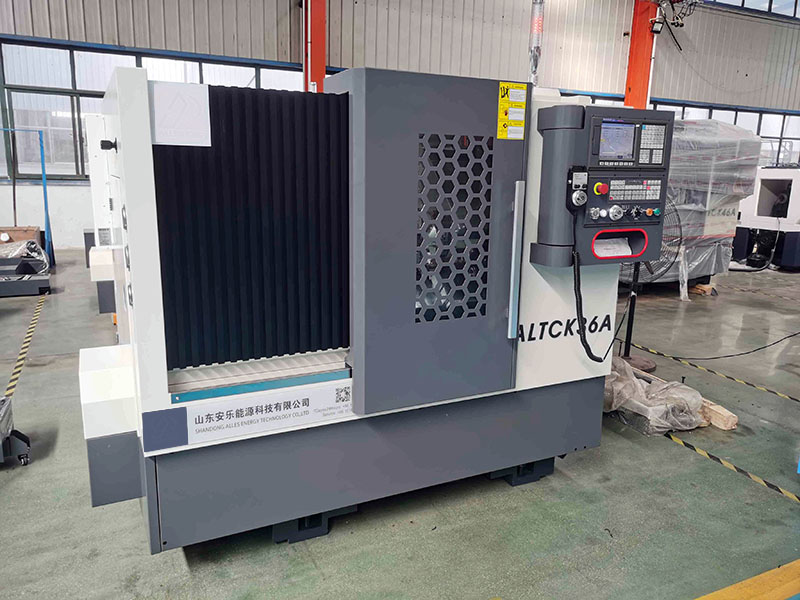

Slant Bed CNC Lathe Turning Machine TCK36A
Maximum processing length: 300mm
Highest spindle speed: 4000rpm
Spindle bore: 48mm
Net. weight (about): 2100kg
The ALHAAS CNC TCK36A lathe machine is a full-featured high precision CNC lathe designed and engineered using advanced foreign technology.
The design and controls are developed taking into account the requirements of ergonomics: it is convenient and easy to operate, easy to repair.
Product Specifications:
| Specifications | Unit | TCK36A |
| Max.swing over bed | mm | 360 |
| Max.swing over cross slide | mm | 170 |
| Maximum processing length | mm | 300 |
| Spindle bore | mm | 48 |
| The spindle motor power | kw | 3.7 |
| Machine dimension(L×W×H) | mm | 2100×1450×1700 |
| Net. weight (about) | kg | 2100 |
Product Advantages:
High Precision: Importing components from Japan and Taiwan with advanced assembly and inspection technology, realizing precision turning with μ level tolerance.
High speed: more than 4000 rpm for the spindle, fast travel 20 m/min, to achieve high processing speed.
High Efficiency: With the concept of technical innovation and application-oriented, and sustainable development, improve the overall performance to make the processing more efficient.
High Stability: High quality requirements and strict selection of all components to make the machine work more stable.
