1. Product Overview

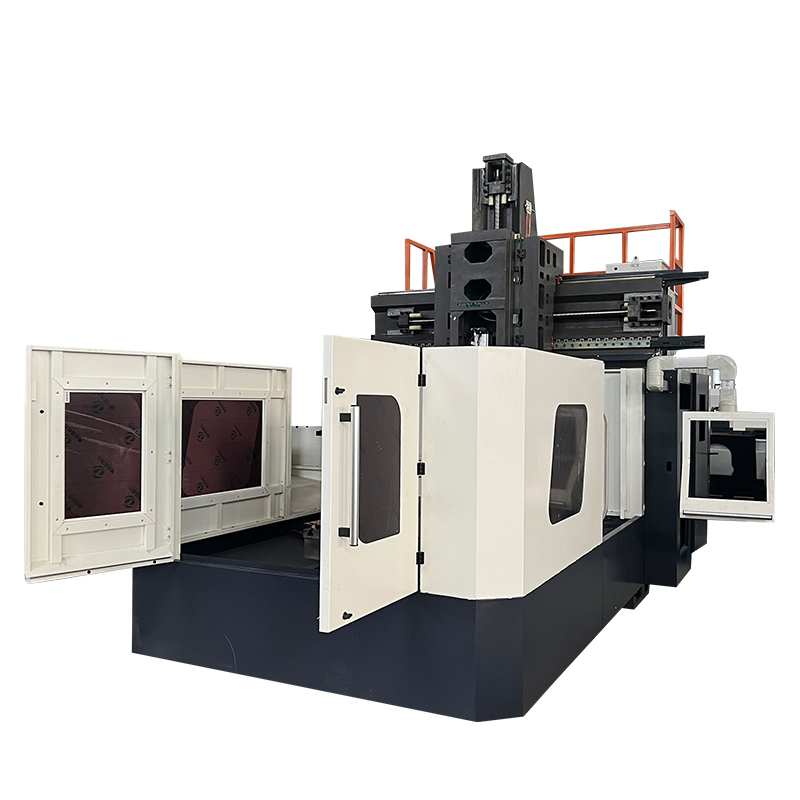

ALGMC1090 CNC Gantry Milling Machine is a high-performance CNC gantry machining center developed for medium and large-size, heavy-duty, and high-precision metal processing.

The machine adopts a rigid gantry structure, high-strength cast iron base, precision transmission system, and advanced CNC control technology, providing excellent stability, accuracy, and machining efficiency.

With a worktable size of 900 × 1000 mm, ALGMC1090 is designed for machining molds, mechanical components, industrial parts, and complex metal structures requiring high rigidity and stable precision.

It is mainly used for milling, drilling, boring, tapping, and complex contour machining of various metal components.

ALGMC1090 is an ideal machining solution for customers requiring strong cutting capability, high precision, and reliable long-term operation.

---

2. Main Advantages

① High Rigidity Structure

ALGMC1090 adopts a high-rigidity gantry structure designed for stable heavy-duty machining.

Features:

• Heavy-duty gantry structure with strong load capacity
• High-strength cast iron components improve overall stability
• Excellent vibration absorption during heavy cutting
• Maintains machining accuracy during continuous operation

Advantages:

✔ Strong cutting capability
✔ Better surface finish
✔ Improved machine durability
✔ Suitable for large and heavy workpieces

---

② Efficient Machining Capacity

ALGMC1090 provides excellent machining capability for medium and large-size components.

Features:

• 900 × 1000 mm worktable size
• Strong worktable loading capacity
• Suitable for molds and industrial components
• Reduces multiple setups during machining

Benefits:

✔ Higher production efficiency
✔ Shorter machining time
✔ Improved processing flexibility
✔ Suitable for complex components

---

③ High Precision Machining

ALGMC1090 is equipped with precision mechanical transmission components and advanced CNC control technology.

Features:

• High positioning accuracy
• Excellent repeatability
• Stable machining performance
• Accurate contour processing capability

Suitable for customers requiring:

• Precision mechanical parts
• Complex surfaces
• High-quality finished components

---

④ Powerful Cutting Performance

ALGMC1090 provides stable cutting performance for various metal materials.

Suitable for machining:

• Steel
• Stainless steel
• Cast iron
• Aluminum alloy
• Other metal materials

Advantages:

✔ High cutting efficiency
✔ Stable machining process
✔ Suitable for rough machining and finishing operations

---

3. Machine Structure Features

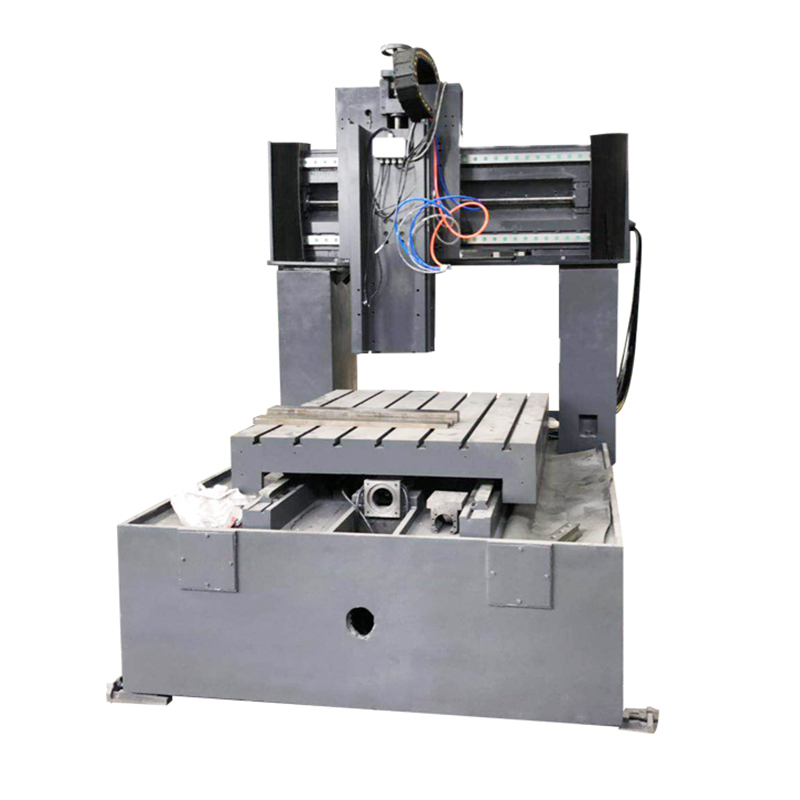

① Gantry Type Structure

Features:

• Fixed gantry structure
• Stable machining platform
• High overall rigidity
• Suitable for precision machining of large components

---

② Heavy-Duty Machine Bed

Features:

• High-quality cast iron structure
• Excellent vibration absorption
• Maintains long-term machining accuracy
• Suitable for continuous production

---

③ Precision Guideway System

Features:

• High positioning accuracy
• Smooth axis movement
• Reduced mechanical wear
• Improved machining stability

---

④ Stable Spindle System

Features:

• High torque output
• Strong cutting capability
• Low vibration operation
• Suitable for different machining materials

---

4. Main Functions

ALGMC1090 can complete multiple machining operations in one machine:

Milling

Applications:

• Plane milling
• Slot milling
• Profile milling
• Surface machining

---

Drilling

Applications:

• Precision hole machining
• Multiple hole processing

---

Boring

Applications:

• High precision internal hole machining

---

Tapping

Applications:

• Thread processing
• Improving production efficiency

---

Complex Surface Machining

Suitable for:

• Mold surfaces
• Precision contours
• Special-shaped components

---

5. Application Industries

① Mold & Die Industry

Applications:

• Plastic injection molds
• Die casting molds
• Stamping dies
• Mold plates

Advantages:

✔ High machining accuracy
✔ Stable surface finishing performance
✔ Suitable for complex mold structures

---

② Automotive Industry

Applications:

• Automotive molds
• Fixtures
• Inspection tools
• Automotive components

Suitable for:

• Automotive suppliers
• Precision component manufacturers

---

③ Aerospace Industry

Applications:

• Aircraft structural components
• Aluminum parts
• Precision aerospace components

Advantages:

✔ Stable machining accuracy
✔ Suitable for complex components

---

④ Heavy Machinery Industry

Applications:

• Machine frames
• Hydraulic components
• Mechanical parts
• Industrial equipment components

---

⑤ General Manufacturing Industry

Applications:

• Precision components
• Equipment parts
• Metal structures
• Custom mechanical parts

---

6. Typical Workpieces

ALGMC1090 is suitable for machining:

• Medium and large molds
• Mold plates
• Machine bases
• Structural components
• Automotive tooling
• Aerospace parts
• Hydraulic components
• Industrial equipment parts

---

7. Suitable Customers

ALGMC1090 is ideal for:

✔ Mold manufacturers
✔ Automotive component suppliers
✔ Aerospace parts manufacturers
✔ Mechanical processing factories
✔ Precision machining workshops
✔ Industrial equipment manufacturers

---

8. Why Choose ALGMC1090?

✔ High rigidity gantry structure for stable machining

✔ Strong cutting capability for various metal materials

✔ High precision and excellent repeatability

✔ Large machining range with compact machine structure

✔ Multi-function machining capability

✔ Reduced workpiece repositioning

✔ Improved production efficiency

✔ Reliable solution for precision metal processing

---

9. Product Specifications

---

Main Features of ALGMC1090



✔ High rigidity gantry structure
✔ Worktable load capacity up to 2000 kg
✔ 900 × 1000 mm working area
✔ High positioning accuracy ±0.01/300 mm
✔ Suitable for molds, mechanical parts, and industrial components
✔ Stable performance for continuous machining
✔ Excellent solution for precision and heavy-duty metal processing
