1. Product Overview

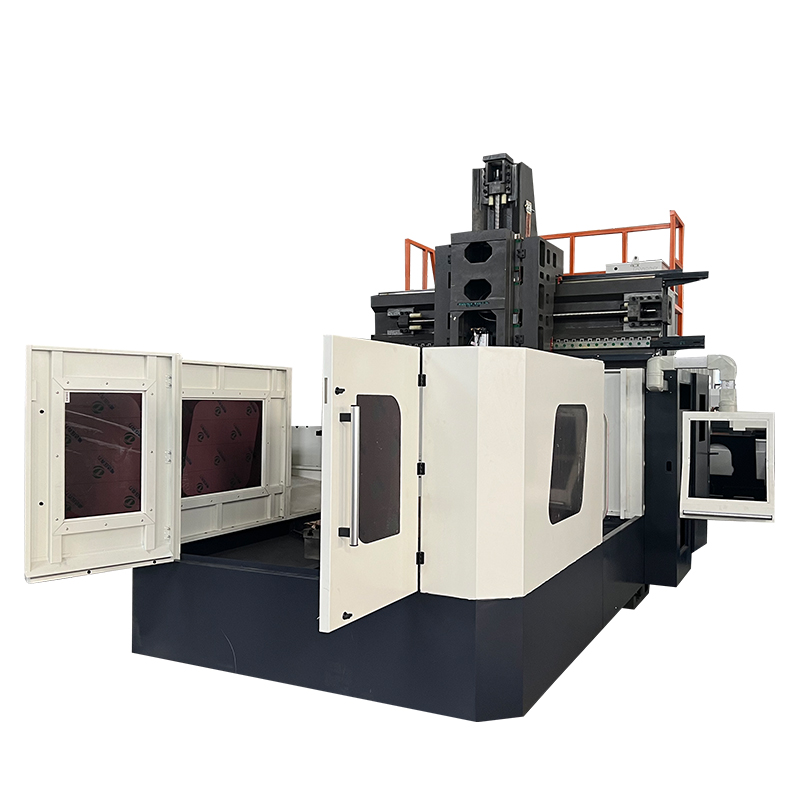

ALGMC1012 CNC Gantry Milling Machine is a high-performance CNC gantry machining center developed for large-size, heavy-duty, and high-precision metal processing.
The machine adopts a rigid gantry structure, high-strength cast iron base, precision transmission system, and advanced CNC control technology, providing excellent stability, accuracy, and machining efficiency.
It is mainly used for milling, drilling, boring, tapping, and complex contour machining of large metal components.
ALGMC1012 is an ideal machining solution for industries requiring large working areas, strong cutting capability, and stable long-term operation.
2. Main Advantages
① High Rigidity Structure
Heavy-duty gantry structure with strong load capacity
High-strength cast iron components improve stability
Excellent vibration absorption during heavy cutting
Ensures machining accuracy under continuous operation
Advantages:
✔ Strong cutting capability
✔ Better surface finish
✔ Longer machine service life
✔ Suitable for large and heavy workpieces
② Large Machining Capacity
ALGMC1012 is designed for machining oversized and complex components.
Features:
Large working area
Strong worktable loading capacity
Suitable for large molds and industrial parts
Reduces the need for multiple setups
Benefits:
✔ Improve production efficiency
✔ Reduce processing time
✔ Handle complex large components easily
③ High Precision Machining
The machine adopts precision mechanical transmission components and advanced CNC technology.
Features:
High positioning accuracy
Excellent repeatability
Stable machining performance
Precise contour processing capability
Suitable for customers requiring:
Precision parts
Complex surfaces
High-quality finished products
④ Powerful Cutting Performance
ALGMC1012 provides excellent performance for heavy machining applications.
Suitable for machining:
Steel
Stainless steel
Cast iron
Aluminum alloy
Other metal materials
Advantages:
✔ High cutting efficiency
✔ Stable machining process
✔ Suitable for rough machining and finishing
3. Machine Structure Features

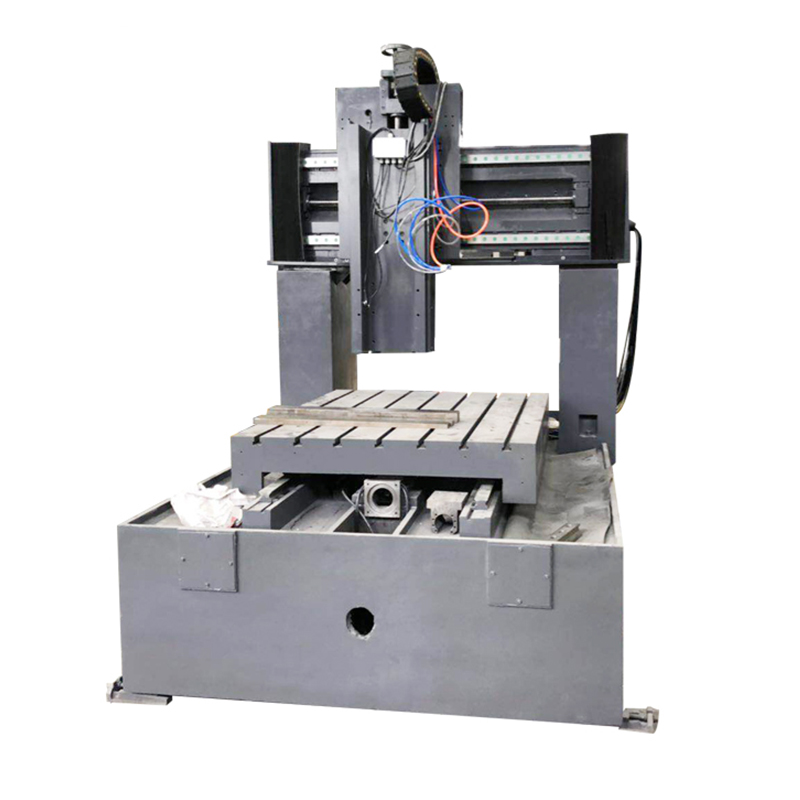

① Gantry Type Structure
Fixed gantry structure
Stable machining platform
High overall rigidity
Suitable for large components
② Heavy-Duty Machine Bed
High-quality cast iron structure
Excellent shock absorption
Maintains long-term accuracy
Suitable for continuous production
③ Precision Guideway System
Features:
High positioning accuracy
Smooth movement
Reduced mechanical wear
Improved machining stability
④ Stable Spindle System
Features:
High torque output
Strong cutting capability
Low vibration operation
Suitable for various materials
4. Main Functions
ALGMC1012 can complete multiple machining processes in one machine:
Milling
Plane milling
Slot milling
Profile milling
Surface machining
Drilling
Precision hole machining
Multiple hole processing
Boring
High precision internal hole machining
Tapping
Thread processing
Improve production efficiency
Complex Surface Machining
Suitable for:
Mold surfaces
Precision contours
Special-shaped components
5. Application Industries
① Mold & Die Industry
Applications:
Plastic injection molds
Die casting molds
Stamping dies
Large mold bases
Advantages:
✔ Large machining range
✔ High precision surface processing
✔ Suitable for complex mold structures
② Automotive Industry
Applications:
Automotive molds
Fixtures
Inspection tools
Large structural components
Suitable for:
Automotive suppliers
Tier 1 / Tier 2 manufacturers
③ Aerospace Industry
Applications:
Aircraft structural parts
Aluminum components
Precision aerospace parts
Advantages:
✔ Stable precision
✔ Suitable for complex components
④ Heavy Machinery Industry
Applications:
Machine frames
Hydraulic components
Large mechanical parts
Industrial equipment components
⑤ Energy Equipment Industry
Applications:
Wind power components
Pump bodies
Large metal structures
Special equipment parts
6. Typical Workpieces
ALGMC1012 is suitable for machining:
Large molds
Die plates
Machine bases
Structural parts
Automotive tooling
Aerospace components
Hydraulic parts
Industrial equipment components
7. Suitable Customers
ALGMC1012 is ideal for:
✔ Mold manufacturers
✔ Automotive suppliers
✔ Aerospace component manufacturers
✔ Heavy equipment manufacturers
✔ Precision machining factories
✔ Large metal processing workshops
8. Why Choose ALGMC1012?
✔ Large machining capability for oversized parts
✔ High rigidity structure for heavy cutting
✔ Stable accuracy for long-term production
✔ Multi-function machining capability
✔ Reduced workpiece repositioning
✔ Improved production efficiency
✔ Lower labor cost
✔ Reliable solution for large component manufacturing
Product Specifications:
| Item | Unit | ALGMC1012 |
| Worktable | Worktable load (KG) | 2000 |
| Worktable size (mm) | 1000*1200 | |
| T-slot width | 18mm | |
| Dimensions | L*W*H（m）(About) | 3.4*2.3*2.6~2.9（Highest） |
| X.Y.Z Axis | Travel (mm) | 1000*1200*450 |
| X.Y axis fast moving speed(no load)( mm/min) | 10000 | |
| Z axis fast moving speed(mm/min) | 7000 | |
| Fastest processing speed(mm/min) | 6000 | |
| Positioning accuracy(mm) | +-0.01/300 | |
| Re-positioning accuracy(mm) | +-0.01 |
