ALCK6150X1500 CNC Lathe Introduction

I. Product Overview

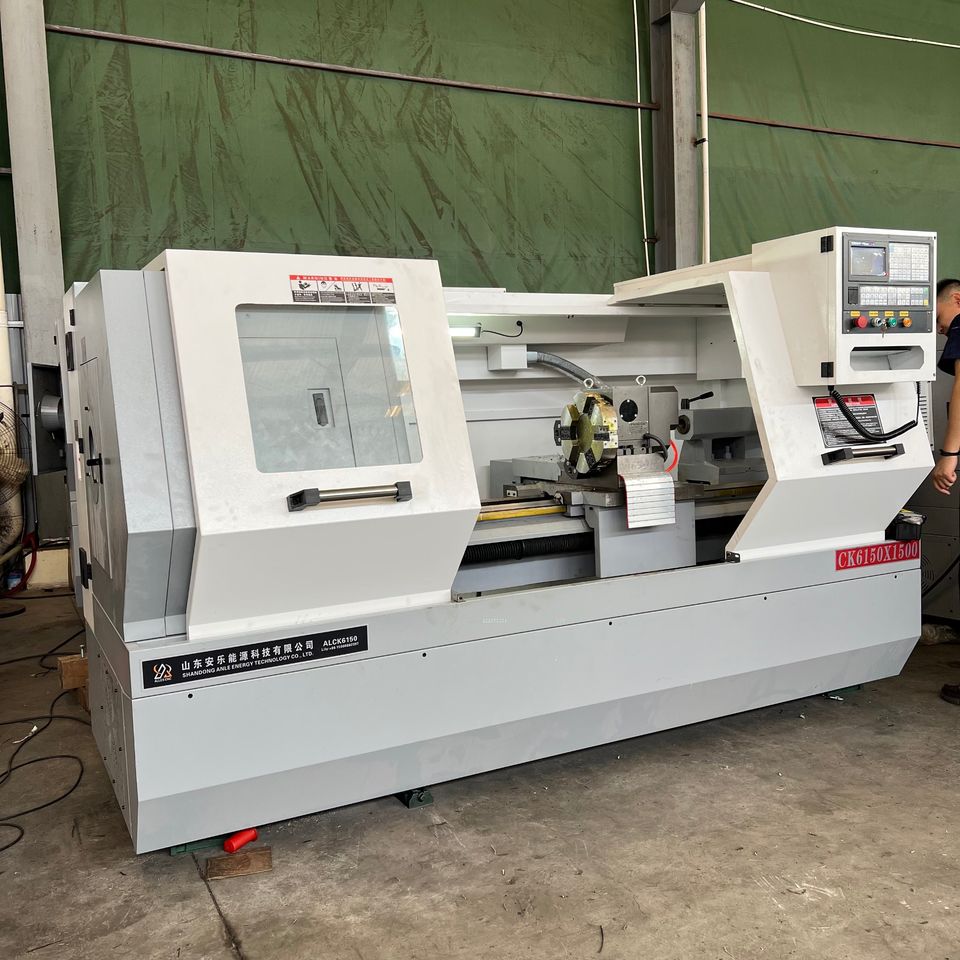

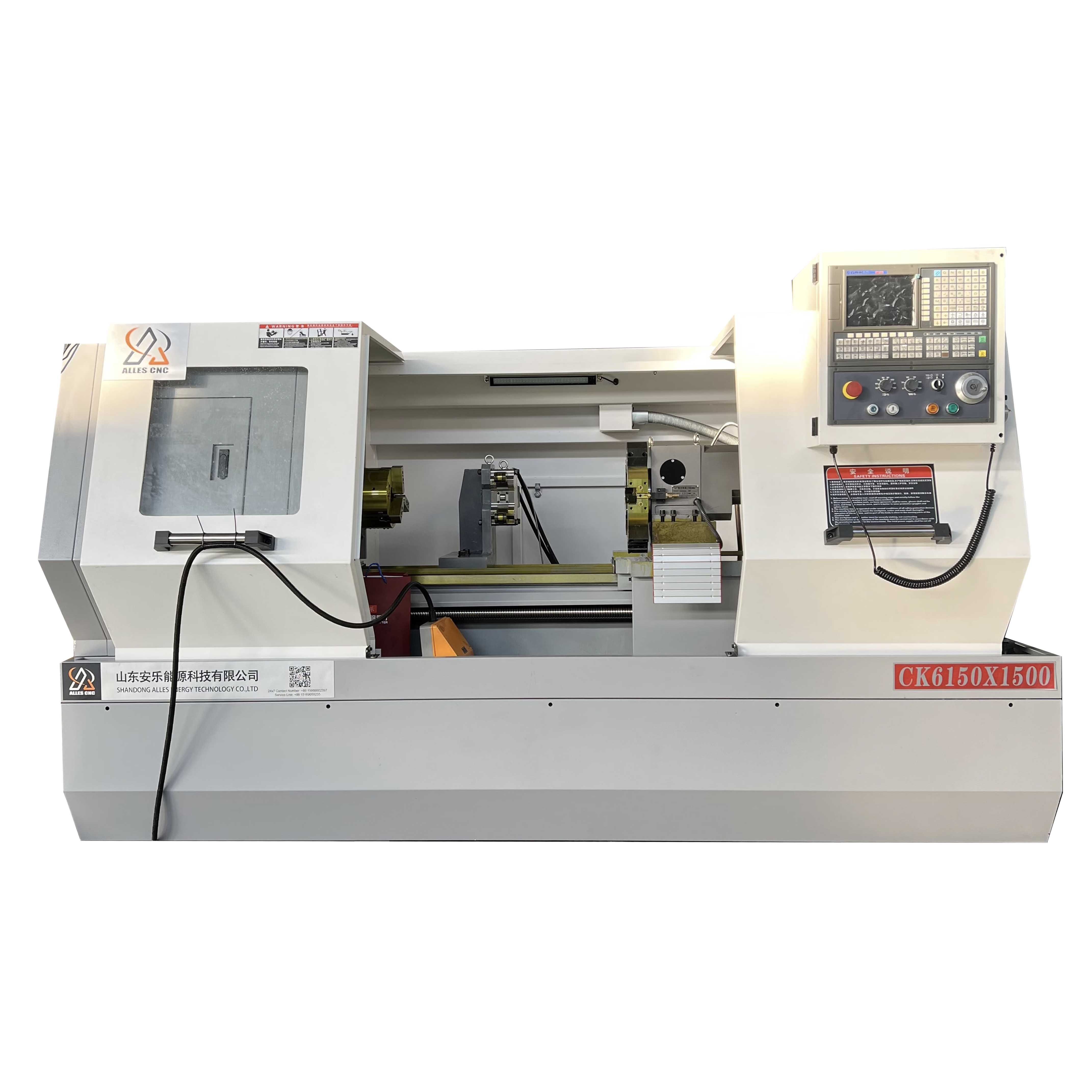

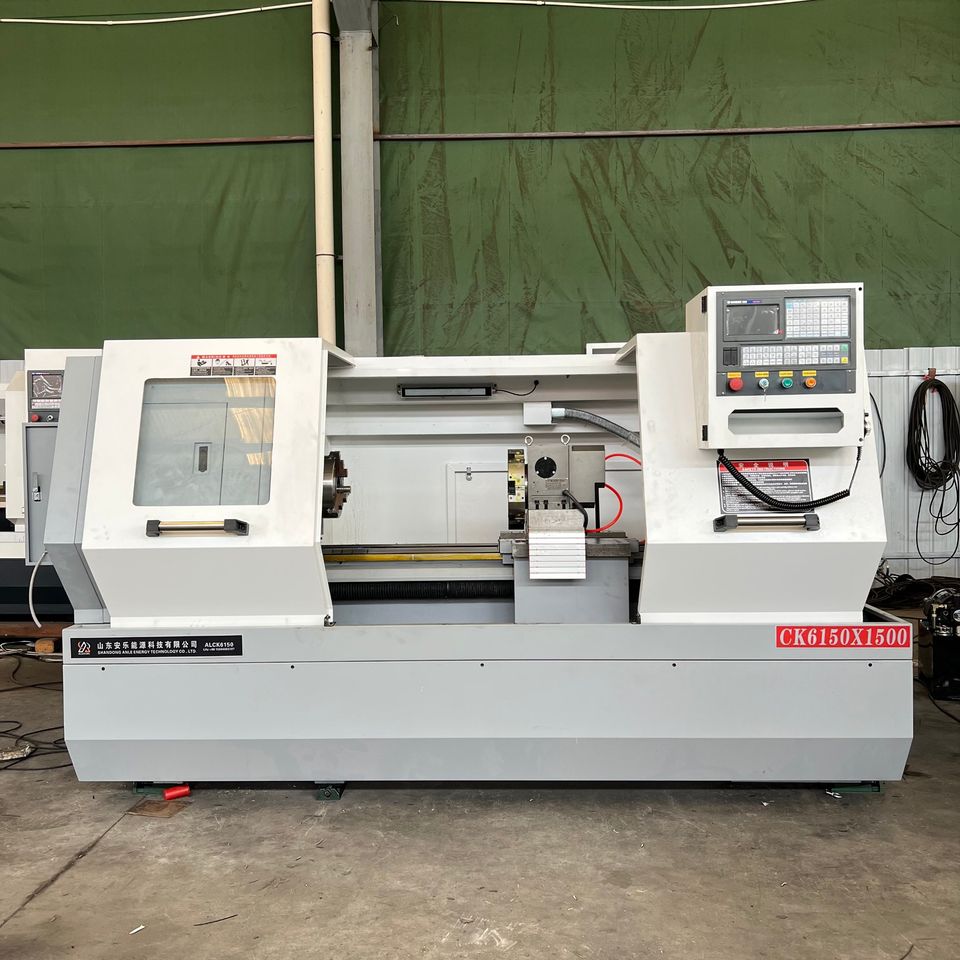

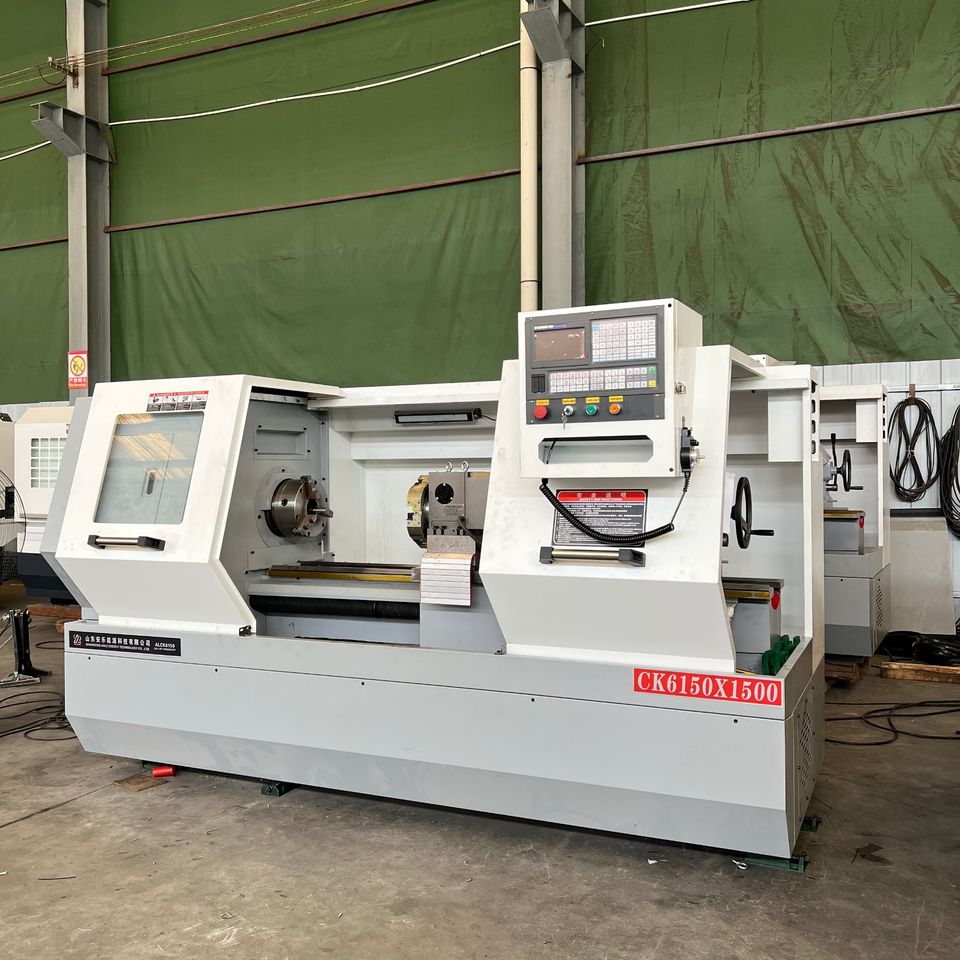

The ALCK6150X1500 CNC Lathe is a high-performance flat bed CNC turning machine designed for precision machining of various metal components, including shafts, discs, sleeves, flanges, and other mechanical parts.

Equipped with a high-rigidity machine structure and advanced CNC control system, the ALCK6150X1500 provides excellent machining accuracy, stability, and production efficiency. The machine is capable of performing multiple turning operations, including external diameter turning, internal boring, end face machining, taper turning, grooving, and thread cutting.

With a maximum processing length of 1500 mm and a maximum cutting diameter of Φ500 mm, this CNC lathe is especially suitable for machining medium and long workpieces, widely used in mechanical manufacturing, automotive parts production, and precision machining industries.

II. Product Specifications

Item	Unit	CK6150x1500
Max swing over bed	mm	Φ500
Maximum swing over slide	mm	Φ290
Maximum cutting diameter	mm	Φ500
Maximum processing length	mm	1500
X/Z axis maximum stroke	mm	1500
X/Z axis minimum displacement unit	mm	0.001
Spindle hole diameter	mm	Φ82
Spindle speed limit	rpm	150-2000 / 60-1600
Main motor power (frequency conversion)	kW	7.5
X/Z axis rapid traverse speed	m/min	6/8

III. Main Features

1. High Rigidity Machine Structure

The ALCK6150X1500 adopts a high-strength cast iron bed structure with optimized internal rib design, providing excellent rigidity and vibration resistance during heavy cutting operations.

Advantages:

• Stable cutting performance
• Reduced machining vibration
• Improved surface finish quality
• Extended tool life
• Suitable for continuous production

The rigid machine structure ensures reliable performance when machining steel, stainless steel, alloy steel, and other metal materials.

2. High Precision CNC Machining

The advanced CNC control system enables accurate and efficient automatic machining.

The machine can complete various machining processes:

• External diameter turning
• Internal boring
• End face machining
• Taper turning
• Thread cutting
• Grooving
• Step shaft machining

With a minimum displacement unit of 0.001 mm, the ALCK6150X1500 ensures high machining accuracy and consistent product quality.

3. Powerful Spindle System

The ALCK6150X1500 is equipped with a large spindle hole diameter of Φ82 mm, providing strong machining capability and stable cutting performance.

Advantages:

• Suitable for larger diameter workpieces
• Stable spindle operation
• Strong cutting ability
• Suitable for long-term continuous machining

It is widely used for processing:

• Long shafts
• Flanges
• Sleeves
• Hydraulic components
• Mechanical parts

4. Efficient Long Workpiece Machining

With a maximum processing length of 1500 mm, the ALCK6150X1500 is designed for machining longer workpieces compared with standard CNC lathes.

Applications include:

• Long shafts
• Transmission shafts
• Roller components
• Mechanical support parts

The extended machining range improves production flexibility and expands the application possibilities.

5. Easy Operation and Maintenance

The machine features a user-friendly CNC operation interface and practical structural design.

Benefits:

• Simple operation
• Convenient programming
• Easy maintenance
• Reduced operating costs

It is an ideal solution for manufacturers upgrading from conventional lathes to CNC automated production.

IV. Product Advantages

1. Excellent Cost Performance

The ALCK6150X1500 provides reliable machining performance with competitive investment costs compared with imported CNC lathe brands.

Advantages:

• Lower equipment investment
• Shorter delivery time
• Easier maintenance
• Reliable technical support

2. Wide Application Range

The machine is suitable for:

• Precision machining workshops
• Mechanical manufacturing factories
• Automotive parts manufacturers
• Hydraulic component manufacturers
• Metal processing companies

3. Flexible Configuration Options

The machine can be customized according to customer requirements:

• FANUC CNC system
• Siemens CNC system
• Mitsubishi CNC system
• Hydraulic chuck
• Automatic chip conveyor
• Automatic bar feeder
• Different tool holder configurations

V. Application Industries

1. Automotive Industry

Applications:

• Drive shafts
• Transmission components
• Wheel hubs
• Flanges
• Brake system parts

2. Mechanical Manufacturing Industry

Applications:

• Long mechanical shafts
• Gear shafts
• Machine components
• Hydraulic cylinder parts
• Precision mechanical components

3. Oil & Energy Industry

Applications:

• Valve components
• Pipe fittings
• Pump shafts
• Connecting shafts

4. Hydraulic Equipment Industry

Applications:

• Hydraulic cylinder rods
• Hydraulic sleeves
• Precision hydraulic components

5. General Metal Processing Industry

Applications:

• Custom mechanical parts
• Industrial components
• Precision turning parts

VI. Applicable Materials

The ALCK6150X1500 CNC Lathe can process various materials, including:

Ferrous Metals:

• Carbon steel
• Alloy steel
• Cast iron

Non-ferrous Metals:

• Aluminum alloy
• Copper
• Brass

Special Materials:

• Stainless steel
• Titanium alloy (with suitable cutting tools and machining parameters)

VII. Typical Machined Parts

Part Type	Machining Operations
Long shaft parts	External turning, grooving, threading
Flanges	Outer diameter turning, end face machining, drilling
Sleeves	Internal and external turning
Hydraulic components	Precision boring and turning
Transmission shafts	High-precision turning
Industrial parts	Batch production machining

VIII. Customer Value

The ALCK6150X1500 CNC Lathe helps customers achieve:

✔ Higher production efficiency
✔ Reduced labor dependence
✔ Improved machining consistency
✔ Expanded production capability for long workpieces
✔ Easy upgrade from conventional lathes
✔ Faster return on investment

ALCK6150X1500 CNC Lathe is a reliable, high-precision, and cost-effective CNC turning solution designed for long shaft machining, mechanical manufacturing, automotive components, and precision machining applications.
