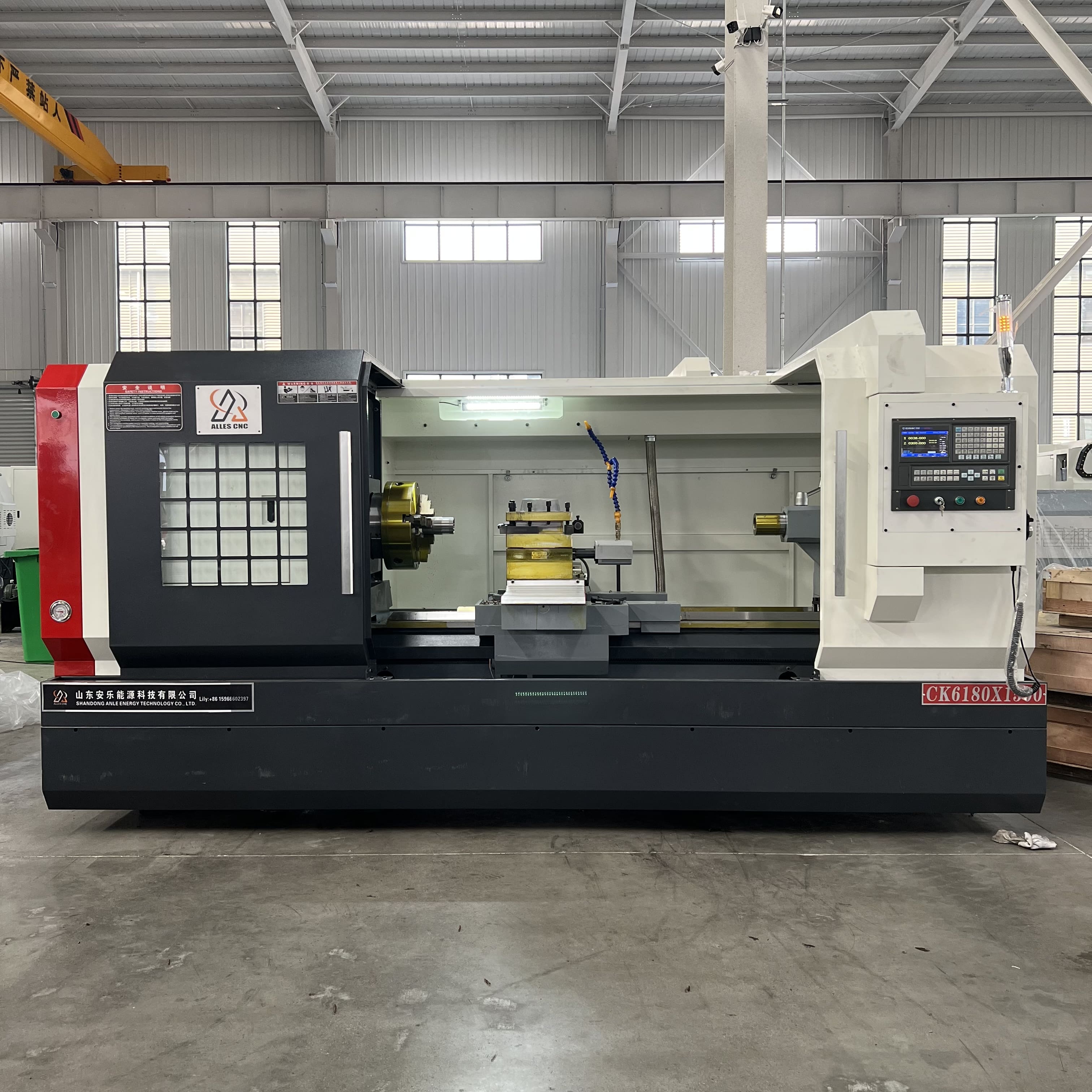

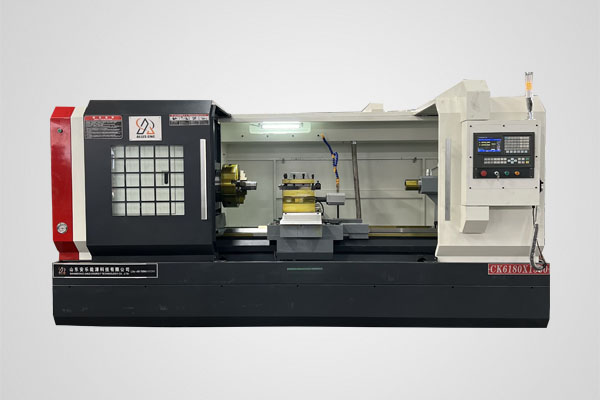

Heavy Duty CNC Lathe Machine ALCK6180 for Large Metal Turning
The ALCK6180 CNC lathe is a heavy-duty flat bed CNC turning machine specially designed for machining large shaft parts, discs, cylinders, and various heavy metal components. Featuring a rigid machine structure, stable spindle performance, and excellent machining precision, this machine is widely used in machinery manufacturing, automotive parts production, mining equipment, petroleum industry, agricultural machinery, shipbuilding, and general metalworking industries.
Product Introduction
The ALCK6180 CNC lathe is a heavy-duty flat bed CNC turning machine specially designed for machining large shaft parts, discs, cylinders, and various heavy metal components. Featuring a rigid machine structure, stable spindle performance, and excellent machining precision, this machine is widely used in machinery manufacturing, automotive parts production, mining equipment, petroleum industry, agricultural machinery, shipbuilding, and general metalworking industries.
The machine supports rough and finish machining of steel, cast iron, alloy steel, stainless steel, and other metal materials, making it an ideal solution for medium and large workpiece turning applications.
Product Features
- Heavy-duty cast iron bed with high rigidity
- Stable spindle system with strong cutting force
- High precision ball screw transmission structure
- Reliable CNC control system performance
- Suitable for large diameter and long shaft machining
- Easy operation and convenient maintenance
- High machining precision and smooth surface finish
- Suitable for continuous industrial production
Equipment Specifications
| Project | Content | Unit | CK6180×1500 |
|---|---|---|---|
| Processing Range | Maximum turning diameter of bed | mm | Φ800 |
| Maximum turning diameter on skateboard | mm | Φ440 | |
| Maximum processing length | mm | 1500 | |
| Maximum machining diameter | mm | Φ800 | |
| Maximum bar diameter | mm | Φ440 | |
| Spindle | Spindle hole diameter | mm | Φ105 |
| Spindle speed range | r/min | 125-350 | |
| Feed | X/Z axis travel | mm | 420/1500 |
| X/Z axis screw diameter × pitch | mm | φ3208 / φ5010 | |
| X/Z fast moving speed | m/min | 4/6 | |
| Tool Holder | Number of stations | / | 4 |
| Tailstock | Sleeve diameter/stroke | mm | Φ100/250 |
| Sleeve drive form | / | Manual | |
| Tailstock movement form | / | Manual | |
| Motor | Spindle motor power | Kw | 11 |
| Spindle motor torque | NM | 48 | |
| X/Z motor power | Kw | 1.5/2.3 | |
| X/Z motor torque | NM | 10/15 | |
| Cooling pump motor power | W | 125 | |
| Other | Machine weight | kg | 4500 |
| Machine size: length×width×height | mm | 3990×1900×2000 |
Detailed Product Description
High Rigidity Machine Structure
The ALCK6180 adopts a heavy-duty cast iron flat bed structure with reinforced internal support ribs, providing excellent rigidity, shock resistance, and long-term machining stability. It performs reliably during heavy cutting operations and long production cycles.
Stable and Powerful Spindle System
The machine is equipped with a large spindle bore and strong spindle motor, delivering stable torque output and reliable turning performance. It is especially suitable for heavy-duty shaft and flange machining.
Precision Feeding Performance
The X and Z axes use precision screw transmission systems, ensuring smooth movement, accurate positioning, and high repeatability. Fast travel speed improves production efficiency.
Efficient Tool Holder Design
The 4-station tool holder allows quick tool indexing and efficient multi-process machining, reducing manual intervention and improving productivity.

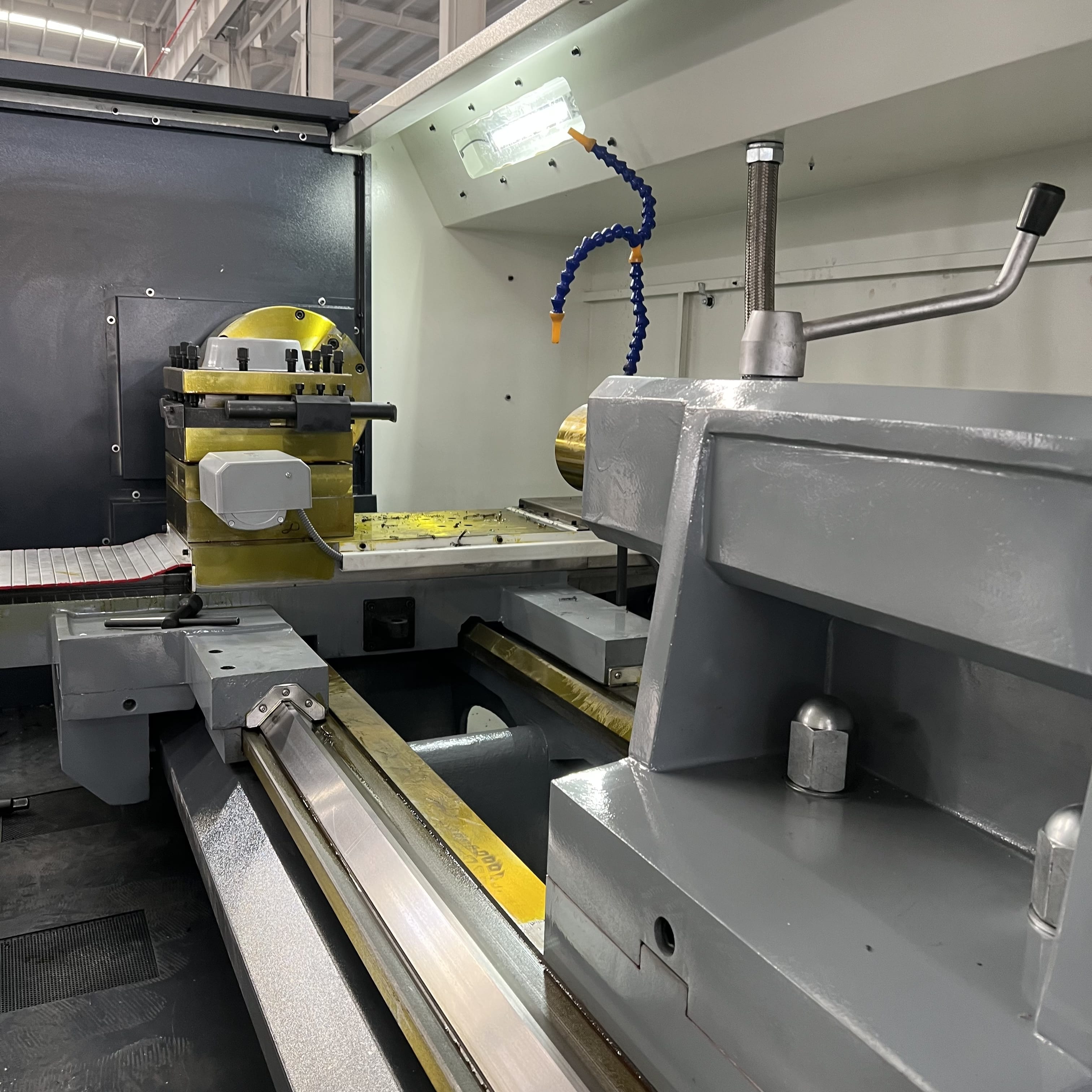

Reliable Tailstock Support
The manual tailstock with large sleeve diameter provides stable support for long shaft workpieces, improving turning accuracy and reducing vibration during machining.
Wide Industrial Applications
The ALCK6180 CNC lathe is suitable for processing:
- Large shafts
- Hydraulic cylinders
- Pipe fittings
- Flanges
- Heavy machine parts
- Rollers
- Mining equipment parts
- Agricultural machinery components
- Transmission parts
Easy Maintenance Design
The machine is designed for convenient daily maintenance with simple structure, centralized lubrication system, and durable components, helping reduce downtime and operating costs.
Application Industries
- Machinery manufacturing
- Automotive parts production
- Mining machinery industry
- Petroleum equipment manufacturing
- Agricultural machinery industry
- Shipbuilding industry
- Steel fabrication workshops
- General engineering workshops
Why Choose ALCK6180 CNC Lathe?
- Strong heavy-duty cutting capability
- High rigidity and stable performance
- Accurate and efficient machining
- Reliable machine quality
- Competitive factory direct price
- Professional technical support
- Rich export experience worldwide
The ALCK6180 CNC lathe is an excellent choice for customers looking for a durable, precise, and cost-effective CNC turning machine for medium and large metal workpieces.
